9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
3.129
COOLING SYSTEM

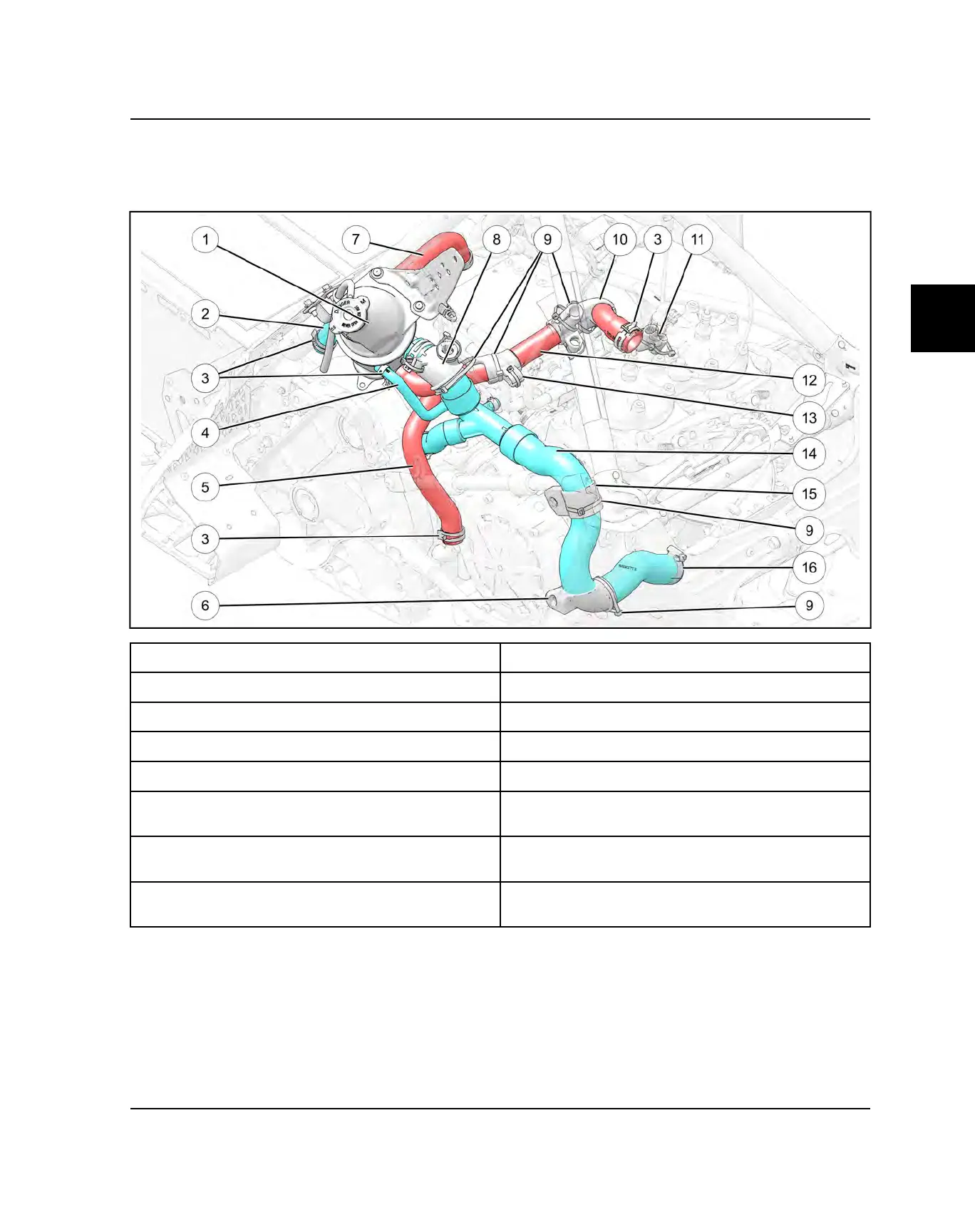

COOLING SYSTEM ASSEMBLY VIEW
Coolant hoses are marked with alignment marks to aid proper hose routing when servicing the coolant system.
q
Coolant Bottle
o
Panduit Strap
w
Hose, Tunnel / Bottle
a
Hose / Throttle Cable Support
e
Springband Clamp
s
Fuel / Oil Line Support
r
Hose, Throttlebody / Coolant Bottle
d
Hose, Bypass
t
Hose, Front Cooler Feed
f
Stator Wire Support
y
Hose Support
Mounted on recoil housing
g
Asm - Hose, Coolant Bottle / Engine
u
Hose, Bottle / Tunnel
h
Hose Support
Mounted to upper crankcase half
i
Hose / Electrical Wires Support
j
Hose Clamp
5 ft-lbs (7 N·m)
ENGINE / COOLING / EXHAUST
