ENGINE ASSEMBLY - TOP END
PISTON INSTALLATION

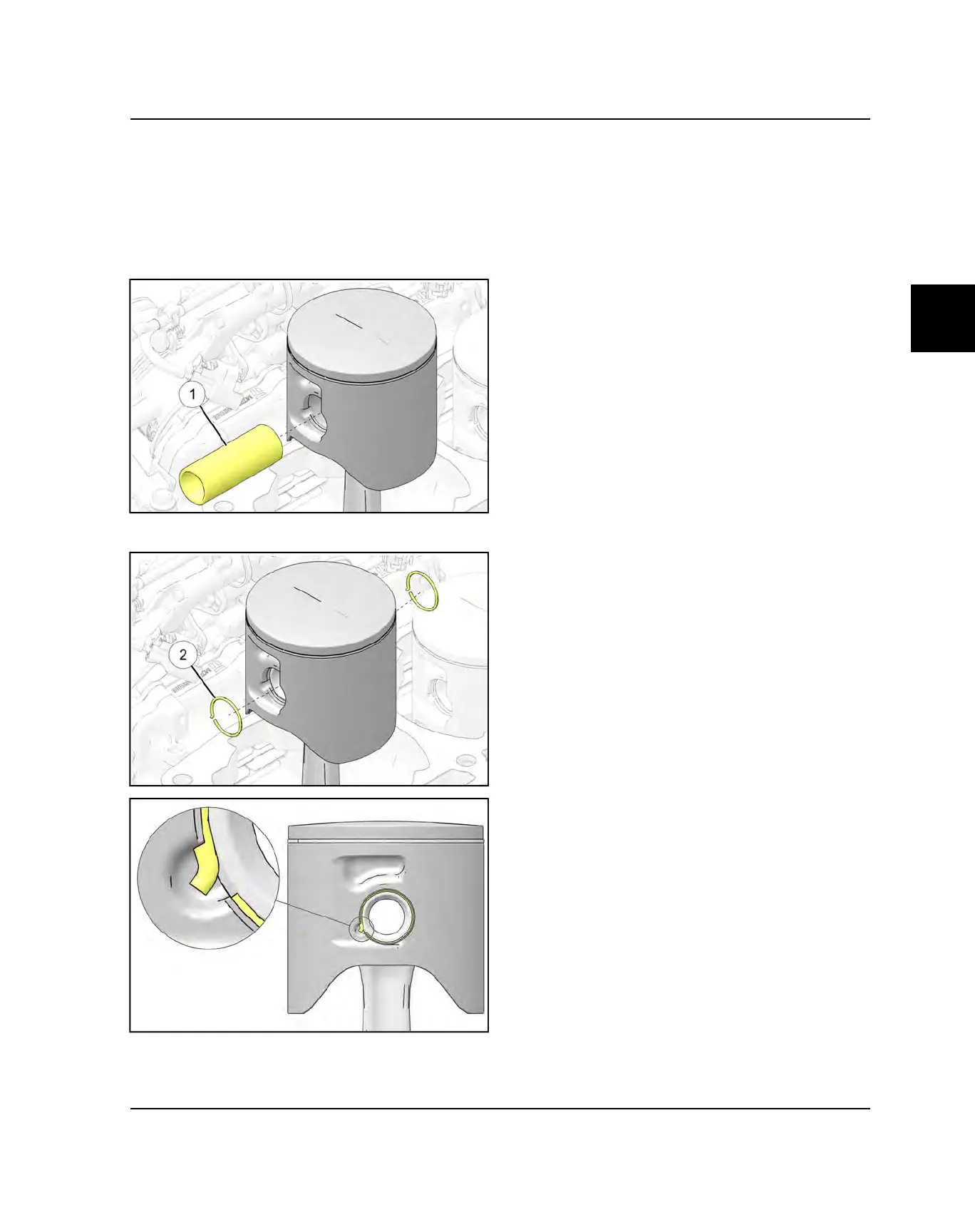

1. Warm the piston to 100 - 130 °F (38 - 54 °C) for
assembly to connecting rod.
2. Install the piston onto the connecting rod.
3. Install the piston pin
q
into piston.
4. Install the piston circlips
w
in the correct orientation.
5. Install the cylinder. See Cylinder Installation page
3.100.
6. Install the cylinder head. See Cylinder Head
Installation page 3.101.
