COOLING HOSE - HOT SIDE ROUTING / RETENTION CONTINUED

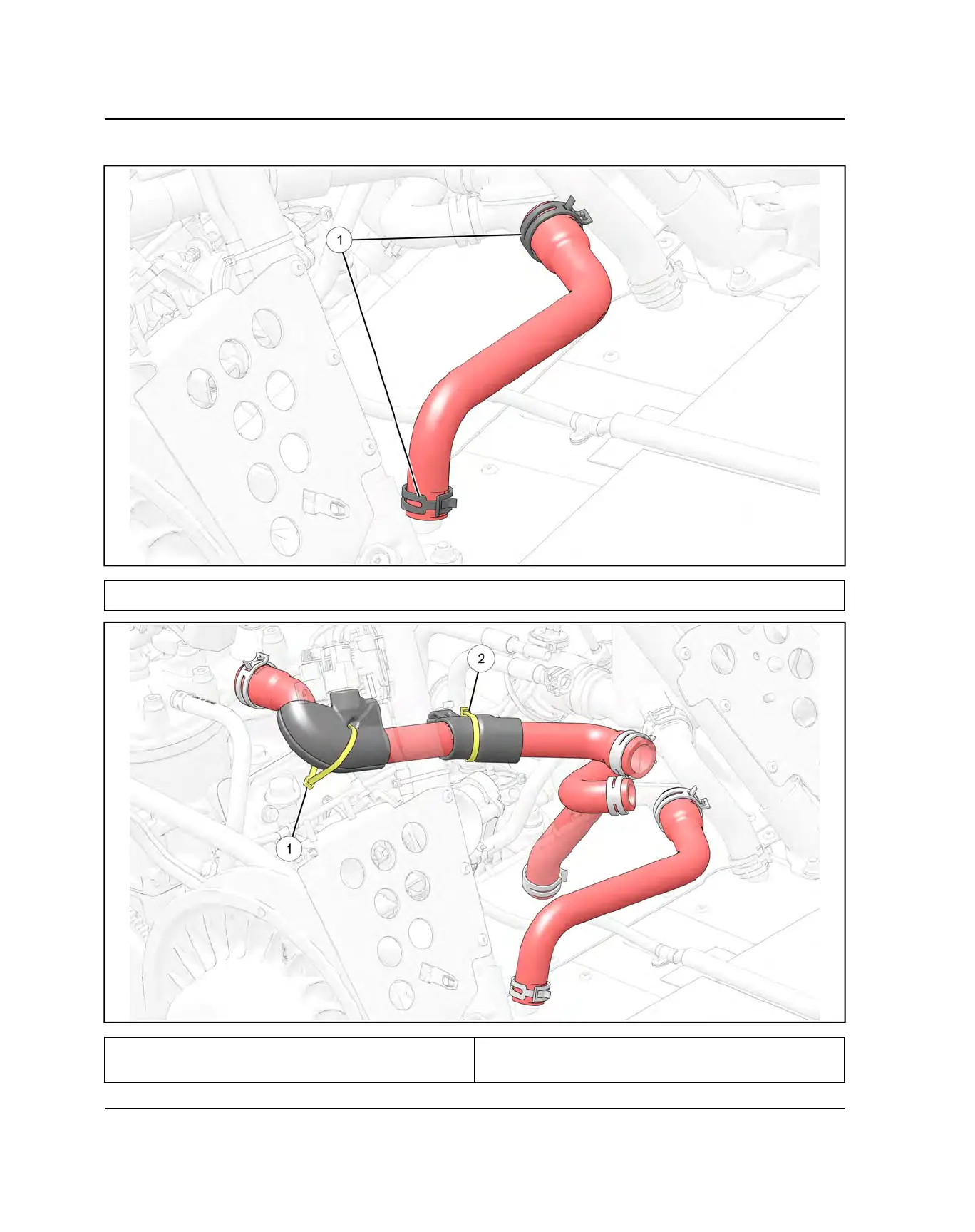

Cooling hose is secured in 2 locations as shown
q
.
Orientation of panduit strap
q
on the hose / throttle
cable support should be pointing toward downward.
Orientation of panduit strap
w
on the stator wire support
should be pointing toward upside.
