9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.

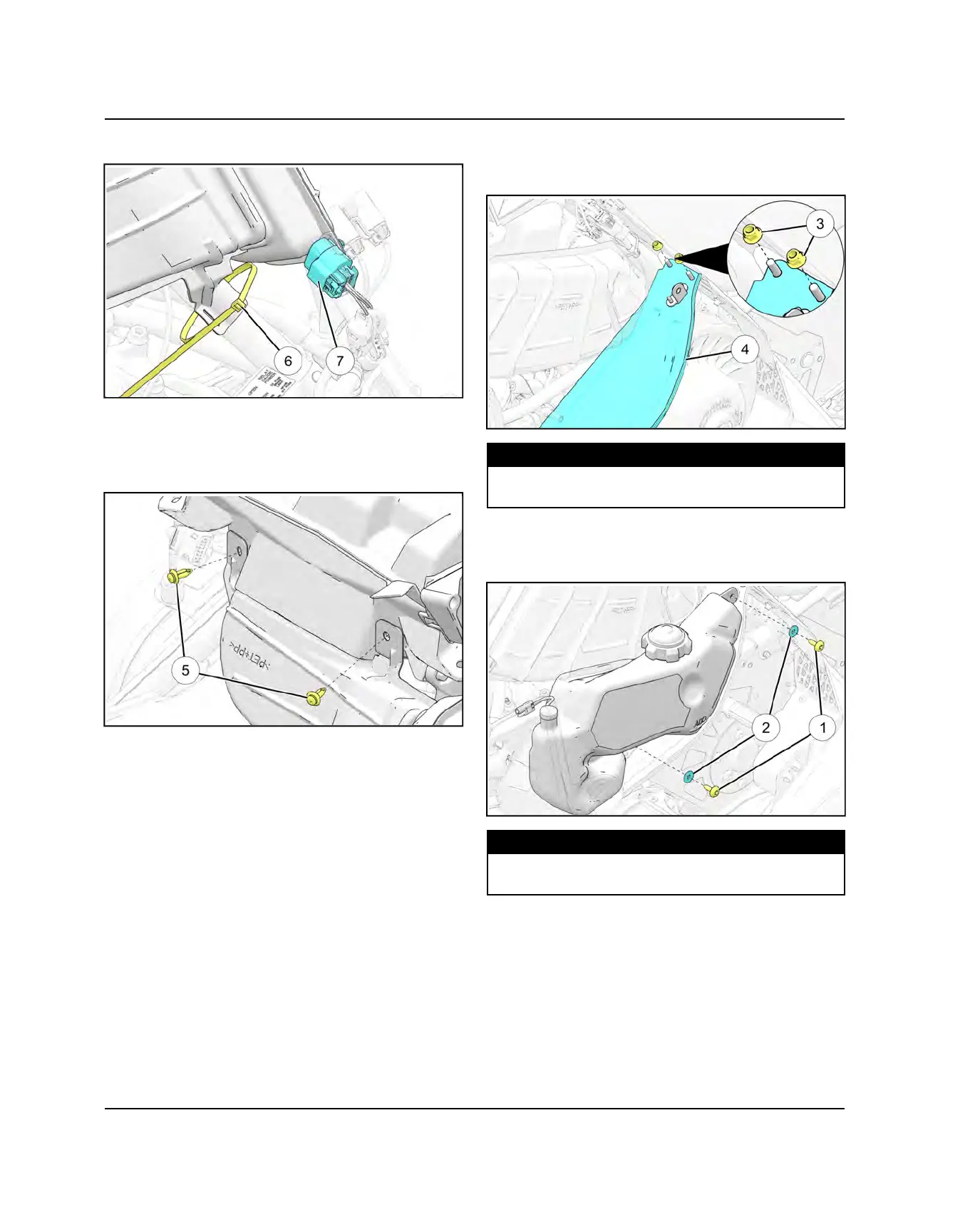

20.Install the diagnostic connector
u
into the cap.
21.Install the cable tie
y
securing the upper intake tube
to the chassis.
22.Install the push rivets
t
retaining the intake tube to
the intake plenum.
23.Slide the front of the clutch guard
r
into the body
work. Install the fasteners
e
at the rear of the clutch
guard.
TORQUE
Clutch Guard Nuts:
8 ft-lbs (10 N·m)
24.Re-install oil tank and align mounting hole. Install
washers
w
and oil tank mounting fasteners
q
.
Torque fasteners to specification.
TORQUE
Oil Tank Mounting Fasteners:
7 ft-lbs (9 N·m)
25.Install the driven clutch and drive belt. See the
following procedures for installation:
• Driven Clutch Installation
• Drive Belt Installation
26.Install the console. See Console Installation page
9.25.
27.Install the hood and side panels.
