5.27

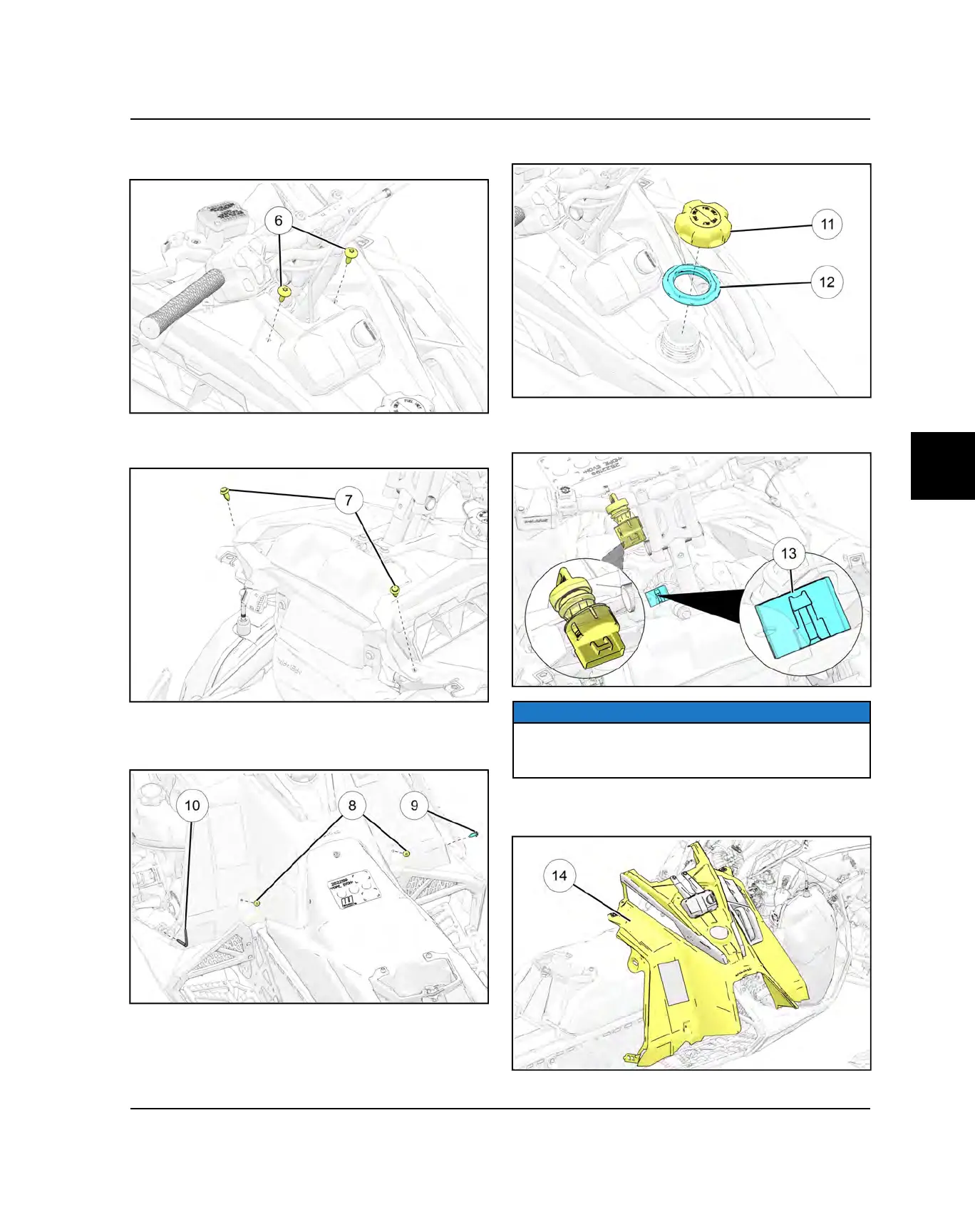

6. Remove the two fasteners
y
that secure the console
and lower intake plenum to the over-structure.
7. Remove the two push-pin rivets
u
that secure the
front of the console to the lower intake plenum.
8. Remove the two fasteners
i
, push-pin rivet
o
and
clutch tool
a
that secure the lower portion of the
console.
9. Remove fuel cap
s
and plastic fuel filler neck nut
d
.
10.Lift up the center of the console and disconnect the
key switch connector
f
from the key switch.
NOTICE
If needed, the switch panel may be removed to
disconnect the key switch connector and any accessory
connections.
11. Carefully remove console
g
and set aside with the
starter rope still attached to the console.
