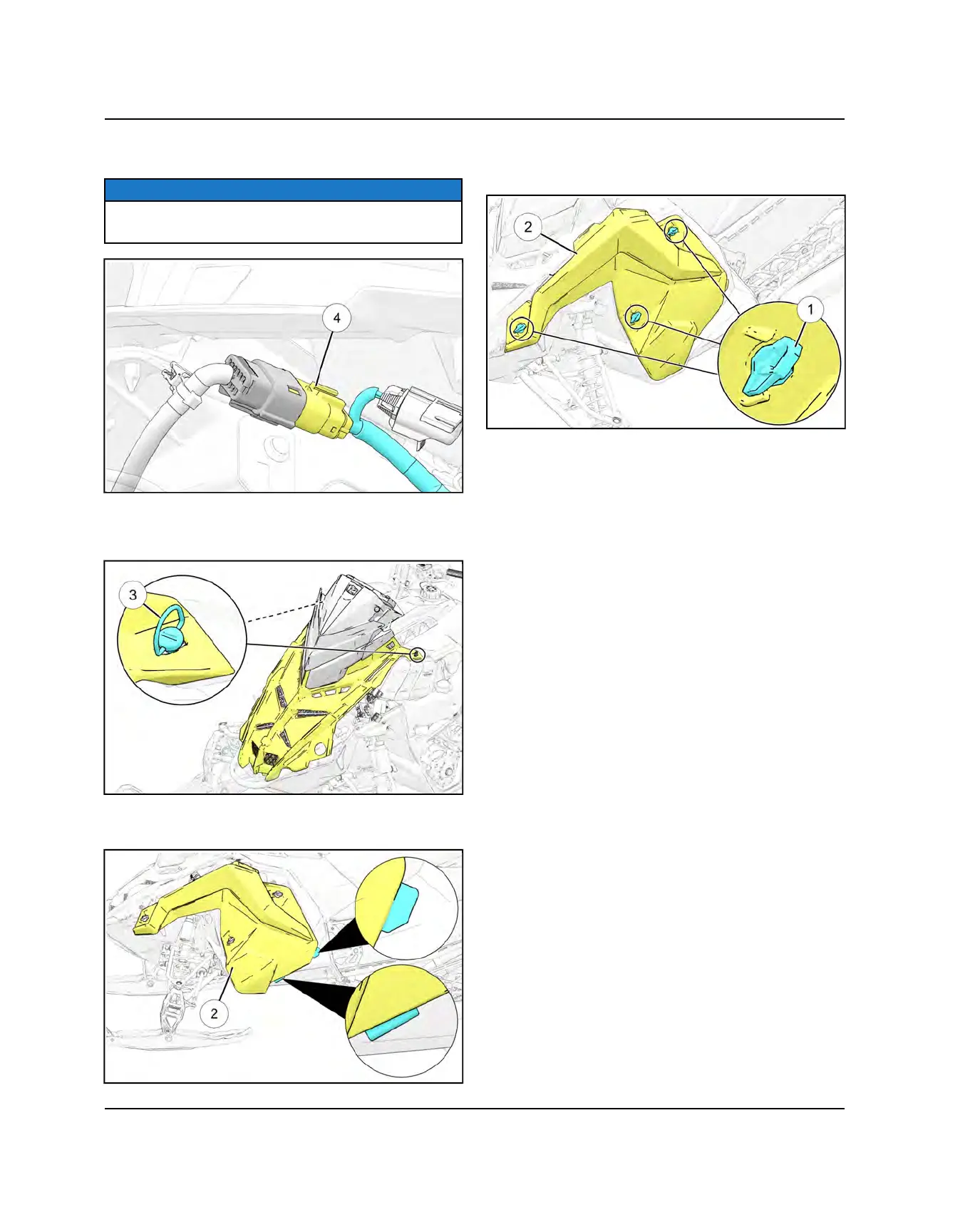

15.Connect the hood harness connector
r
to the main
harness.
NOTICE
Verify the harness connectors are clean and dry prior to
assembly.
16.Rotate the 1/4 turn fasteners
e
at the rear corners of
the hood to secure the rear of the hood to the
console.
17.Align the tabs at the bottom of the side panel
w
with
the slots in the fender and carefully insert.
18.Close the side panel
w
and secure by rotating the
three 1/4 turn latches
q
. Repeat this step to install
the side panel onto opposite side of the snowmobile.
