BRAKE LINE ROUTING
NOTICE
Images for reference only.

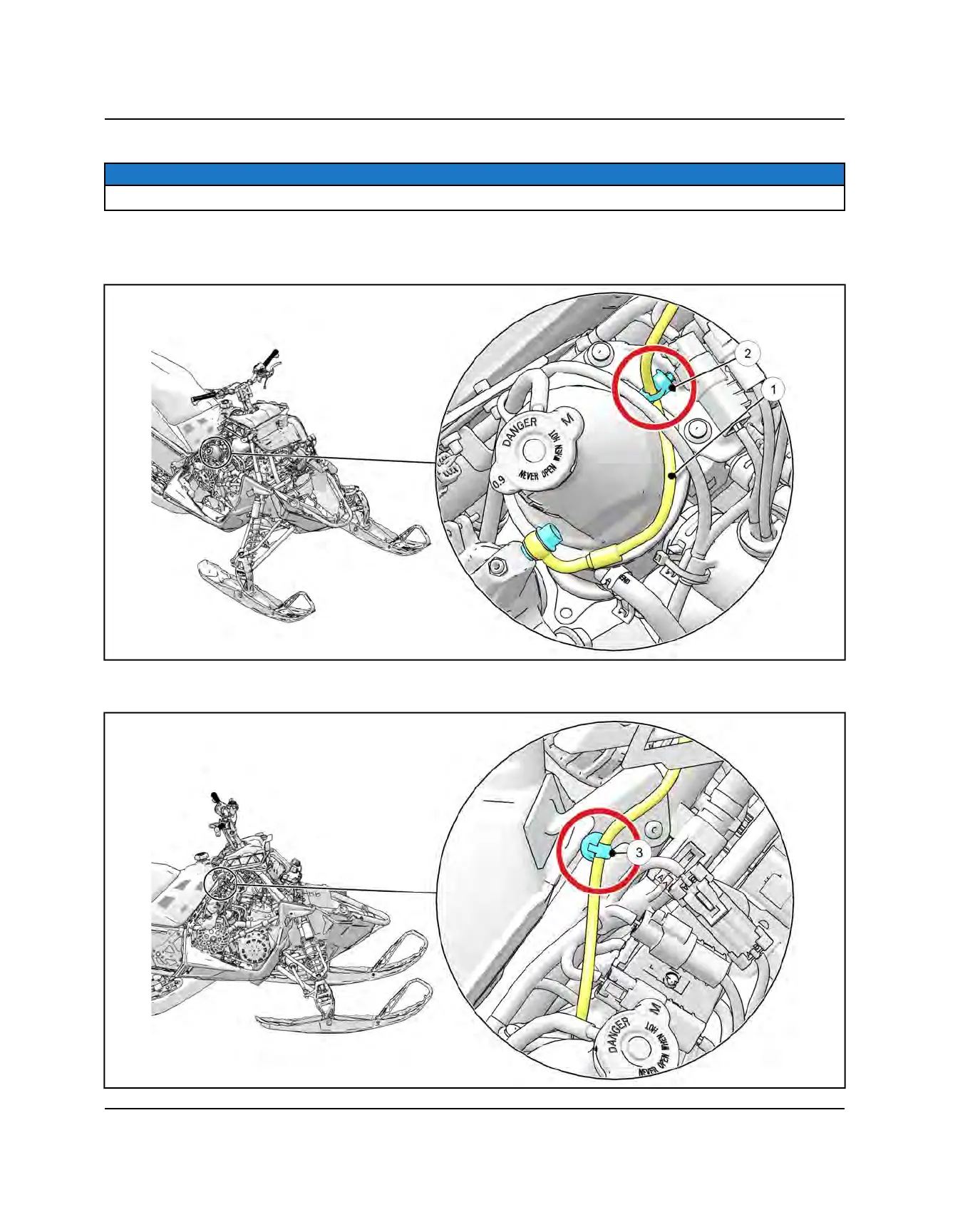

1. With the brake line secured to the brake caliper with banjo bolt, route the brake line
q
up toward the connector
placement bracket located behind the coolant bottle. Secure the brake line with a routing clip
w
to the connector
placement bracket.
2. Continue to route the brake line upward along the over-structure tube. Secure the brake line with a routing clip
e
to
the fuel tank bracket.
