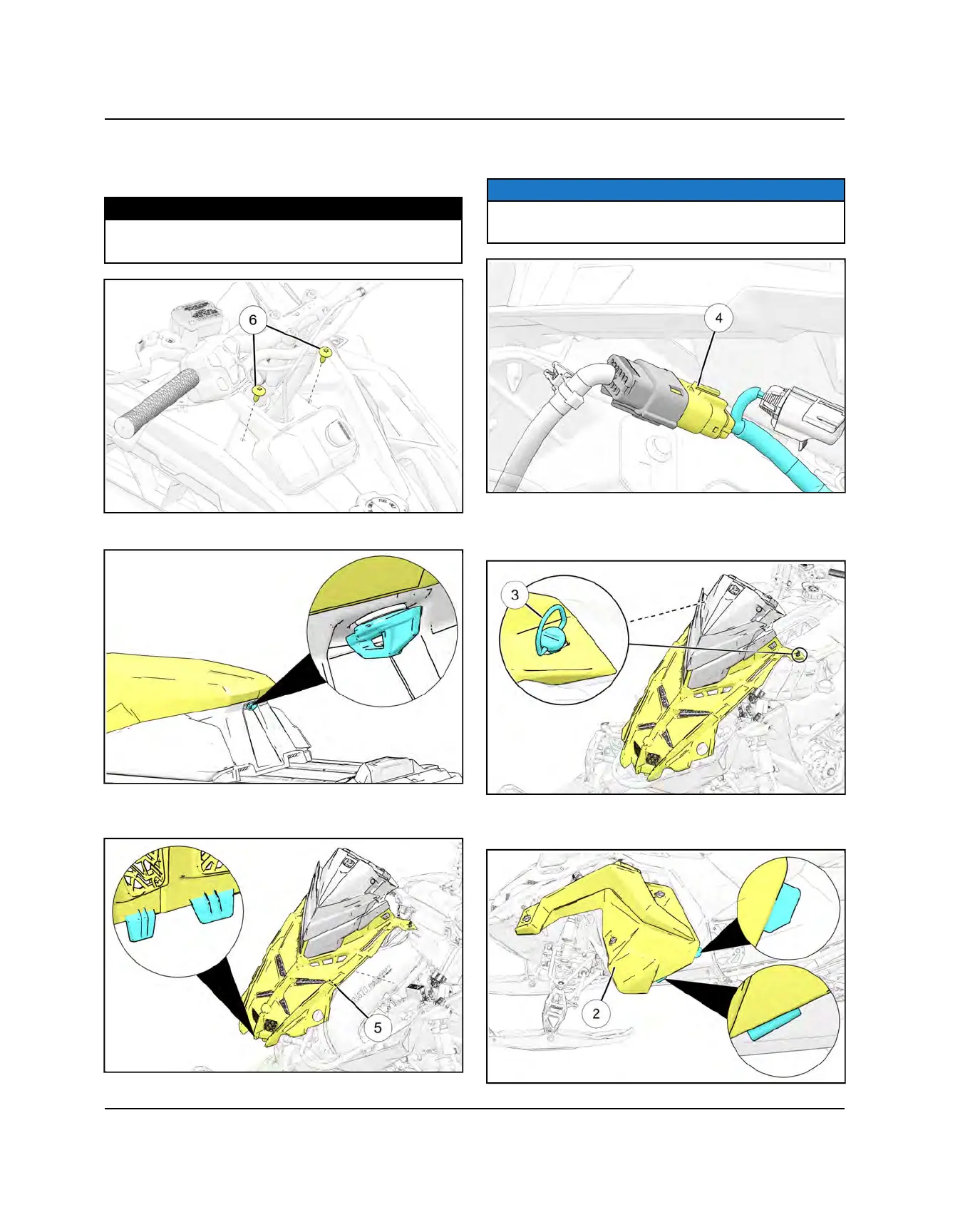

5. Install the two fasteners
y
that secure the console
and lower intake plenum to the over-structure. Torque
fastener to specification.
TORQUE
Console Fasteners:
71 in-lbs (8 N·m)
6. Install the seat and secure with 1/4 turn latch.
7. Install the hood
t
by inserting the front of the hood
into the nosepan.
8. Connect the hood harness connector
r
to the main
harness.
NOTICE
Verify the harness connectors are clean and dry prior to
assembly.
9. Rotate the 1/4 turn fasteners
e
at the rear corners of
the hood to secure the rear of the hood to the
console.
10.Align the tabs at the bottom of the side panel
w
with
the slots in the fender and carefully insert.
CHASSIS
