Before installing the input transformer, be sure you have prepared
the UPS according to the instructions on page 19. The input transformer

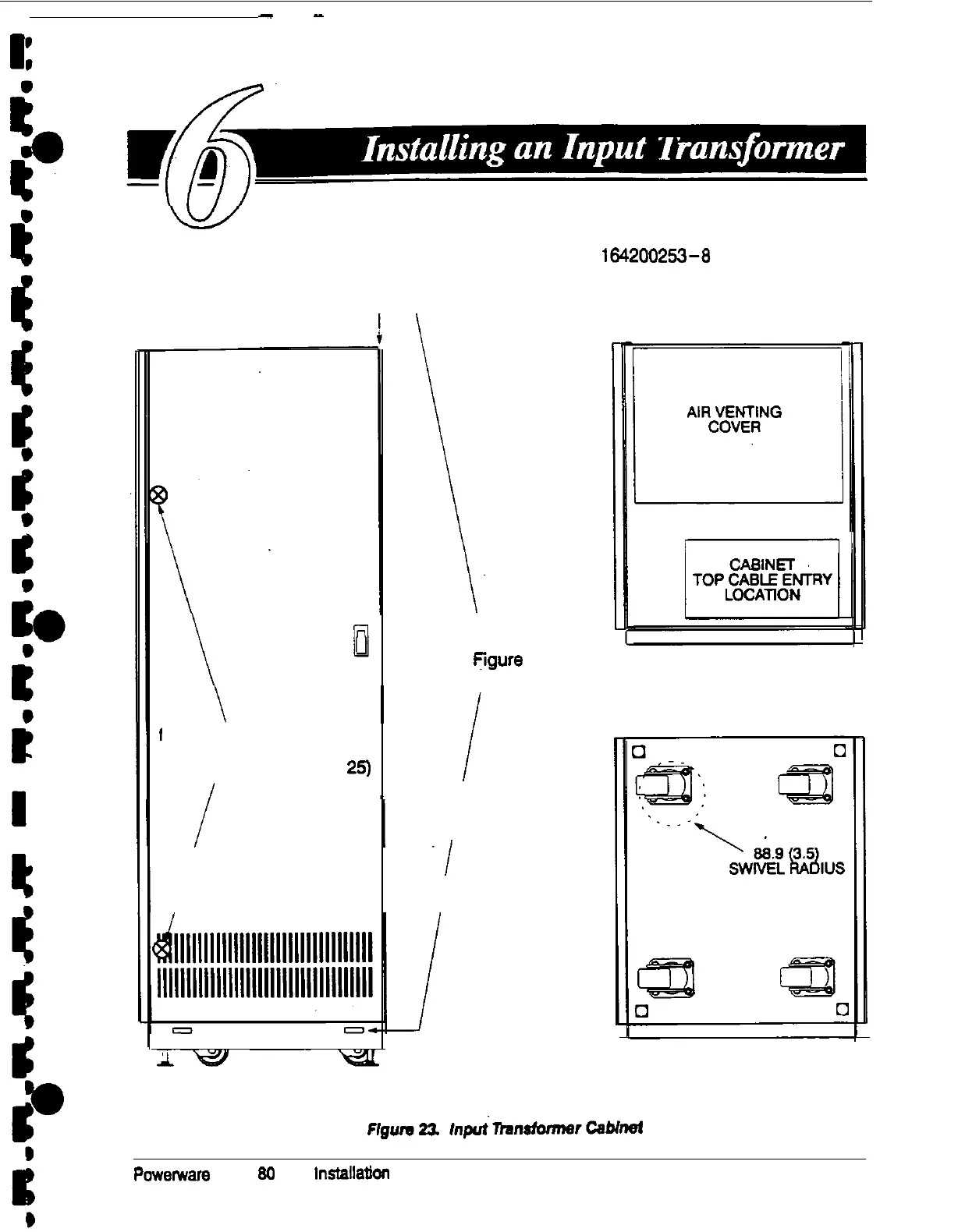

cabinet arrives as shown in Figure 23. See Drawing 184200253-8 on page A- 18
for cabinet dimensions.
‘or joining to other cabinets
JOINING POINTS
(See Figure 17 on page 25)
I
JOINING POINTS
for joining to UPS cabinet
(See Figure 14
on page 23)
I
I
