PREVOST X3-45 - Power Steering Fluid Level; Radiator Fan Gearbox Oil Level

Care and Maintenance
100
• Add oil through the oil filling point if the oil
level has fallen below the oil filling point;
• Approximately 11 liters is needed for a
complete oil change;

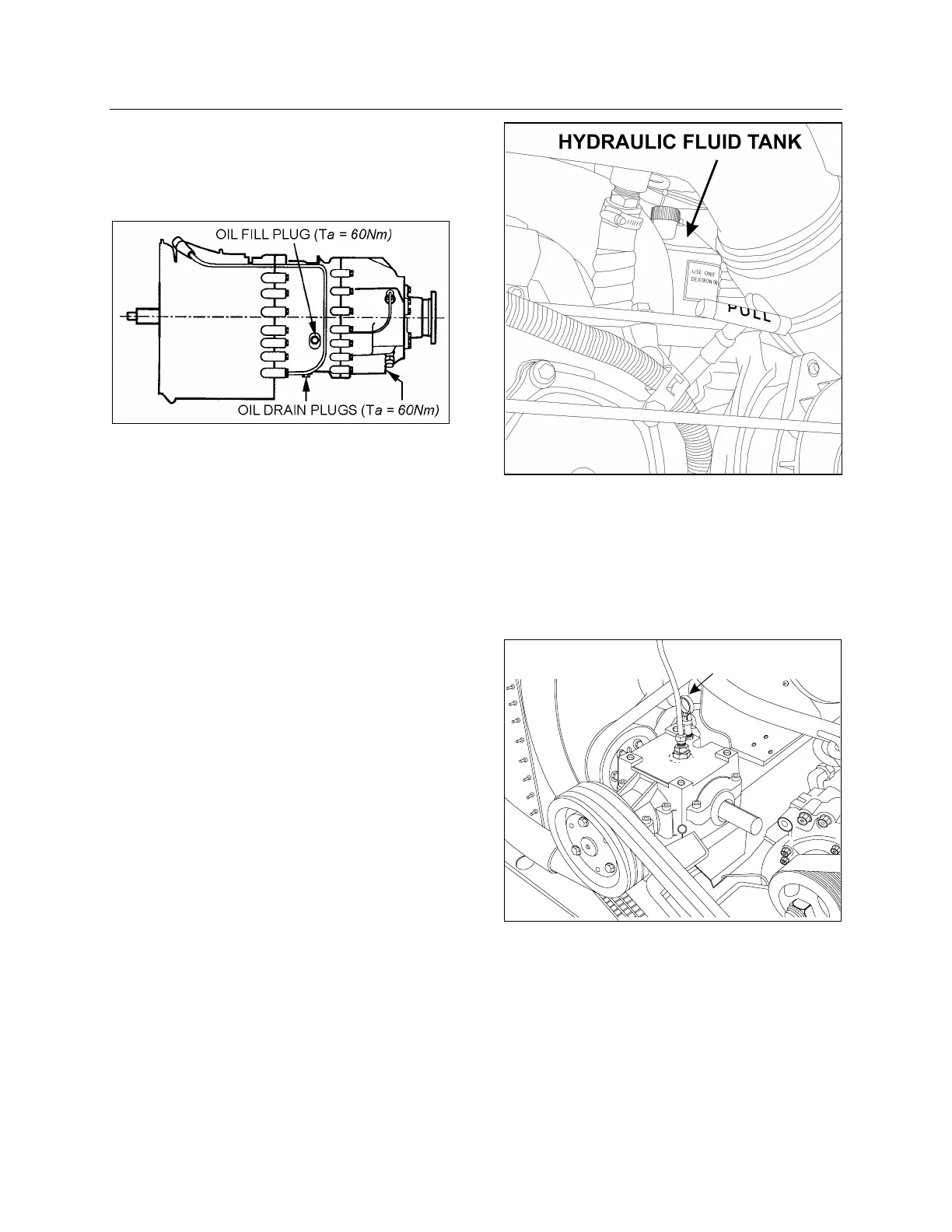

ZF TRANSMISSION FILLING POINT 07111
• The oil level is correct once the top of the oil
has reached the bottom of the filling point or
once oil has already started to escape from
the filling point.
POWER STEERING FLUID LEVEL
The coach is equipped with a power steering
system. The hydraulic fluid tank is located in the
engine compartment behind the engine air
intake pipe and above the alternators.
Check fluid level as follows:
1. Stop engine, open engine compartment
doors and place rear start switch to OFF
position;
2. Unscrew and remove the dipstick located on
top of the fluid tank and wipe with a clean
rag;
3. Replace dipstick in tank, then remove to
check fluid level;
4. Add hydraulic fluid until it reaches the FULL
mark on the dipstick (use Dexron II, Dexron
IIE, Dexron III or Mercon fluid type);
5. Replace and tighten dipstick;
6. Place engine rear start switch to NORMAL
position. Close engine compartment doors.
ENGINE COMPARTMENT 14059
RADIATOR FAN GEARBOX OIL LEVEL
The radiator fan is belt-driven by the engine
crankshaft pulley through a gearbox and drive
shaft. A dipstick located on the top of the
gearbox is used to check the radiator fan
gearbox oil level.
DIPSTICK
ENGINE COMPARTMENT 05062TA
Check radiator fan gear box oil level as follows:
1. Stop engine, open engine compartment and
place battery master switch to the OFF
position;
2. Place engine starter switch to OFF position;
3. Remove the dipstick located on top of the
gearbox and wipe with a clean rag;
4. Insert dipstick in gearbox case, then remove
again to check mark;
