Coach Exterior
4

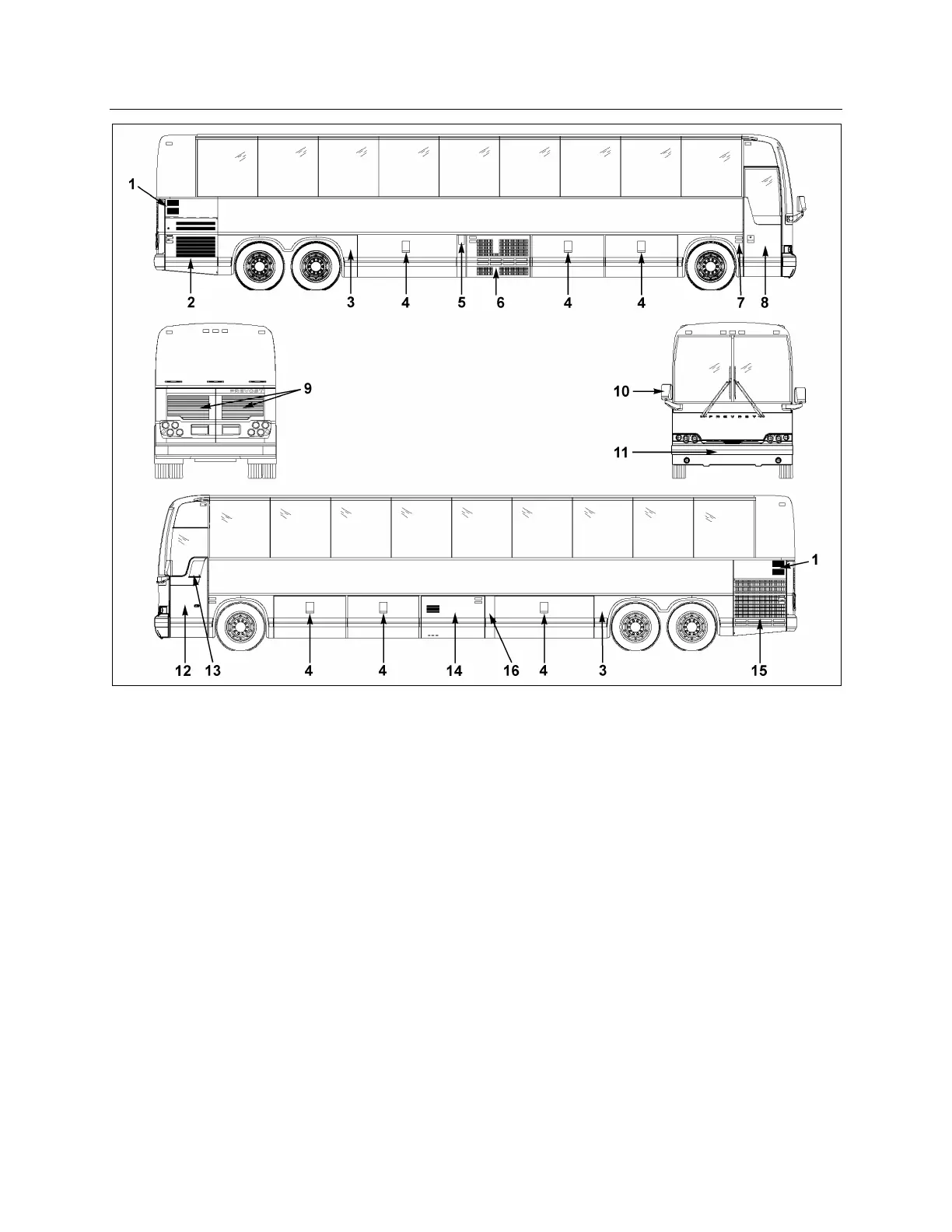

X3-45 EXTERIOR VIEW (TYPICAL) 18606
1. Engine air intake
2. Engine compartment curb-side door
3. Hinged rear fender
4. Baggage compartment
5. Fuel filler door
6. Condenser compartment
7. Entrance door control switch
8. Entrance door
9. Engine compartment rear doors
10. Rear-view mirrors
11. Spare wheel compartment
12. Front electrical and service compartment
13. Driver’s power window
14. Evaporator compartment
15. Radiator door
16. Rear electrical compartment
