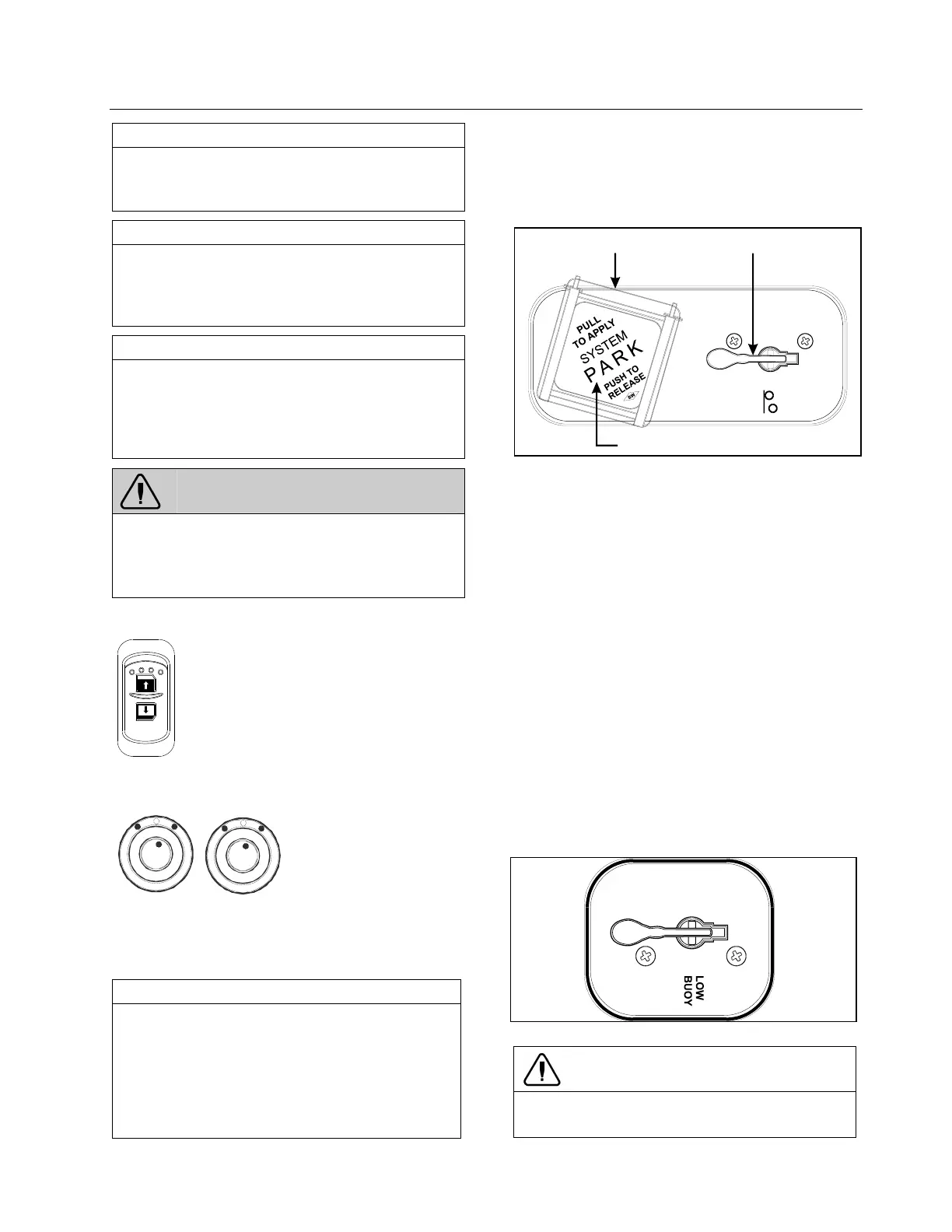

Controls and Instruments
28
NOTE
To avoid sudden vehicle hesitation, slightly
depress the accelerator pedal before
disengaging the cruise control.
NOTE
When the CRUISE rocker switch is turned off,
the cruise control is completely shut off and the
cruise speed setting is erased from the cruise
control memory.
IMPORTANT NOTE
If the engine was stopped and the CRUISE
rocker switch was in the ON position, the rocker
switch must be reset by turning it OFF then ON
again in order for the cruise control to be
reactivated.
WARNING
Every time the SET or the RESUME switch is
depressed results in a decrease or increase
(respectively) in cruising set speed of 0.6 mph
(1.0 km/h).
POWER WINDOW SWITCH (3)
06338
Use the rocker switch to open or
close the driver’s power window.
MIRROR CONTROLS (OPTION) (4)
Turn left pointer knob
counterclockwise for
flat mirror adjustments
and to the right for
convex mirror adjust-
ments, then use the
joystick control to adjust the selected mirror’s
viewing angle. Adjust the right outside mirror
similarly but by using the right side control.
NOTE
If the mirror assemblies on your vehicle do not
include convex mirrors, only one (1) mirror
control knob will be installed for both mirrors. To
operate, turn knob to the left for L.H. mirror
adjustments and to the right for R.H. mirror
adjustments, then use the joystick control to
adjust the selected mirror’s viewing angle.
TAG AXLE CONTROL VALVE (5)
Lift the tag axle by pushing the lever forward.
Pulling the lever back will lower the tag axle. Refer
to "Other Features" chapter for additional
information.
Tag axle lever
Safety cover
Parking brake valve
CONTROL VALVES 12129
PARKING BRAKES CONTROL VALVE (6)
Spring-loaded parking brakes are applied by
pulling up the control valve knob and protector
assembly. Lift the safety cover and push down to
release brakes. Refer to “Safety Features and
Equipment" chapter.
COOLANT HEATER TIMER (OPTION) (7)
Use the timer to program the start time of the
optional engine coolant heater. Refer to "Other
Features" chapter and supplied manufacturer’s
manual for additional information.
LOW-BUOY CONTROL VALVE (OPTION) (8)
Toggle back the control lever to lower the coach
by about four inches. Returning the lever to the
normal (forward) position raises the vehicle back
to its normal height.
LOW-BUOY CONTROL VALVE 16088
CAUTION
Do not exceed speeds of 5 mph (8 Km/h)
when activated.
06374
