Controls and Instruments
44
NOTE
The high/low battery voltage indicator will
illuminate for a few seconds after the engine is
started because of the voltage drop when the
starter is engaged.
NOTE
To prevent discharge of the batteries when the
engine in not running, some functions are
automatically switched off if the batteries
voltage drops below 24.4 volts for more than
30 seconds. The "BAT" telltale light blinks
while this protection mode is active. Set the
ignition key to the OFF position and then turn
the ignition key to the ON position to reactivate
the functions for a period of 30 seconds before
they switch off again.
Alternator
06586
Illuminates when one of the
alternators is not charging.
NOTE
To identify which alternator is defective
(1=lower, 2=upper), using the message center
display (MCD), perform a system diagnostic by
selecting SYSTEM
DIAGNOSTIC, FAULT
DIAGNOSTIC & ELECTRICAL SYSTEM and
see the fault messages.
A/C System Pressure Low
06298
Illuminates when the A/C system
pressure is too low. If the A/C
pressure is too low, the
compressor clutch disengages and
the fan stops.
Refer to the Maintenance Manual for
information on control panel troubleshooting
mode.
NOTE
When outside temperature is low, it is possible
and normal for that telltale light to come ON.
A/C System Pressure High
06296
Illuminates when the A/C system
pressure is too high. If the A/C
pressure is too high, the
compressor clutch is disengaged,
but the fan remains activated.
Refer to the Maintenance Manual for
information on control panel troubleshooting
mode.
NOTE
When outside temperature is high, it is
possible and normal for that telltale light to
come ON.
STEERING COLUMN CONTROLS
Many of the most frequently used controls are
conveniently placed on the steering column or
the steering wheel, just like a passenger car.
The Multi-function lever is located on the left
side of the steering wheel while the optional
transmission retarder lever is located on the
right side of the steering wheel. Switches for the
electric horn and the air horn are located directly
on the steering wheel.
MULTI-FUNCTION LEVER
MULTI-FUNCTION LEVER
23133

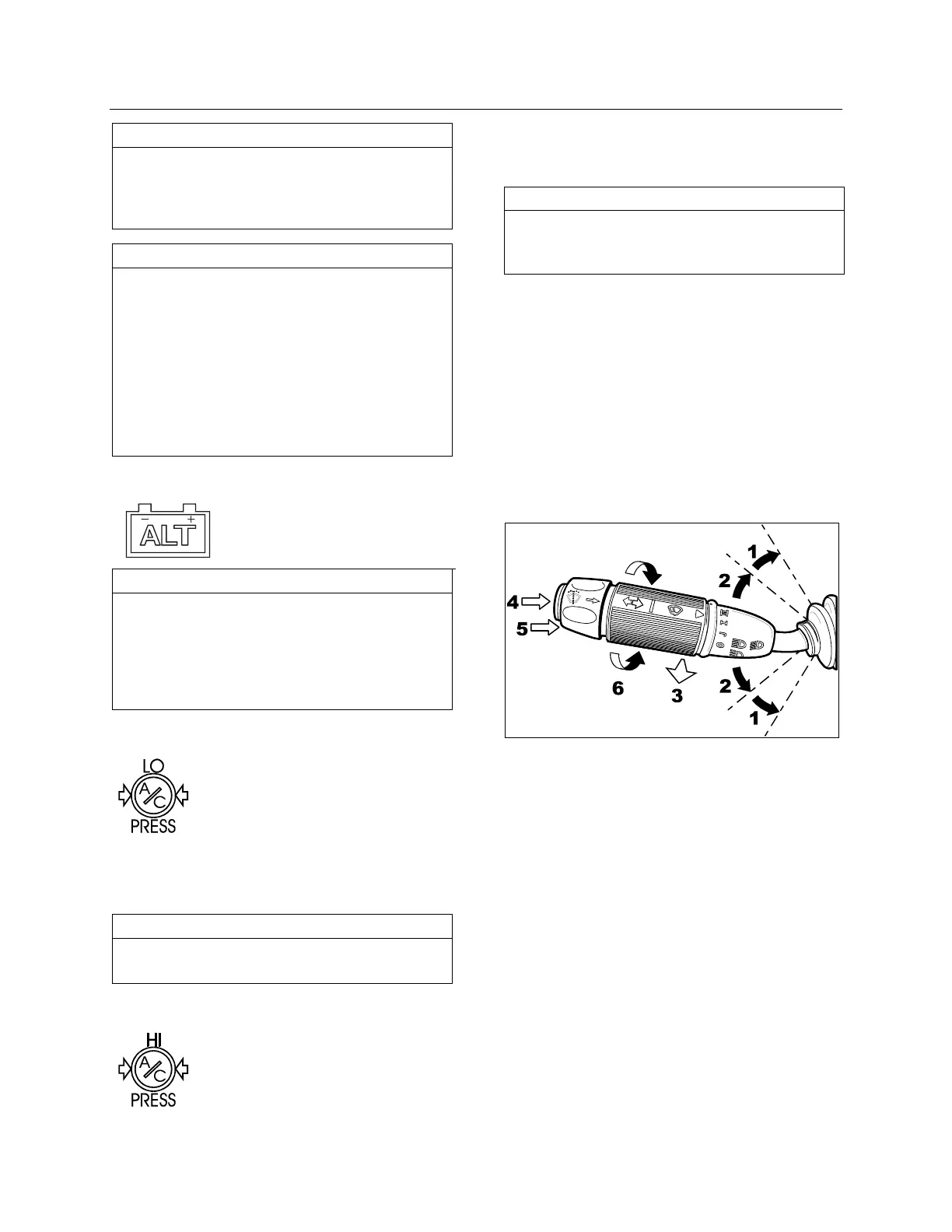

The multi-function lever is used to operate the
following:
Turn Signal (1)
Move the lever all the way up until it locks in
position to signal a right turn. Move the lever all
the way down until it locks in position to signal a
left turn. The lever automatically returns to the
horizontal OFF position once the turn is
completed.
Lane Change Signal (2)
Move the lever part way to the catch position
and hold until the lane change maneuver is
completed. The lever will spring back into the
OFF position once released.
