Safety Features and Equipment
88
WARNING
Before driving, be sure the flat tire, track, jack
and tools are securely reinstalled in their
respective compartments. Check that the
bumper is securely closed shut before driving.

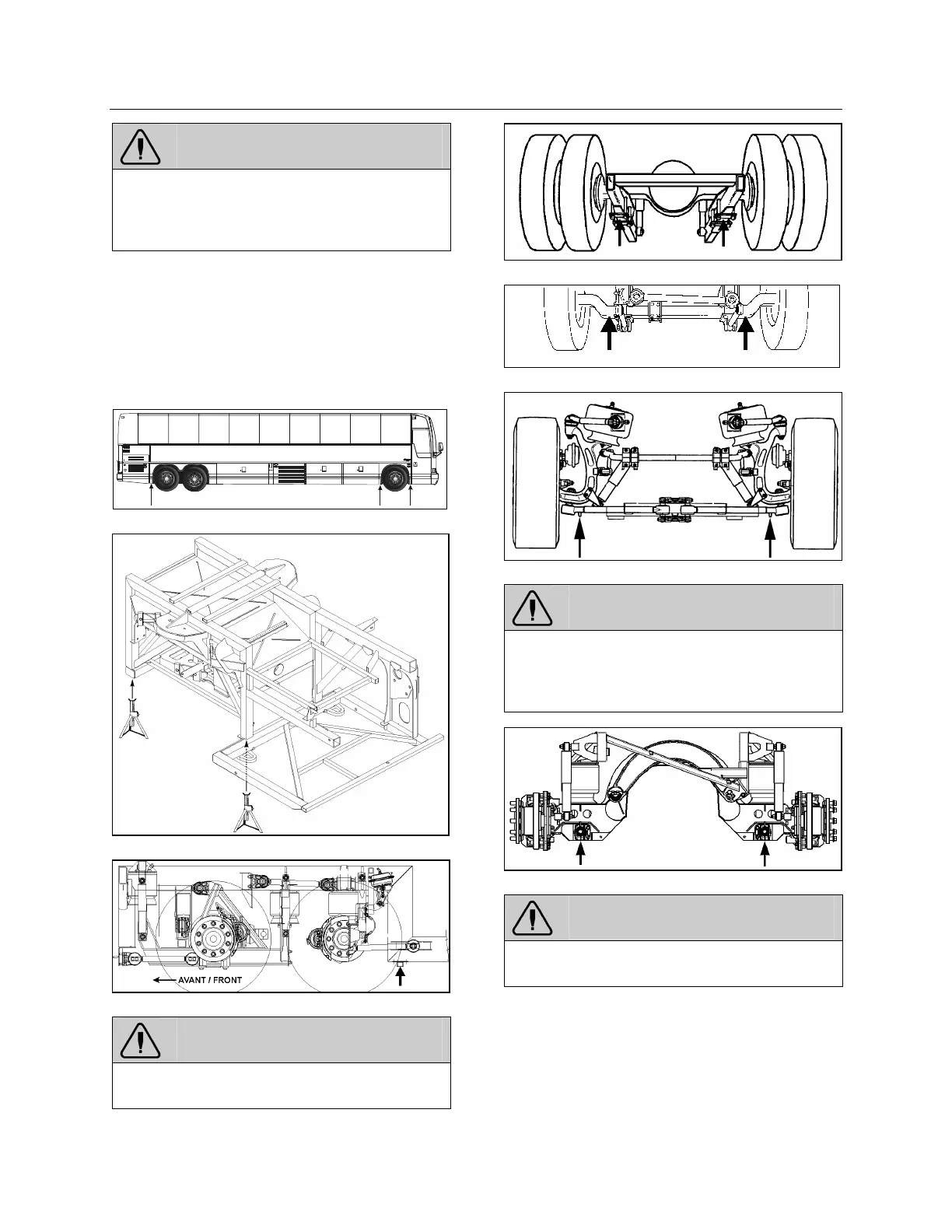

JACKING POINTS
Twelve jacking points are located on the vehicle;
three are located on each side of the frame and
two are located under each axle. Refer to the
following illustrations for the location of jacking
points.
JACKING POINTS ON FRAME 18618
FRONT END JACKING POINTS 18592
REAR END JACKING POINTS 18593
WARNING
The suspension of the vehicle must be in the
normal ride position before jacking.
JACKING POINTS ON DRIVE AXLE 11005
JACKING POINTS ON FRONT AXLE 10005
JACKING POINTS ON IND. FRONT SUSPENSION 16139
WARNING
Always unload or retract the tag axle before
jacking the vehicle from the front and drive
axle jacking points to prevent damage to
suspension components.
JACKING POINTS ON TAG AXLE 11029
WARNING
The jacking points on the tag axle must be
used for raising the tag axle only.
Several kinds of hydraulic jacks can be used.
Only jack at the specified jacking points. Jack
must support the following capacities:
Front axle: 20,000 lb (9 100 kg);
Drive axle: 40,000 lb (18 200 kg).
