Coach Exterior
8

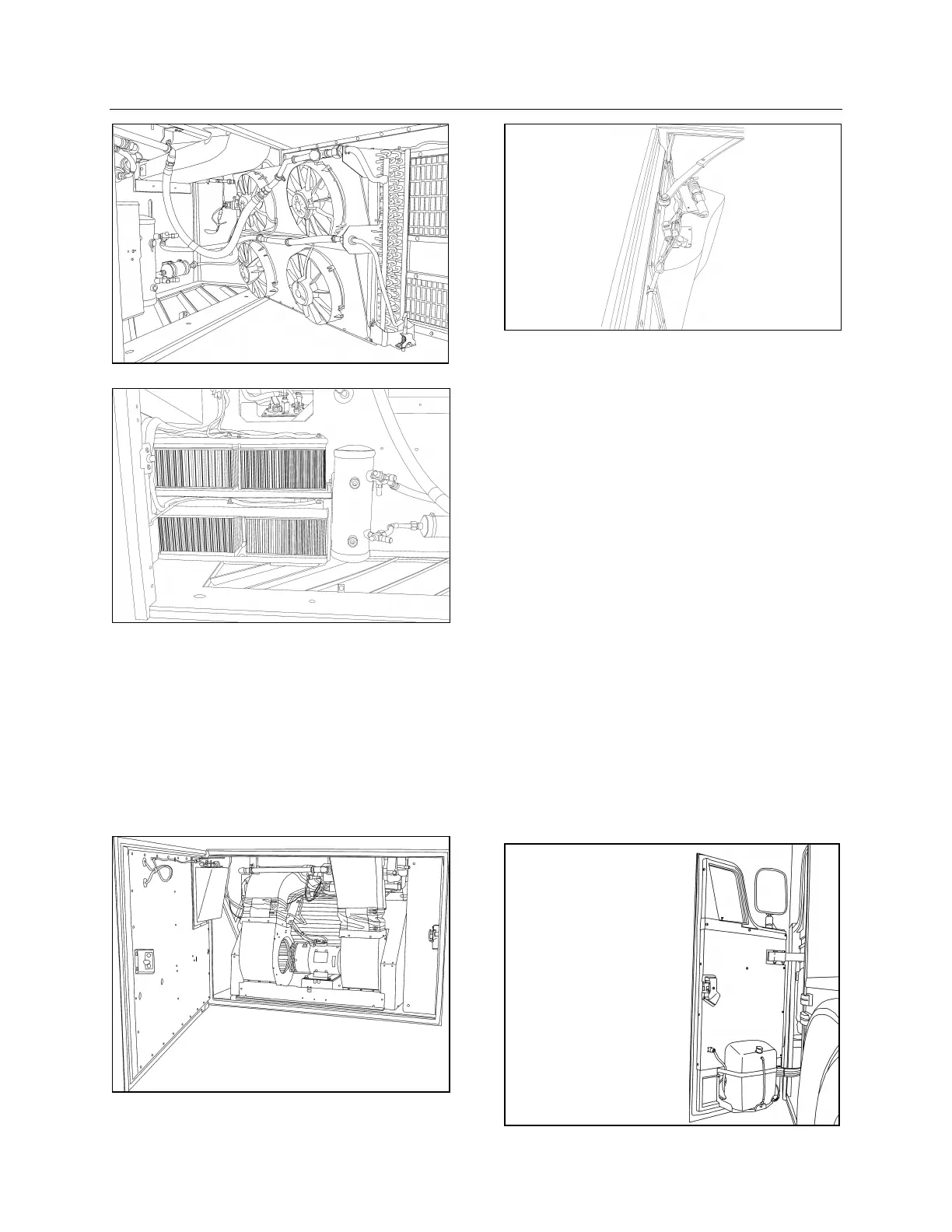

CONDENSER COMPARTMENT (A/C) 22299
BATTERIES LOCATION 22300
EVAPORATOR COMPARTMENT
The HVAC (Heating, Ventilating and Air-
Conditioning) evaporator blower and coolant
fluid circulation pump are located in this
compartment. The compartment door release
latch is located on the left side of the baggage
compartment and to the right of the HVAC
compartment door. Pull the release latch then
swing the HVAC compartment door open.
EVAPORATOR COMPARTMENT
22301
RECIRCULATION DAMPER 22302
FRONT ELECTRICAL AND SERVICE
COMPARTMENT
To open the front electrical and service
compartment door, pull the rod inside the
vehicle, next to the driver’s power window or use
the key to open from outside the coach. The
front electrical and service compartment
provides access to the following:
• Front terminal block;
• CECM;
• Vehicle Electrical Center Front (VECF) and
Multiplex Modules;
• Relays and fuses;
• ABS Electronic Control Unit (ECU);
• Emergency door opening unlatch valve;
• Windshield washer reservoir & headlights
washer reservoir (optional);
• Accessory system fill valve;
• Accessory air tank drain valve;
• Jack and tools.
FRONT SERVICE COMPARTMENT DOOR 18610
