Coach Exterior
7
A catch holding each door open engages when
the door is fully open. Release the catches
before closing the doors. Close the L.H. door
first, then firmly shut the R.H. door.

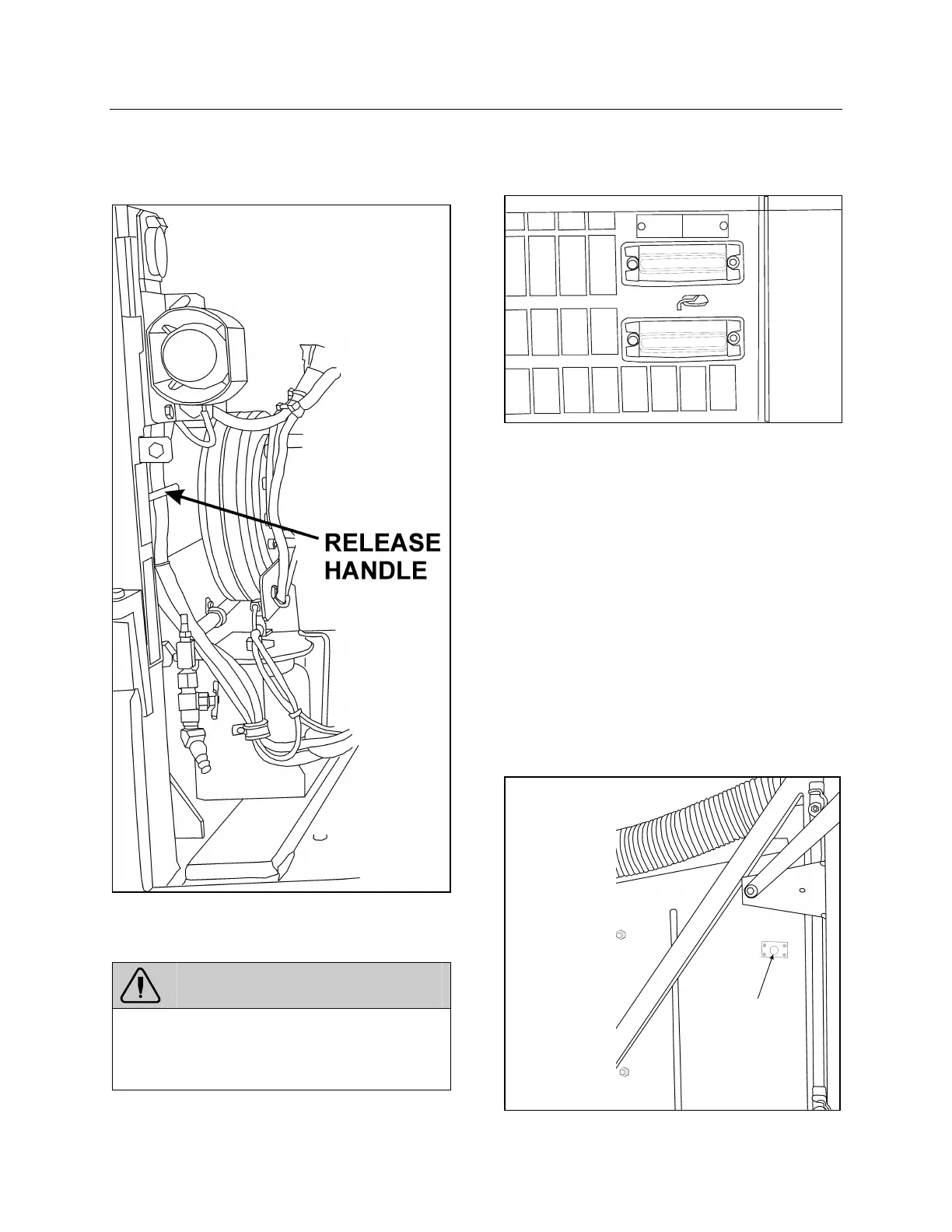

OPENING ENGINE COMPARTMENT REAR DOORS 18608
Turn the lights ON in the engine compartment
using the switch on the rear start panel.
WARNING
Unless otherwise specified, do not run engine
when the engine compartment rear doors are
open. Close the engine compartment rear
doors before starting the engine.
ENGINE RADIATOR DOOR
Open the engine radiator door by pushing the
release lever sideways.
RADIATOR DOOR 18560
CONDENSER COMPARTMENT (A/C)
Pull the release latch located inside the L.H. side
adjacent baggage compartment to open the
condenser door.
The condenser compartment provides access to
the following:
• 12 volt-Batteries;
• Battery equalizer;
• Condenser;
• Condenser fans and motors;
• Filter dryer and moisture indicator;
• Receiver tank;
ACCESS TO CONDENSER COMPARTMENT
18609
