Coach Exterior
12

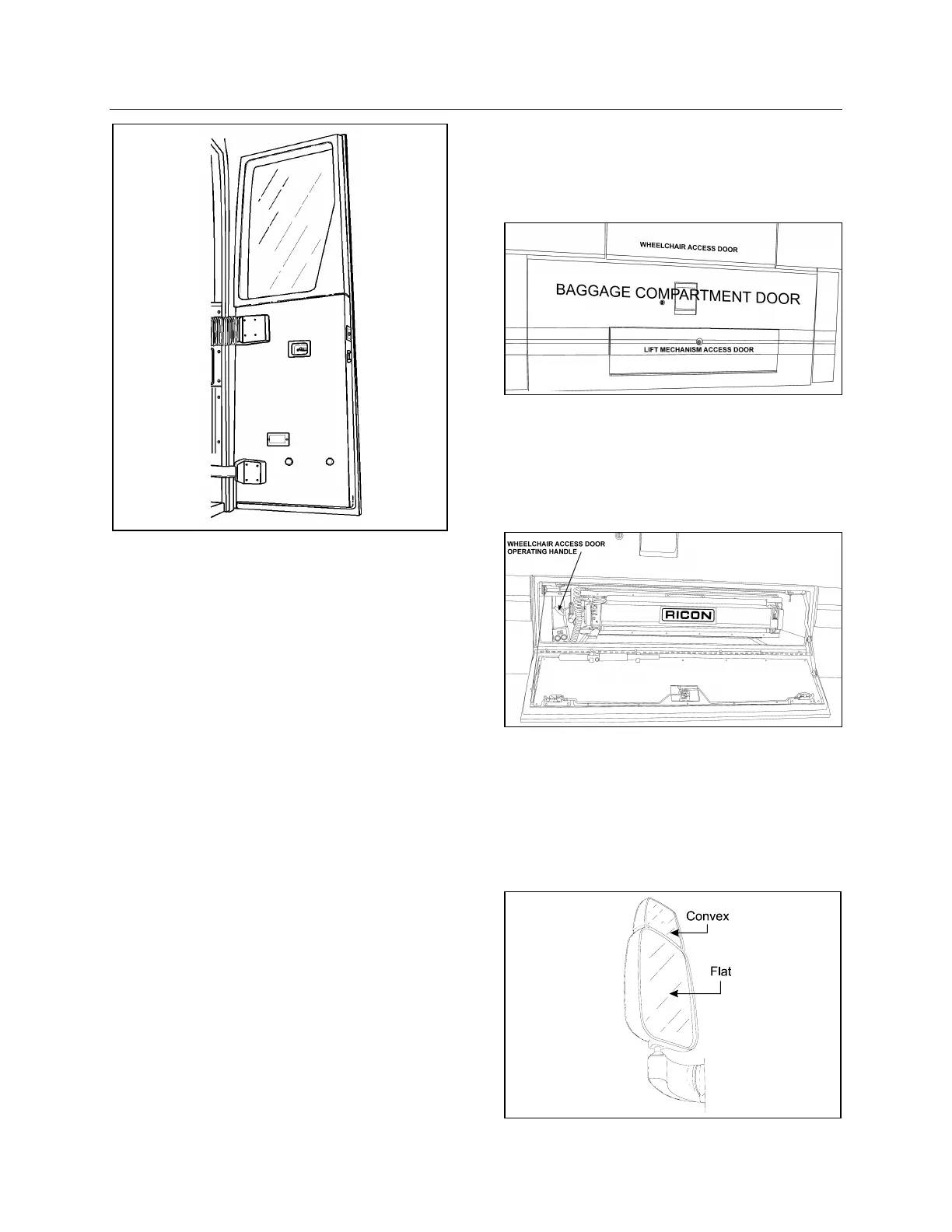

ENTRANCE DOOR 18001
DOOR OPERATION LOGIC
If the switch is held in position until the door is
fully open or closed, the system holds pressure
in the door cylinder, locking the door in that
position. The door can be opened to any
position by releasing the switch (or button, if
inside) when the desired position is attained.
However, the door is not locked in any position
other than fully open or fully closed. The door
can then be opened or closed further by pushing
or pulling on the door.
A proximity sensor will finish the closing of the
door when it senses the door is almost shut.
This works even when the door is shut
manually.
EMERGENCY ENTRANCE DOOR OPENING
Refer to “Safety Features and Equipment”
chapter.
WHEELCHAIR LIFT ACCESS DOORS
To open the optional wheelchair lift access
doors, the coach must be parked on a flat and
level surface with the parking brake on. Using
the exterior compartment doors key, unlock and
carefully lower the lift mechanism access door
which is part of the baggage compartment door.
The lift mechanism access door is located
directly below the wheelchair access door. A
handle at the left of the lift mechanism unlocks
and enables opening of the wheelchair access
door. If the parking brake is not activated, a
switch in the door will activate the parking brake
when it detects the door is open.
WHEELCHAIR LIFT ACCESS DOORS 18615
Open the wheelchair access door completely
until it locks in the open position. To close the
door, pull on the tab located on the inside of the
door and slam the door shut. Refer to “Other
Features” for more information on operating the
optional wheelchair lift.
WHEELCHAIR ACCESS DOOR OPERATING HANDLE 18616
REAR VIEW MIRRORS
The vehicle is equipped with flat-type and
convex-type rear-view mirrors. Convex mirrors
give a wide angle view. Objects viewed in
convex-type rear-view mirrors appear smaller
and are actually closer than they appear.
REAR VIEW MIRRORS 18398
