Coach Exterior
9
This compartment door can be locked/unlocked
using the exterior compartment key.
The light in the front electrical and service
compartment turns ON automatically when the
door is opened.
NOTE
Jack and tools are located inside the front
electrical and service compartment.

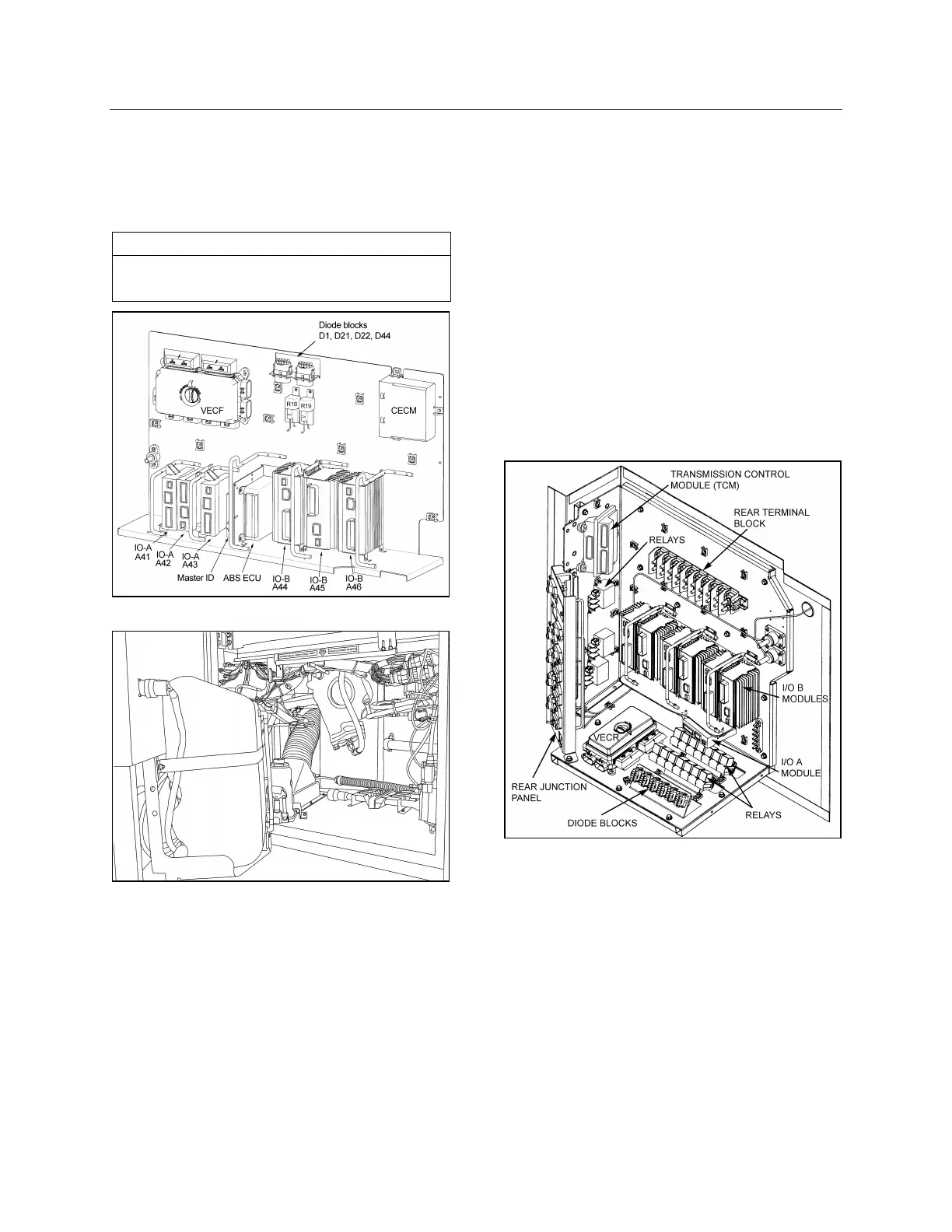

FRONT ELECTRICAL COMPARTMENT 06617
FRONT SERVICE COMPARTMENT 18611
REAR ELECTRICAL COMPARTMENT
The rear electrical compartment is located in the
space between the evaporator compartment and
the last baggage compartment (Super bay) on
the driver side of the vehicle. The compartment
is accessible from the last baggage
compartment by removing a plastic access
cover. The rear electrical compartment provides
access to the following:
• Rear junction panel;
• Rear terminal block;
• Multiplex modules;
• Vehicle Electrical Center Rear (VECR)
• Battery charger;
• Relays and fuses;
• Transmission TCM
• Battery master switch (Master cut-out)
• Diagnostic Data Reader (DDR) receptacle,
(refer to “Other Features” chapter).
The lights turn ON automatically in the rear
electrical compartment when one of the last
baggage compartment doors is opened.
REAR ELECTRICAL COMPARTMENT 06618
BAGGAGE COMPARTMENTS
The baggage compartments of the X3-45 model
provide 406 ft
3
(11.5 m
3
) of storage capacity.
The compartments can be locked or unlocked
by using the exterior compartment key. Pull up
operating handle to release the latch, and then
pull the door open. Pressurized cylinders assist
the opening and closing of the baggage
compartment doors and hold the doors open.
