Chapter 2: Installation
13
4. Press the arrow keys to highlight an logical drive number you want to define
and press Enter to select it.

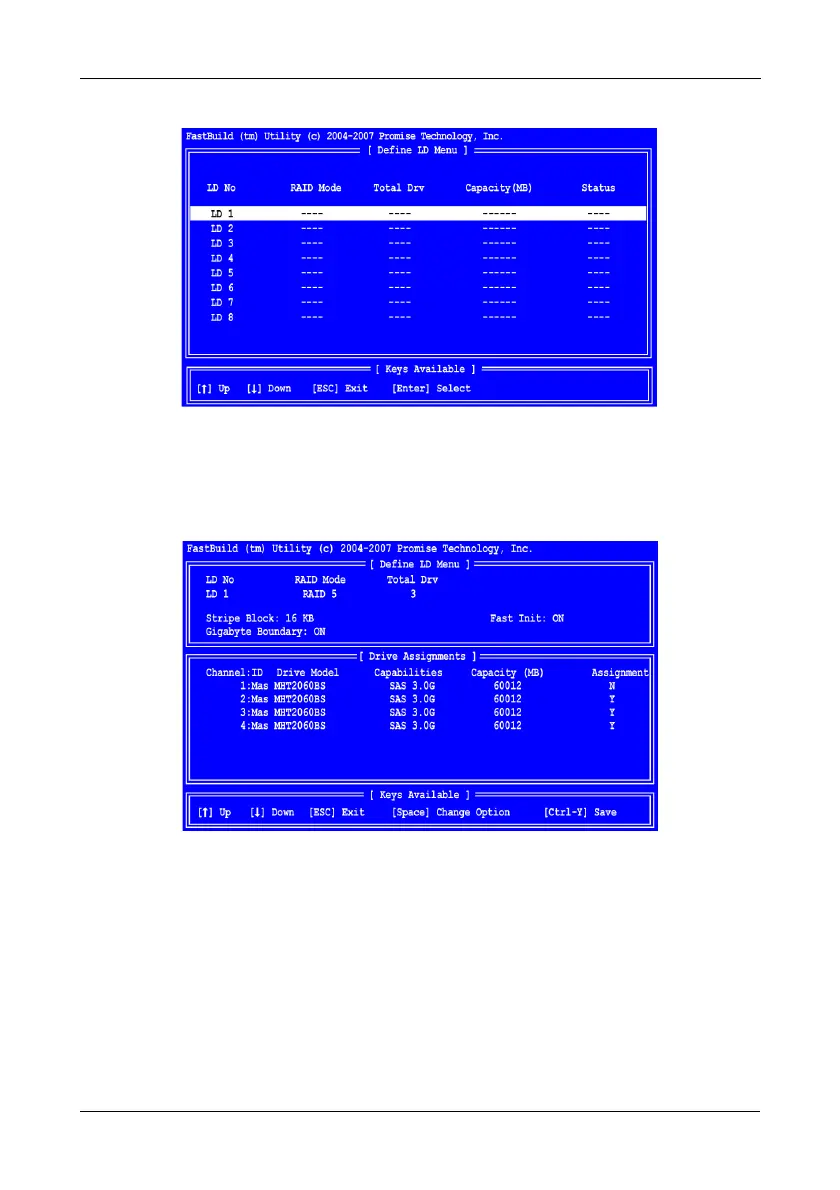

The Define LD Menu for the logical drive number you selected will next
appear (below).
5. Choose the RAID Level you want. In the Define LD Menu section, press the
Spacebar to toggle through logical drive types:
•RAID 0 (Stripe)
• RAID 1 (Mirror)
• RAID 5 (Distributed Parity)
• RAID 10 (Stripe/Mirror)
• JBOD (Single Drive)
See “Introduction to RAID” on page 109 for more information.
