FastTrak TX4650, TX2650 User Manual
38
Functional – The logical drive is fully operational, and no problems are
present.
Critical – The logical drive is operational, but has lost its fault tolerance. For
RAID 1, 5, or 10, the logical drive contains a failed drive. You must identify
and replace the failed physical (disk) drive.
Offline – The logical drive is no longer operational and the FastBuild utility
cannot rebuild it. You must identify and replace the failed drive(s). Then you
can create a new logical drive and copy your data to it from the last tape
backup or other device.
• For RAID 1, 5, or 10, two or more physical drives in the logical drive
have failed.
• For a RAID 0 or JBOD, one physical drive has failed.

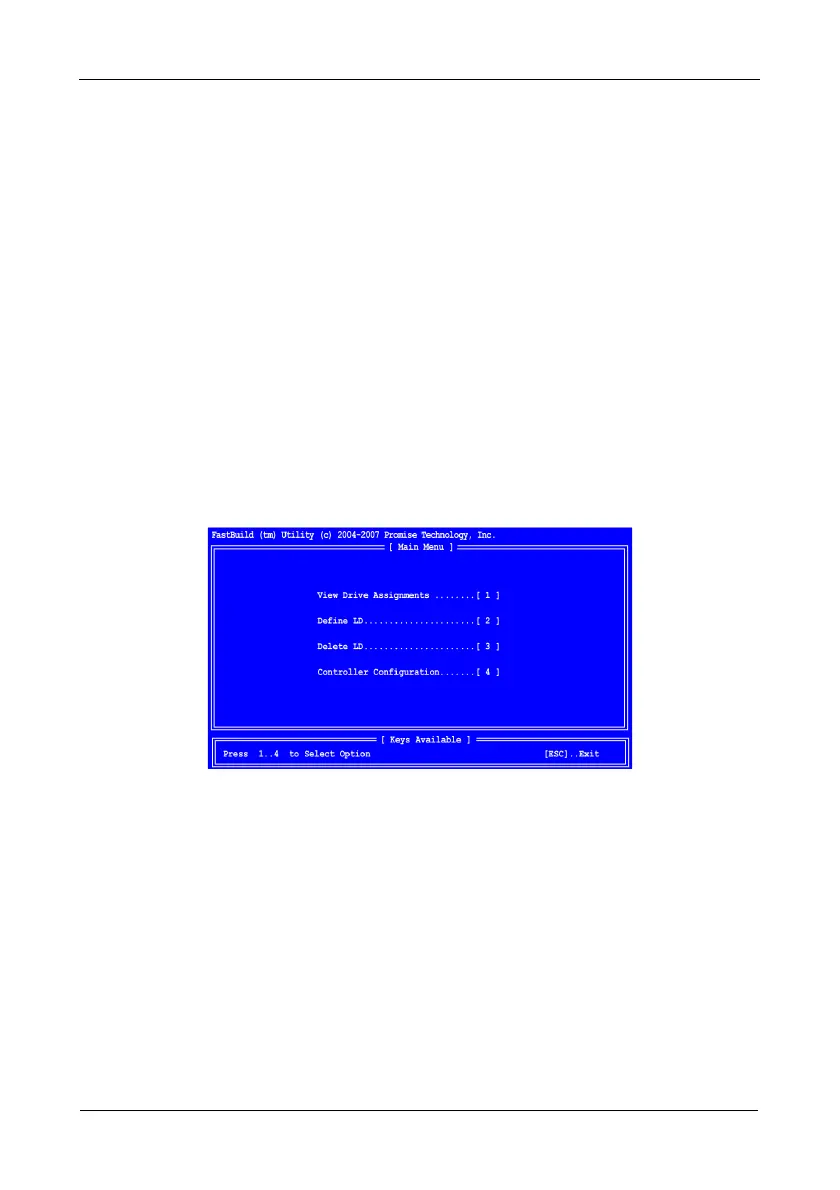

Navigating the Main Menu
When the FastTrak BIOS displays on your computer screen, press Ctrl-F to
launch the FastBuild utility and display the Main Menu.
The Main Menu (above) has five options:
• Press 1 to view physical drive assignments
• Press 2 to create a logical drive or view information about an existing logical
drive.
• Press 3 to delete a logical drive.
• Press 4 to view and change controller configuration.
• Press Esc (Escape) to exit the menu.
