FastTrak TX4650, TX2650 User Manual
52
Responding to Logical Drive Problems

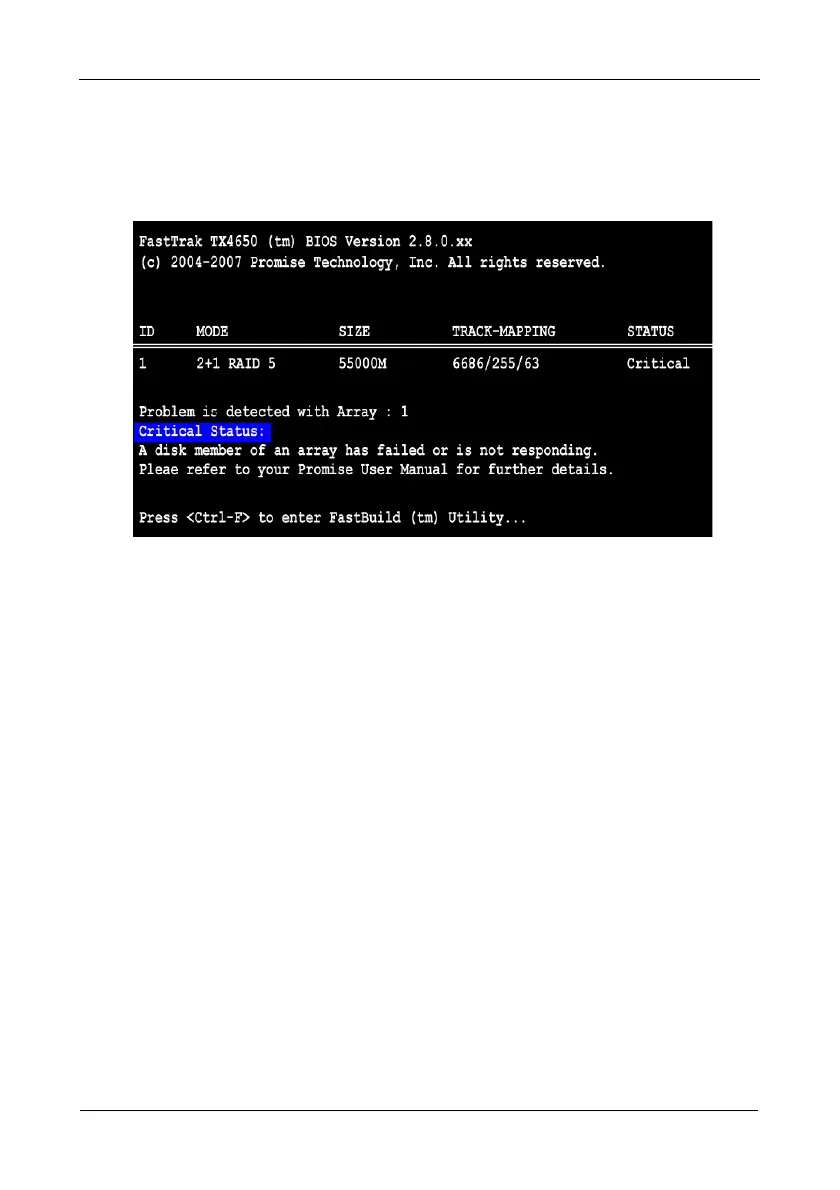

When you boot your system, the FastTrak BIOS screen informs you if there is a
critical or offline logical drive. RAID 1, 5, or 10 logical drives go Critical when one
physical drive fails. RAID 0 and JBOD go Offline when a physical drive fails.
Choose one of the following applications to identify the failed drive:
• FastBuild Utility – See “Finding a Failed Drive in FastBuild” below.
• WebPAM – Allow your PC to finish booting, then launch WebPAM.
See “Responding to a Critical or Offline Logical Drive” on page 101 for more
information.
Finding a Failed Drive in FastBuild
1. Press Ctrl-F to enter the FastBuild Utility.
2. In the Main Menu, press 1 to display View Drive Assignments, then look for a
physical drive that was present before but no longer appears.
The failed drive is attached to the missing channel.
In some cases, the FastTrak Controller will begin to rebuild your logical drive
automatically. From the Main Menu, press 2 to display the Define LD Menu
and look under Status.
• If the Status shows Rebuilding, wait for rebuilding to finish, then shut
down your PC and replace the failed drive. The replacement drive will
be Free (unassigned).
• If the Status shows Critical, shut down your PC and replace the failed
drive as soon as possible. The FastTrak Controller will begin rebuilding
your logical drive automatically.
