Proscend M350 Series - IP Routing Topology Test Case

M350 Series User Manual 208
17.3 IP Routing Topology

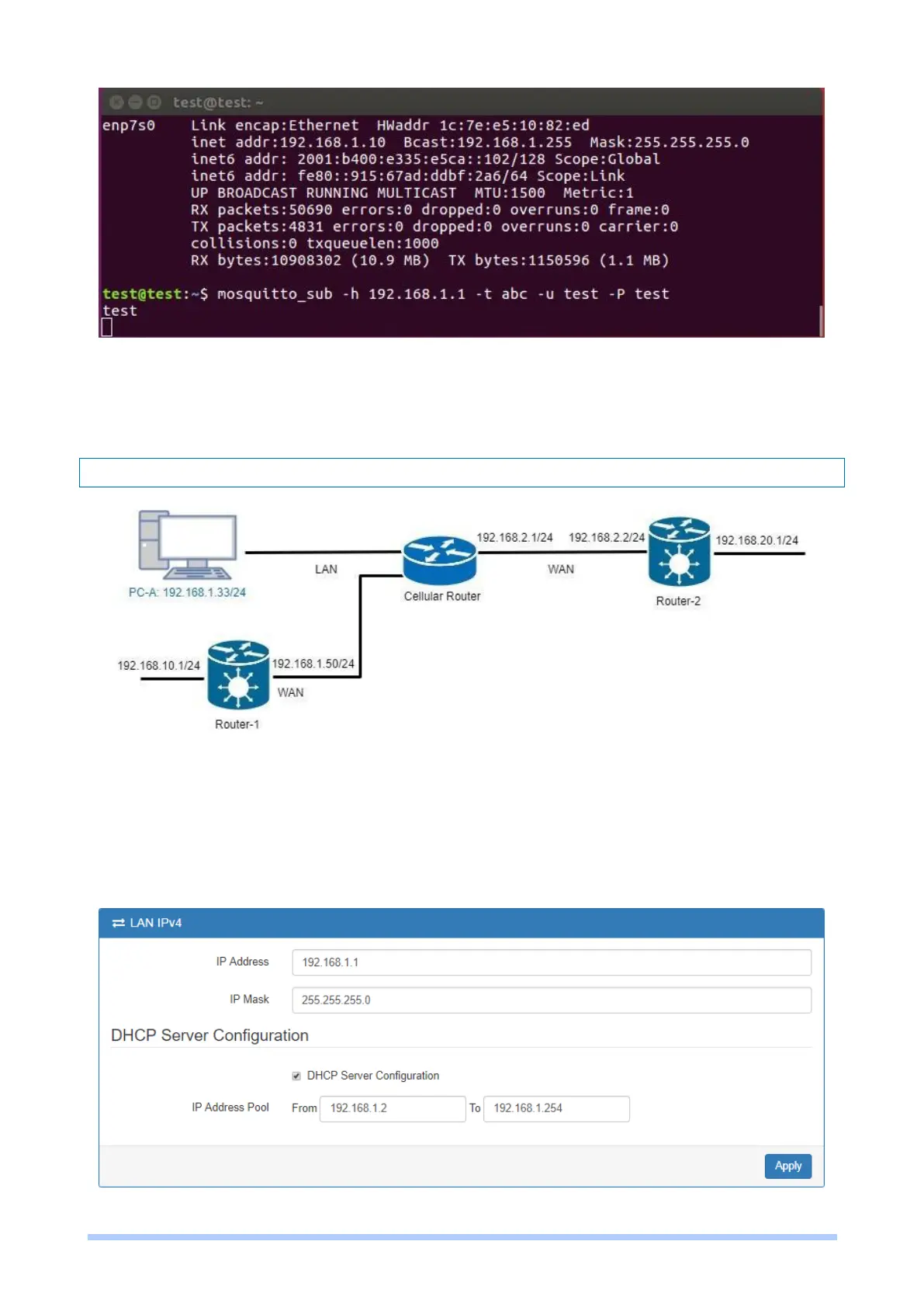

This IP Routing topology that thecellular routerconnects Router-1 and Router-2 will have two
results.
(1) PC-A sends ICMP packet to Router-1 LAN and WAN IP and they should have response.
(2) PC-A sends ICMP packet to Router-2 LAN and WAN IP and they should have response.
Note:Router-1 and Router-2 are pure routers and should be supported "NAT enable / disable".
 LAN configuration:
 WAN configuration:
