PRÜFTECHNIK VIB 5.300 Series User Manual

5-7
VIBXPERT 11.2010
Measurement tasks
F
A.1 Selecting the measurement task via the measurement task icon:
• Highlight the respective icon in the 'Advanced' tab.
• Press the F key to display the stored measurement tasks
• Select the required measurement task using the identifier.
The identifiers of the measurement tasks set up in the factory can
help in selection:
-D
UAL or 2-C: 2-channel measurements
-S
PEC or SPECTRUM: 'Spectrum RPM' measurement type
-O
VERALL VALUE: 'Overall Value - RPM' measurement type
-S
TARTUP: Runup
-C
OASTDOWN: Coastdown
A.2 Selecting the measurement task in the Task Manager:
• Highlight the respective icon in the 'Advanced' tab.
• Press the MENU key and click on 'Task Manager'.
• Click in the uppermost menu to display the stored measurement
tasks. The 'Show Dual Tasks' or 'Show Single Tasks' menu entries
display the available 2-channel or 1-channel measurement tasks
(see below)
• Select the desired measurement task.
• Select the desired measurement task.
B. Starting the measurement
• Click on the measurement task icon.
A dialog window appears in the measurement screen in which you
can temporarily change the following setup parameters:
-S
TART RPM, STOP RPM
- RPM DEVIATION
-MEASUREMENT RANGE.
• Click on 'Start' after the parameters have been set correctly.
During data collection, the relevant measurement data are dis-
played in a dialog window (see below).

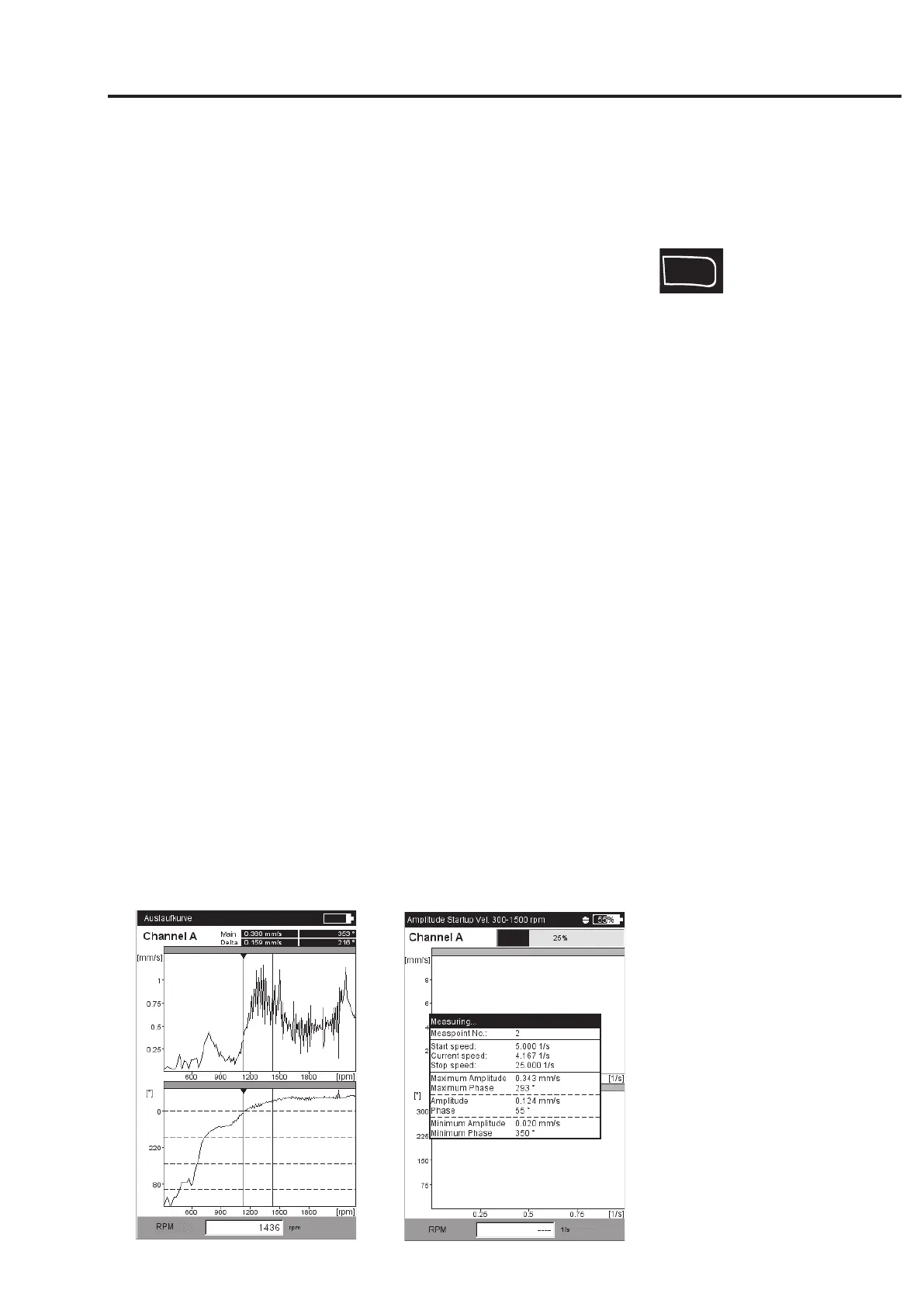

Left:
Runup / Coastdown
Phase - RPM (Bode plot)
Right:
Results screen during
a coastdown measurement
Phase - RPM
