6-10
VIBXPERT 11.2010
Appendix - VIBCODE
VIBCODE
VIBCODE is a vibration measurement system that uses coded mea-
surement points for certain identification of measurement locations
on the machine. The system consists of the VIBCODE sensor and the
VIBCODE measurement location.
Note also the respective installation and operating manuals:
VIBCODE, art. no.: VIB 9.834.G

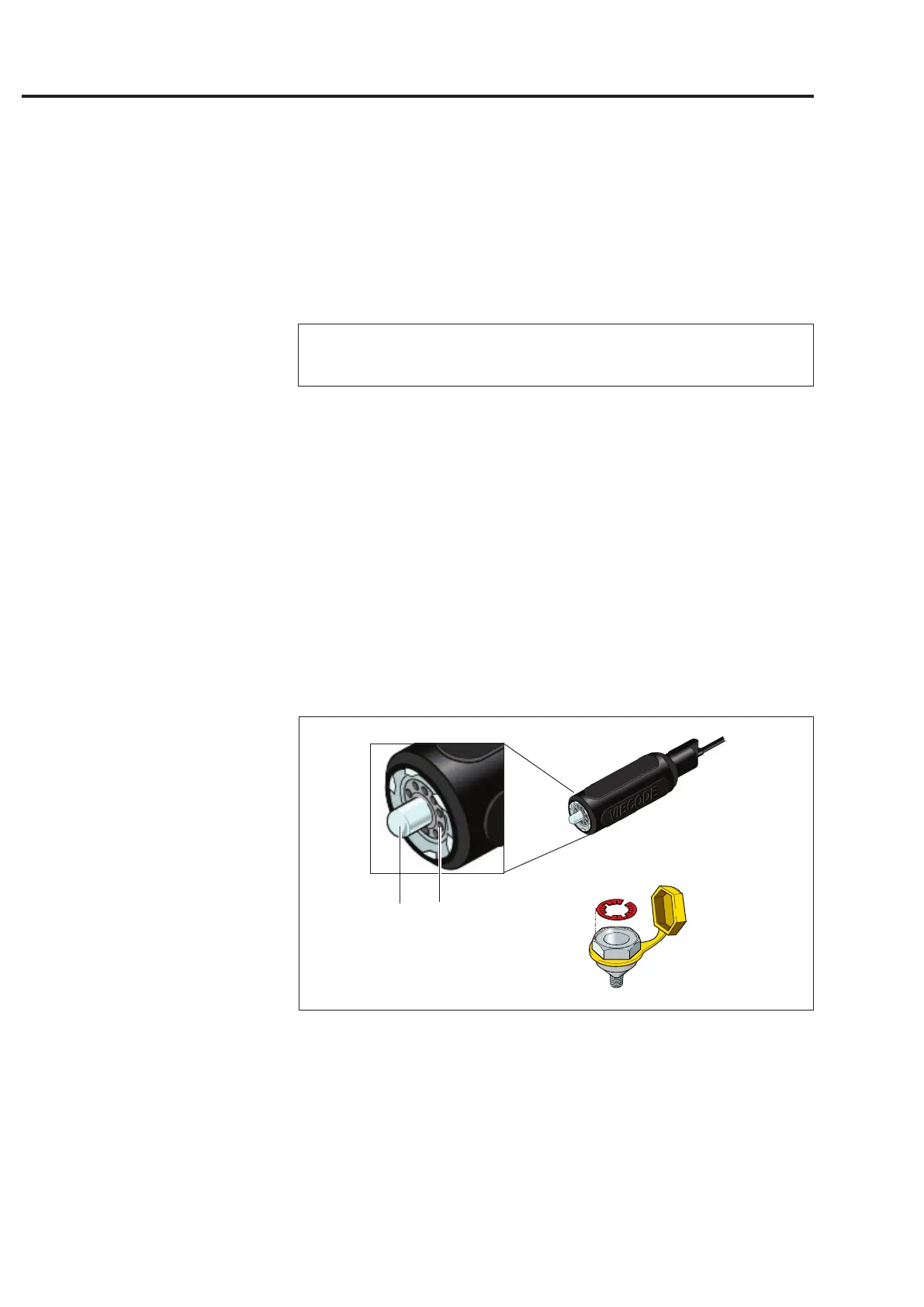

Mechanical coding
VIBCODE sensor
The sensor head contains a piezoelectric accelerometer that measures
the vibration signals via the measuring pin. Several pressure-sensitive
sensors are arranged as a ring around the vibration sensor. When
coupled to a measuring pin, these sensors detect the pattern in the
plastic ring in the measuring pin. This coding identifies the measure-
ment location to the connected evaluation device and determines
which measurement tasks are to be performed on it.
VIBCODE measurement location
The measuring pin contains a plastic code ring that obtains a unique
identity - similar to a fingerprint - through the removal of individual
teeth.
Note
Code ring
Dust cap
Measuring pin
Sensors for
code ring
Accelerometer
