3-34
VIBXPERT 11.2010
Triaxial sensor
Triaxial sensor (Route)
A triaxial sensor may not be used with VIBXPERT EX!
A triaxial sensor simultaneously records machine vibrations in three
axes (X/Y/Z). VIBXPERT supports the use of a triax sensor in the
route as follows:
- The three axes of the sensor are mapped in the database with the
aid of three measurement locations. The assignment is created in
the OMNITREND software.
- In OMNITREND, a sensor of type ‘ICP’ must be assigned to the
measurement tasks.
- Because VIBXPERT only has two measurement channels, a special
cable adapter (VIB 5.336) is required that groups the second and
third signal line (Y/Z) on channel B.
- The measurement tasks for the X and Y directions are grouped by
VIBXPERT into a 1+1 measurement and simultaneously recorded
in channels A and B. VIBXPERT then records the measurements in
the Z axis.

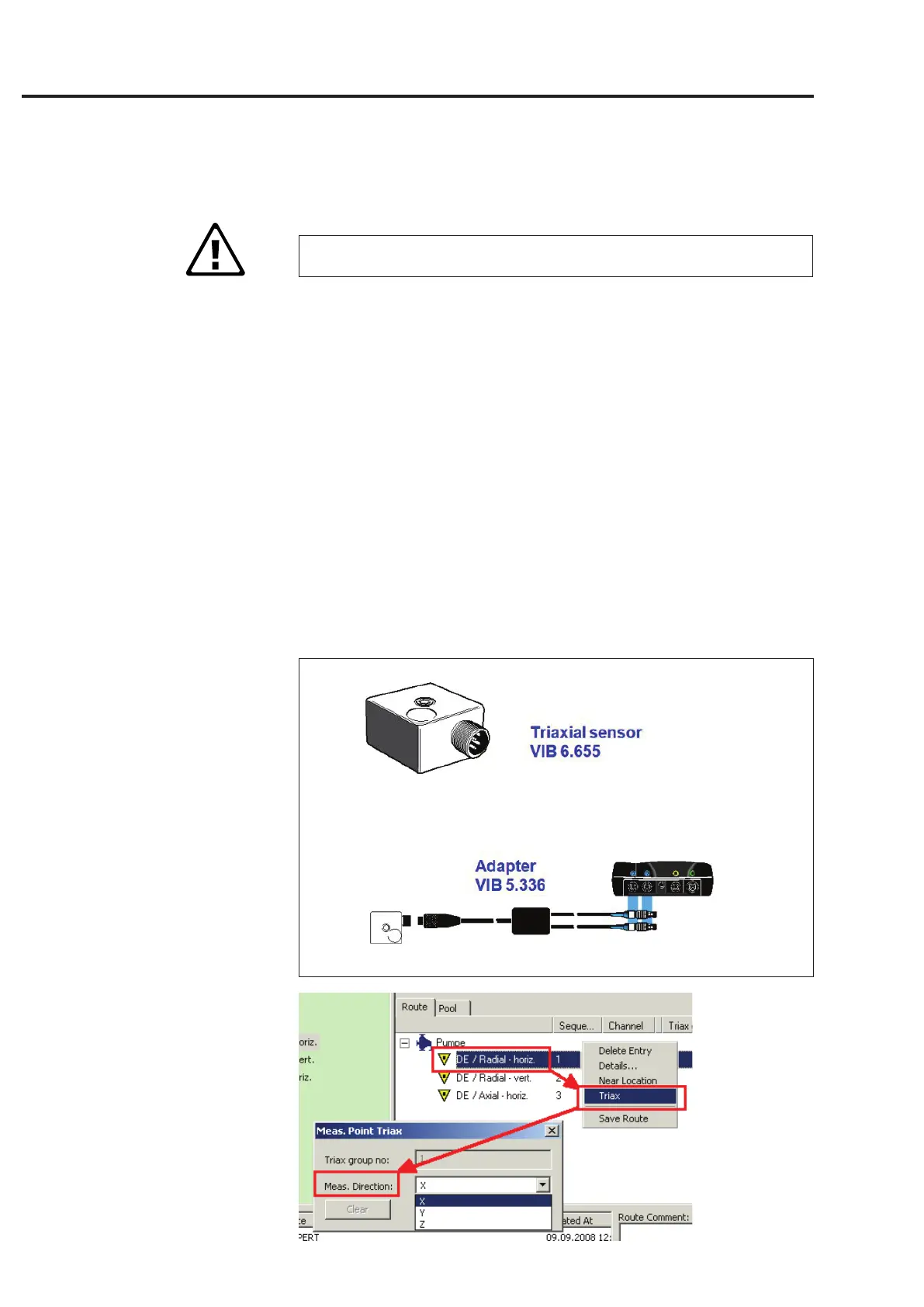

Triaxial sensor
Wiring diagram
Attention!
One measurement location for every
measurement direction
