Measurement tasks
Multi-measurement task ('Multitask')
A multi-measurement task shortens the measurement times by
combining several, similar measurement tasks*. It is particularly
time-saving in the case of measurement tasks that are measured at
the same measurement location with the same transducer and the
same filter settings. In this case, VIBXPERT only carries out one signal
measurement and calculates the results of the individual measure-
ment tasks from this.
Initially, no measurement results appear in the Results screen, just
information on the status of the measurement together with the
assessment of the results (see below).
Evaluating the results
The evaluation of the results is carried out on the basis of the stored
thresholds. If a threshold is exceeded, the corresponding symbol
appears in the 'Status' column (see below left).
• For a detailed view of the evaluation scale, press the MENU key
and click on 'Evaluation Overview' (see below).
Result of the single measurements
• After the measurement, move the joystick until a black frame
appears around the list field.
• Click with the joystick to activate the list field.
• Click on the measurement in the list whose result is to be
displayed.
Alternative:
Highlight the measurement, press the MENU key and click on
'Display Result'.
• Press ESC to return to the list field.
* e.g. shock pulse characteristic value +
envelope + velocity spectrum
Alarm
Warning
Prewarning
Measuring
Measured
Error

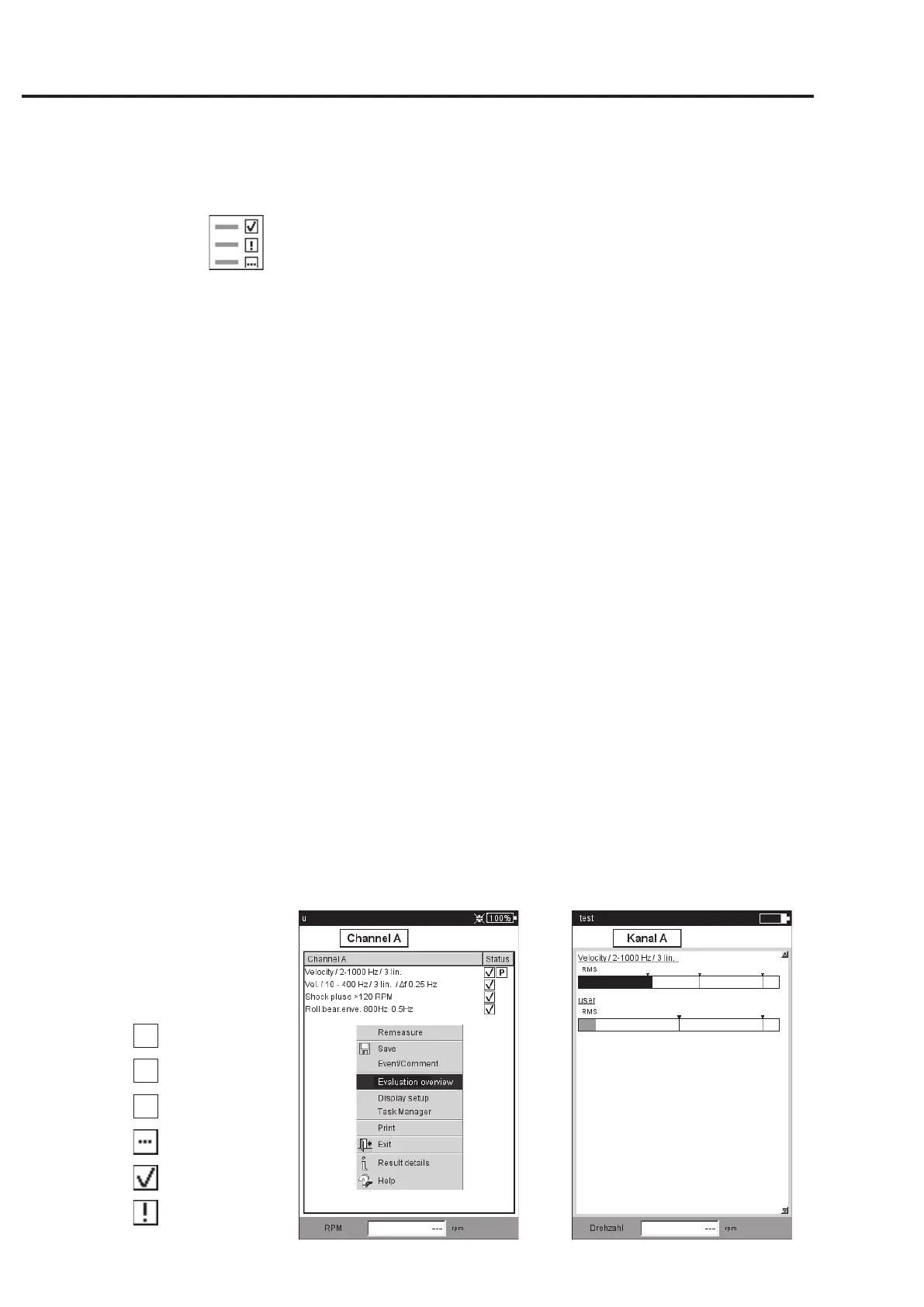

Status / evaluation icons
A
W
P
Prewarning
Multitask
Result display (left)
Evaluation (right)
