2-3
VIBXPERT 11.2010
Getting started

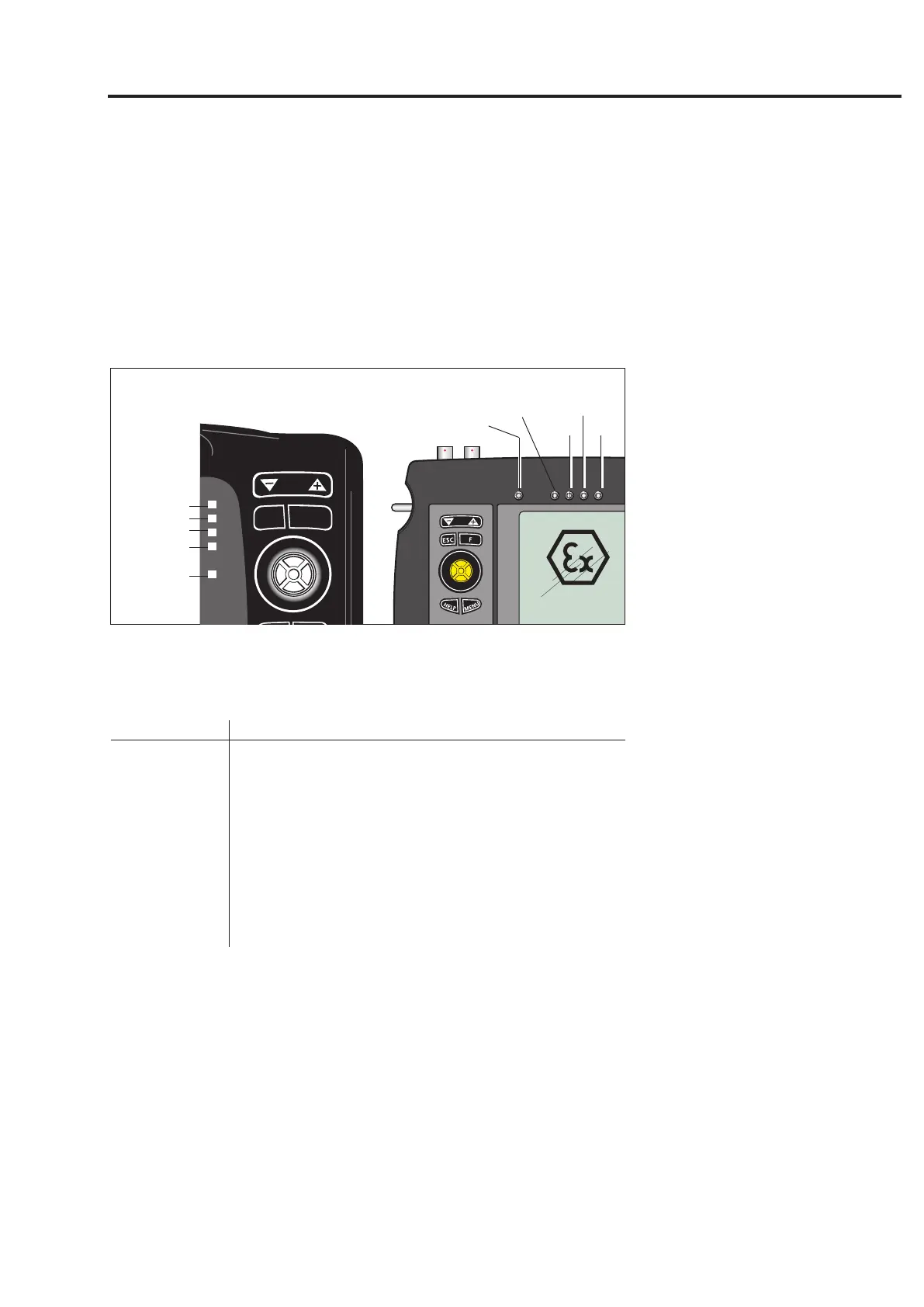

Status display per LED
Four colored LEDs indicate threshold violations, errors, and system
status and show the battery status while charging in the device.
Flashing LEDs have the higher priority, i.e RED flashes with signal
overload and alarm level exceeded.
Ambient
light sensor
RED
YELLOW
GREEN
BLUE
Arrangement of the LEDs on
VIBXPERT (left) and on
VIBXPERT EX (right)
F
E
S
C
RED
YELLOW
GREEN
BLUE
Ambient
light sensor
LED RED YELLOW GREEN BLUE
constant Alarm Warning Prewarning Meas. OK
flashing slow Signal Signal Measurement Battery
overload unstable incomplete almost empty
flashing fast Battery --- Trigger signal ---
empty*
constant Error Battery Battery full ---
charging
Status and alarm indication
Battery status during charging
