2-1
VIBXPERT 11.2010
Getting started
Chapter 2: Getting started
VIBXPERT FFT data collector and signal analyzer

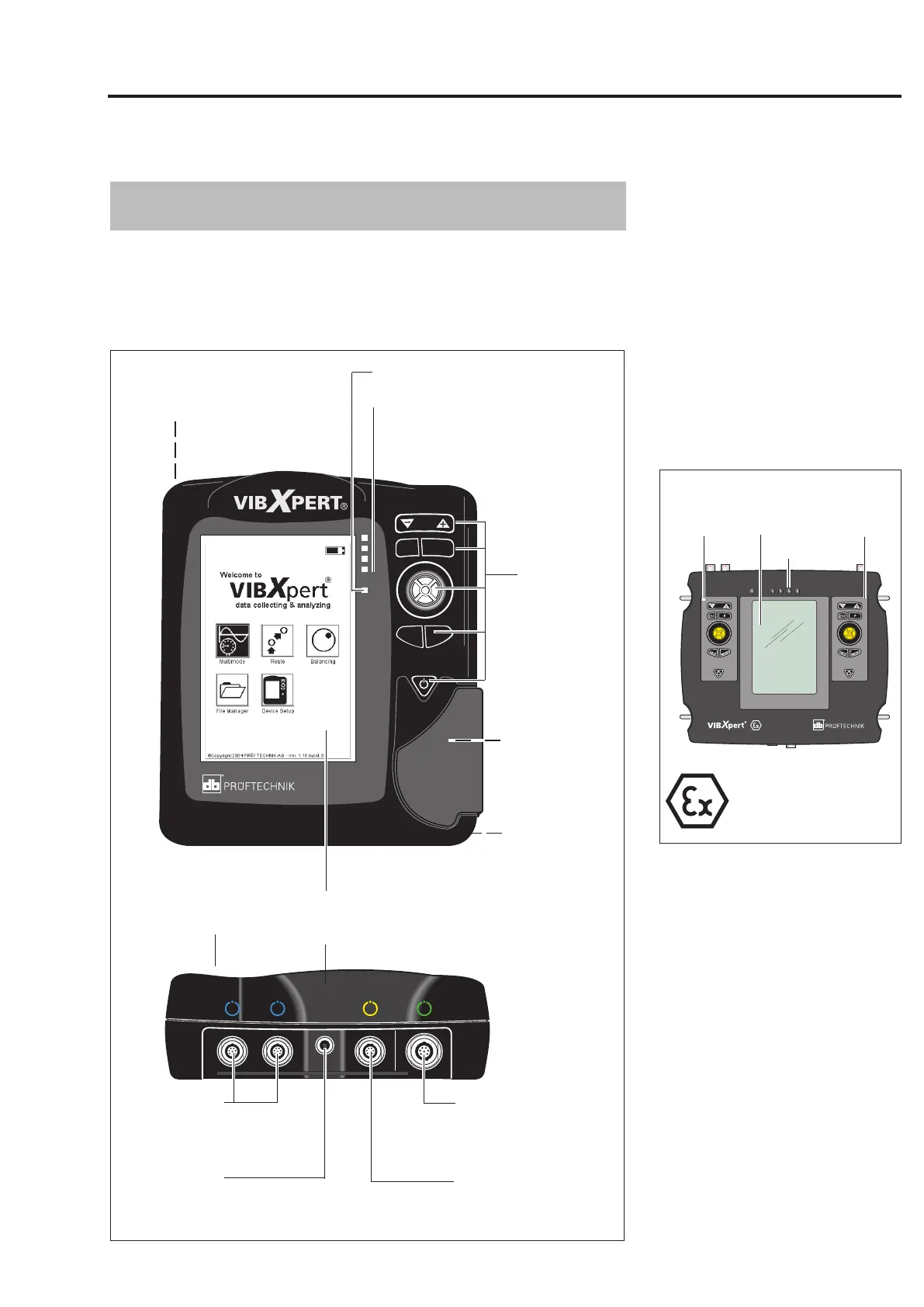

The illustrations show the interfaces and operating elements of the
measurement device without explosion protection (below) and with
explosion protection (right):
Memory card
- Data memory
- Replaceable
Keyboard &
joystick:
- Operation
(see page 2-2)
Rechargeable
battery
VIBXPERT, intrinsically safe
(Interfaces, see page 2-6)
LEDs
Control
panel
Display
Control
panel
F
E
S
C
M
E
N
U
H
E
L
P
LEDs:
- Alarm indication
- Error
- Charge status
Light sensor:
- Keyboard illumination
Additional key:
ENTER
Display
with start screen
Analog (A/B):
- Meas. channels
- Charg. sockets
Communication:
- Ethernet
- USB
Digital:
- Trigger / RPM
- Serial port (RS 232)
- Signal output
Temperatur:
- Thermocouple
(type K)
BA
Keyboard &
Joystick
