3-14
VIBXPERT 11.2010
Preliminary remarks
In principle, a machine template is set up like a route and resembles a
route in operation and workflow (see previous section). The differ-
ences to a route are described in the following points:
Machine description
This must be identified with a name before the first measurement.
Additional data for documentation purposes (such as serial number,
model, customer, and tester) can also be entered.
Production test
During a production test, the automatic call up of the next measure-
ment task is deactivated. In this way it is possible to carry out the
same measurement task under different operating conditions within
the scope of a production test. The remaining measurement tasks are
called up manually by joystick navigation.
To create a template for a production test, the ‘Production test’ option
must be activated in the OMNITREND template editor (see below).
In the case of templates for production tests, the measurement
location hierarchy on the machine is only shown in the tree view. A
list view is not available. The number of measurements carried out
for each measurement location and measurement task appears
instead of the status information.
Number of measurements
per measurement task (in
this case: 0.3)
At location 'Motor Axial':
3 measurements per 2
measurement tasks
(= 1.50)

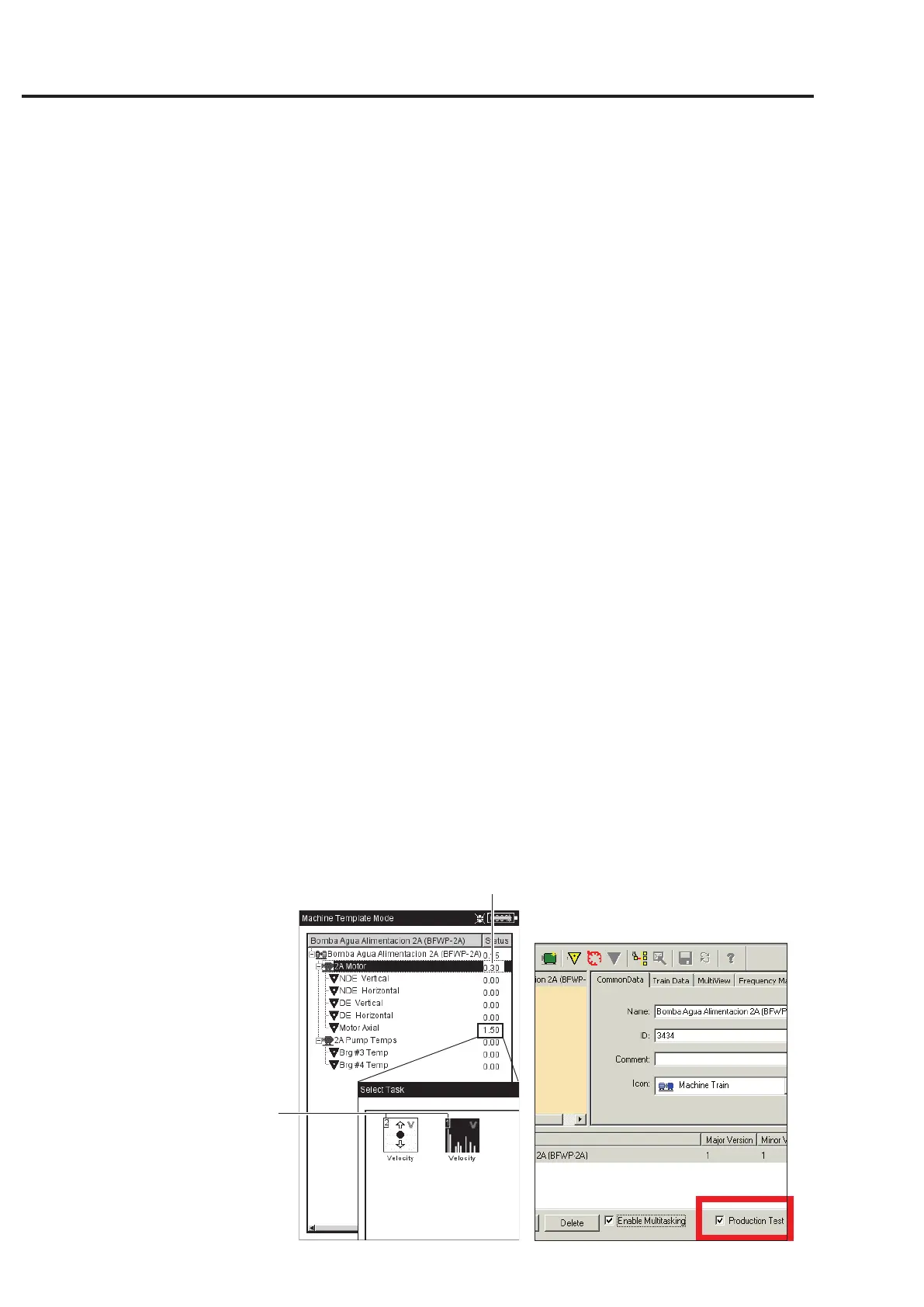

Measurement - Machine template
Left:
Template for 'Production test'
and selection of the meas. task
Right:
‘Production test’ option
in the OMNITREND template editor
