Psion Teklogix 7535/7530 Hand-Held Computer User Manual 23
Chapter 2: Basic Checkout
Configuring An IEEE 802.11 Radio In The Unit
2. Choose the radio icon to open the 802.11b Wireless LAN Settings
window – in the sample screen, this is labelled $NETWLAN1.

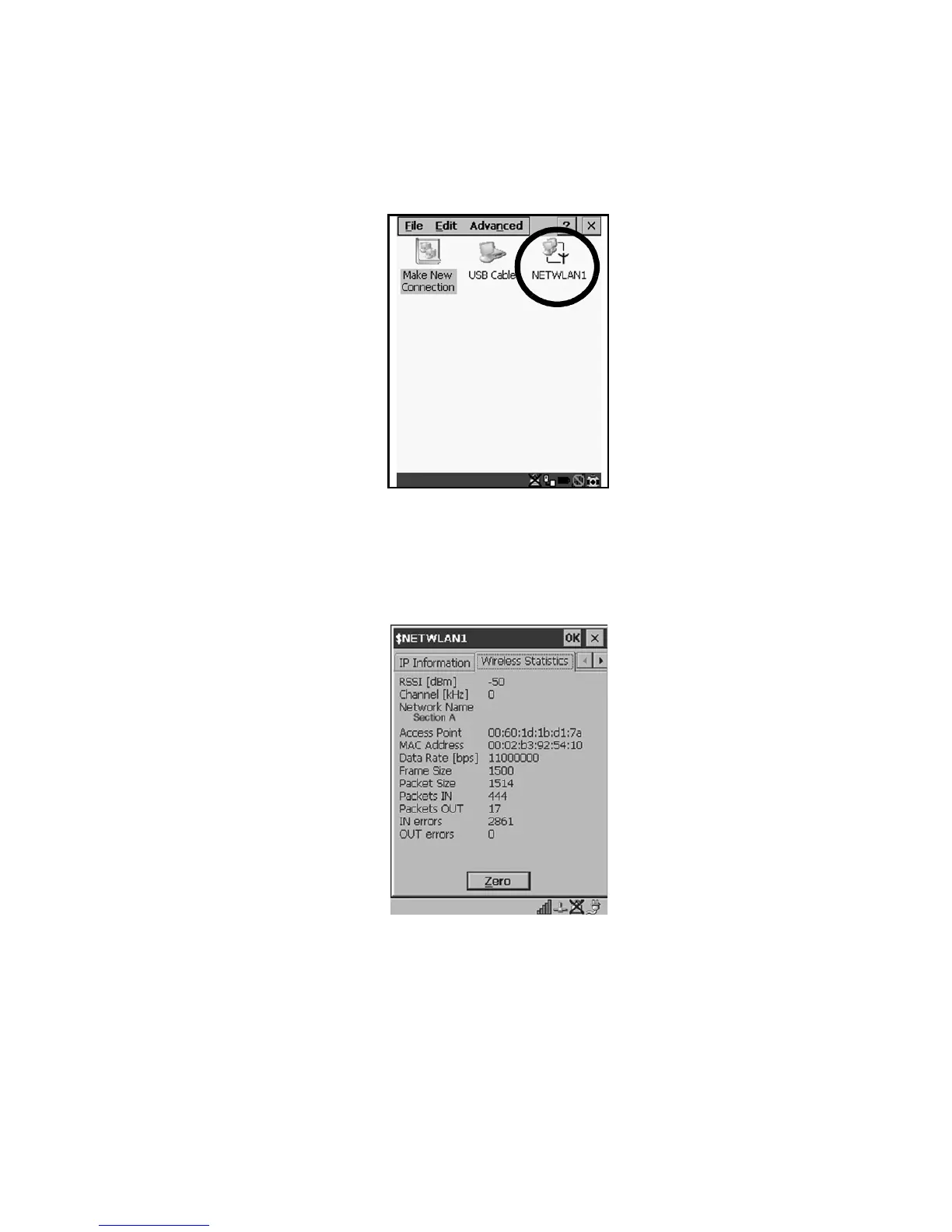

Figure 2.6 802.11b Wireless LAN Settings Window
3. Wireless Statistics Tab
When you choose the Wireless LAN icon, an 802.11b Wireless LAN
Settings window ($NETWLAN1 in the sample below) is displayed.
Figure 2.7 Wireless Statistics
This tab lists your radio statistics. Choosing the Zero button resets the
statistics of the last four items – Packets IN, Packets OUT, IN errors and
OUT errors.
• Display the next tab in this window – Wireless Information.
