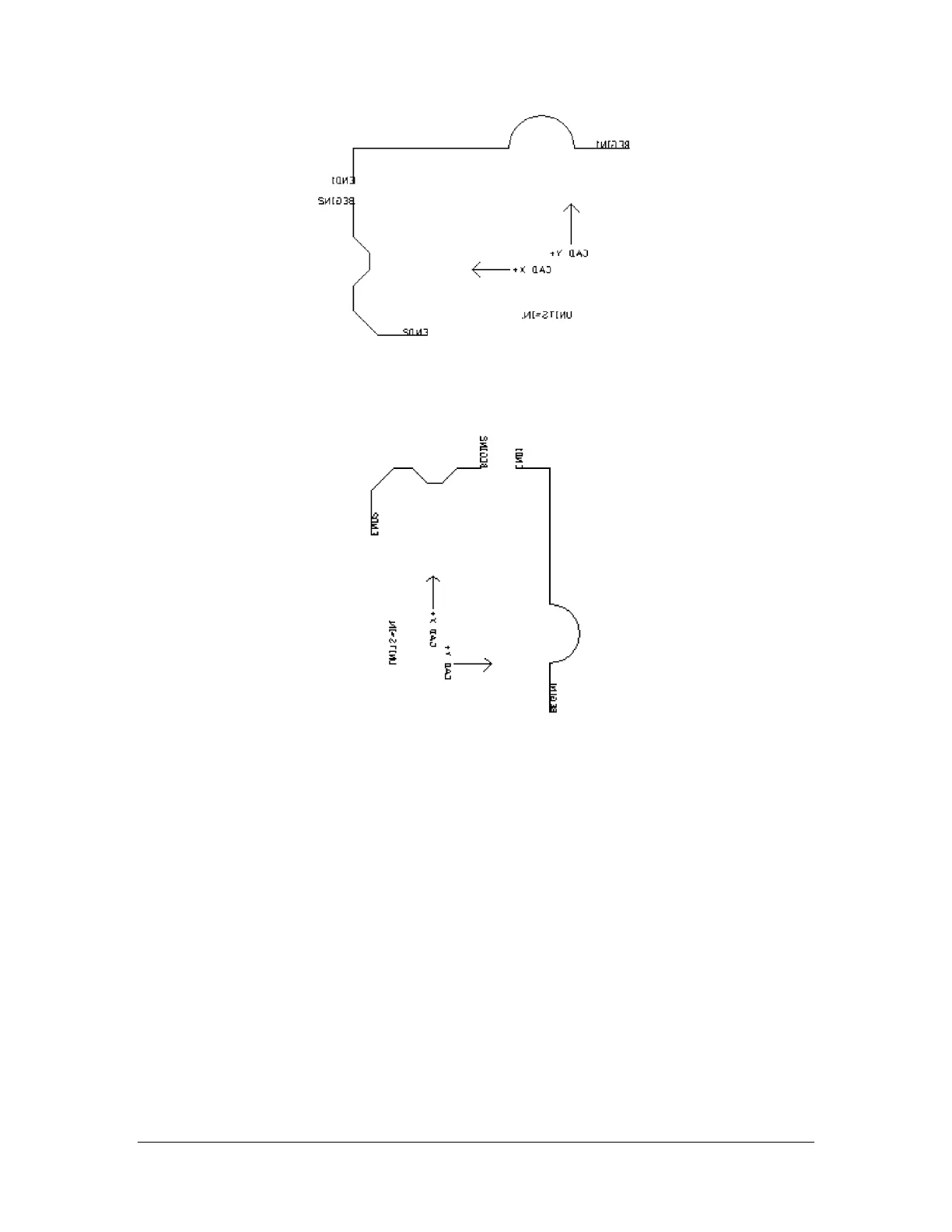

Figure 2: CAD drawing Mirrored on Y axis
The drawing must be Rotated Clockwise 90 degrees (-90deg for standard AutoCAD Setup). (Figure 3)
Figure 3: CAD Drawing rotated 90deg.
The final step is to export the file to a *.dxf.
