APPENDIX
134
Appendix H – Media Retainer Guide Kit
The Media Retainer Guide Kit (part # 47-900-15) is an optional accessory.
Media Retainer Guides can be used to hold down uneven or wavy
media as it feeds into the Printer, to help prevent media jams.
They attach to the Media Thickness Cross Bar and adjust to fit
media width.

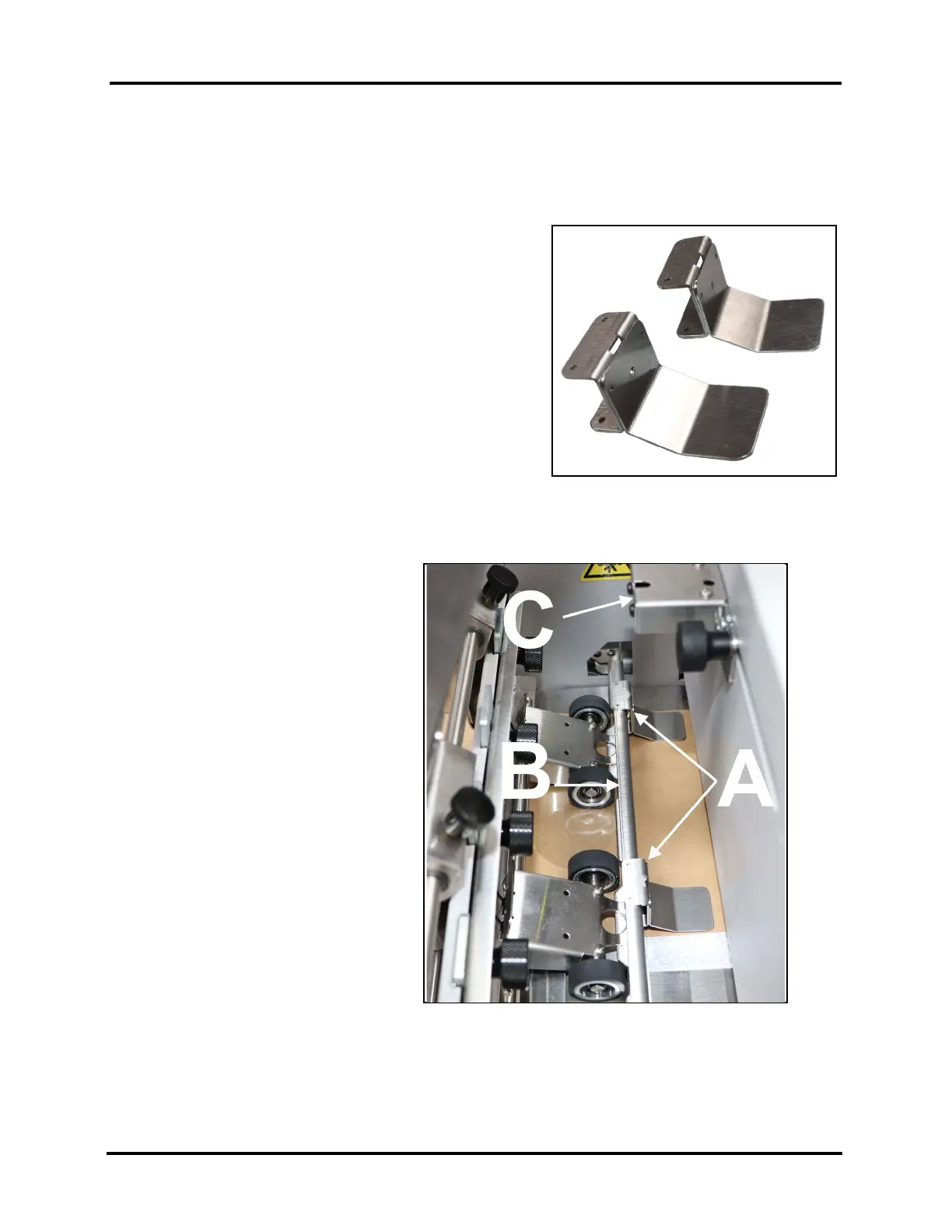

47-900-15 Media Retainer Guide Kit includes:
(2) Media Retainer Guides.
Tools Needed: None
To Install:
1. Attach the Guides [A] to the Media
Thickness Cross Bar [B] as shown.
2. The Guides should be spaced so they
cover the outer edges of the media
being fed.
ATTENTION: Make sure the Guides
[A] do NOT obstruct the Media
Sensors, located within the
Feeder/Entry Sensor Assembly [C]. If
they do, move the Guides and/or the
Feeder/Media Entry Sensor
Assembly.
