Appendix F – Magnetic Media Support Assembly
The Magnetic Media Support Assembly (part # 47-116-25) is an optional accessory.
The Magnetic Media Support Assembly fits over the
Center Plate Support Bar. A strong magnet holds it
tight against the Center Plate. Allows feeding of
envelopes bottom edge first (i.e., flap is on the on
trailing edge) to prevent the flap from opening,
catching or skewing the envelope. Helps prevent
misprints and media jams.
Use 1, 2 or more as needed for your print job.
NOTE: It is strongly recommended that the Assembly
be used in pairs.
Magnetic Media Support Assembly (47-116-25)

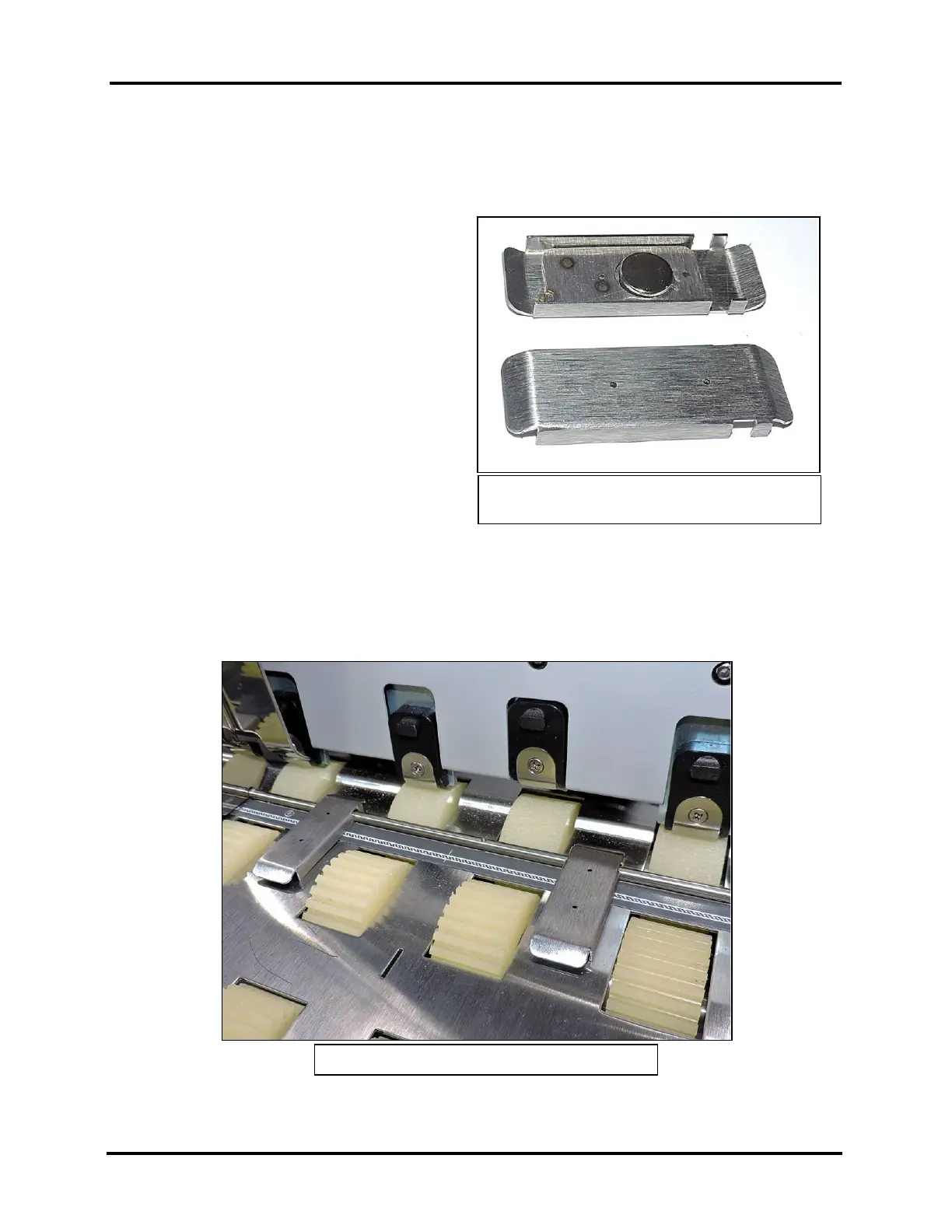

consists of one (1) of the items shown to the right.
If you need two, please order two (2).
Tools Needed: None
To Install:
Place the Assembly between Feed Rollers and over the Center Plate Support Bar, as shown below.
Image above shows two (2) Assemblies
(one up-side-down and one right-side-up)
Image above shows two (2) Assemblies
