INSTALLING HARDWARE REMOVING A SAS 6GB MEZZANINE CARD
2-39
5. Remove the module assembly from the chassis.

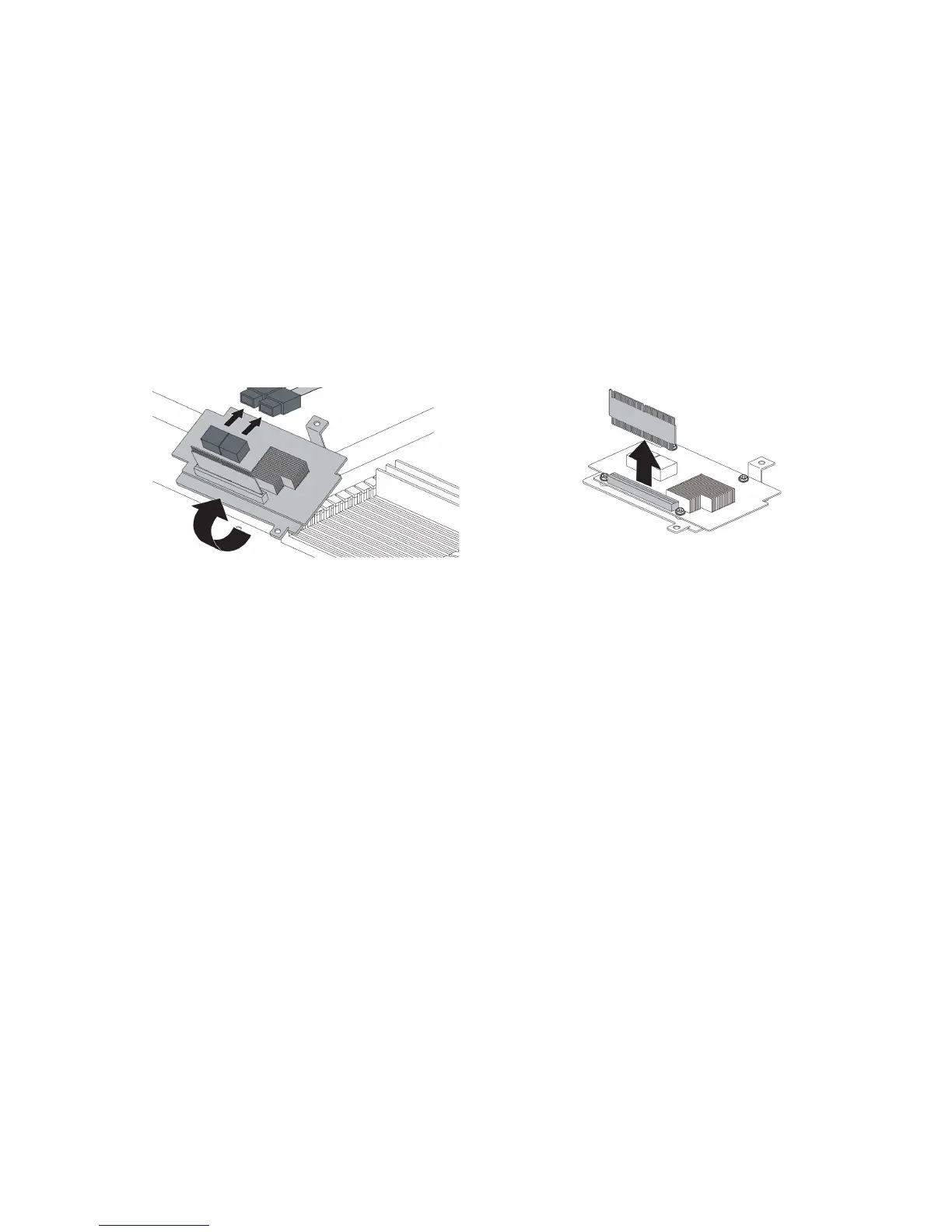

Figure 2-57. 6G Module Assembly and SAS Cables
6. Disconnect the SAS cables from the ports on the module.
7. Disconnect the linking board from the module connector.
Figure 2-58. 6G Linking Board and Module Connector
5
6
