882 Video Test Instrument User Guide (Rev A.35) 577
Note: The DVSC command can be used to set the swing value between 150 and 1500
mVp-p.
Method To adjust the swing in 6 mV increments, press the Contents key and then the Options key.
You then enable More and use the +/- increment keys to proceed through the subimages.
Dyna

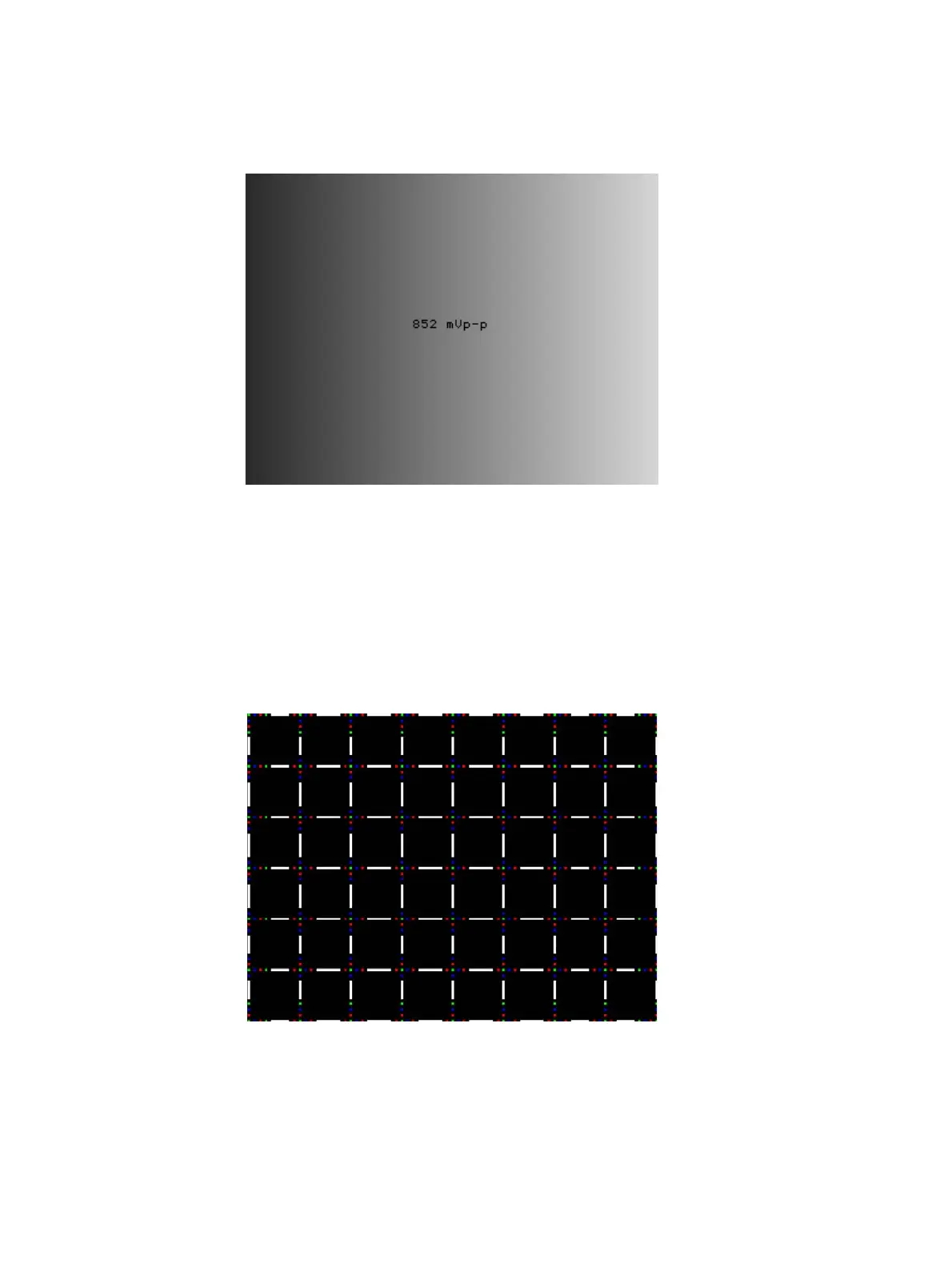

Description This image has multiple versions that display different sizes of the same pattern. Version 0
is shown below.
