882 Video Test Instrument User Guide (Rev A.35) 135
Running HDCP compliance tests on HDMI repeaters
To run the 3A and 3B series HDCP compliance tests on an HDMI repeater:
1. For the 882E analyzer connect the cables as follows:
a. Apply power to the Encryption Status Tester (EST) using the power adapter
supplied with the EST.
b. Connect an HDMI cable from the repeater device under test output to the EST
HDMI port labeled, “HDMI IN.”
c. Connect an HDMI cable from a compliant source device output to the input of the
repeater device under test.
d. Connect an HDMI cable from the 882 HDMI Rx 1 port to the EST HDMI port labeled
“HDMI OUT.”
e. Connect an HDMI cable from the 882 HDMI Tx 2 port to the EST HDMI port labeled
“HDMI.”
f. Connect an HDMI cable from the 882 HDMI Tx 1 port to the HDMI input of the
display device (used to monitor the video).

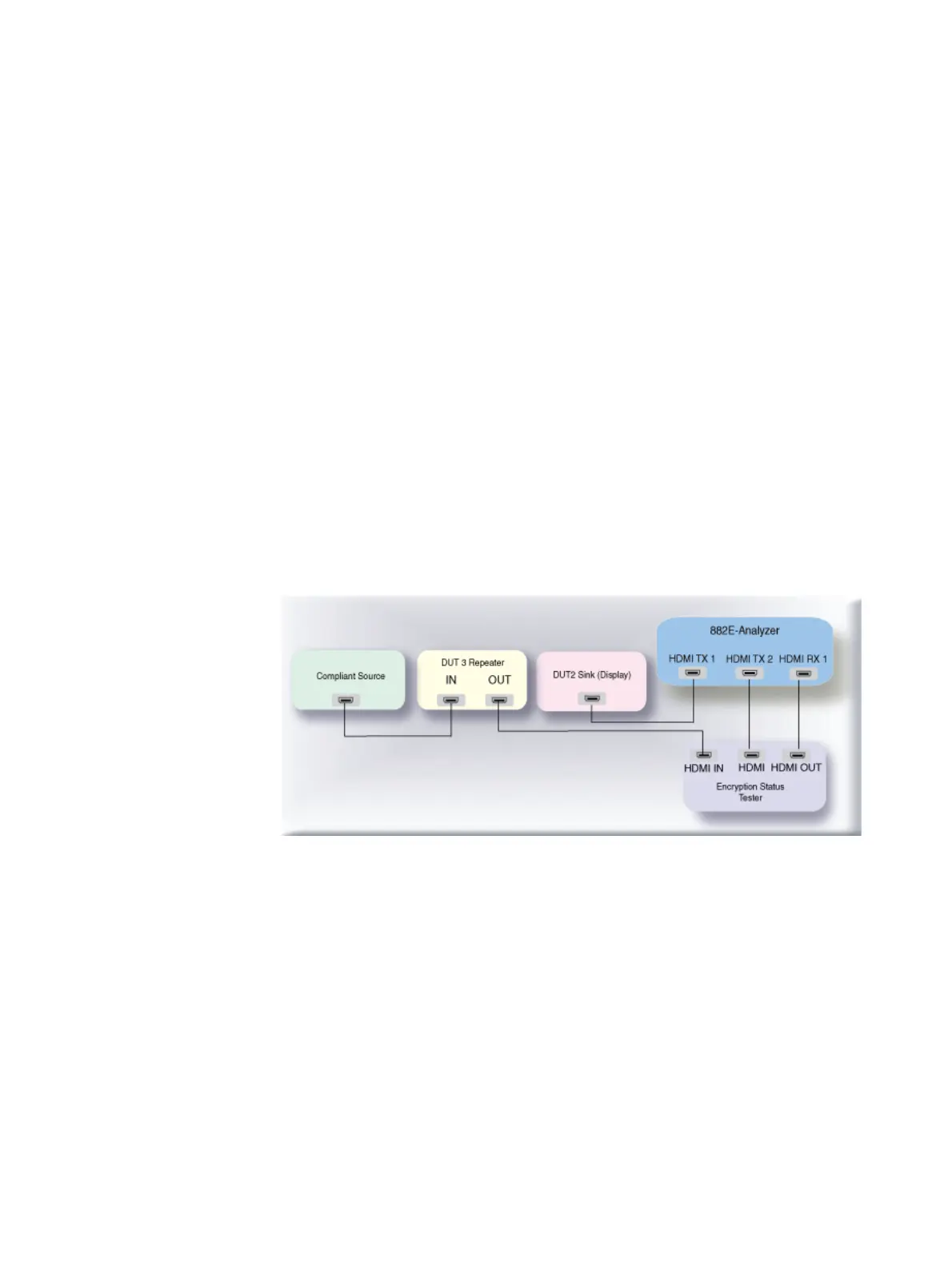

The following diagram depicts the test setup for the 882EA:
