882 Video Test Instrument User Guide (Rev A.35) 77

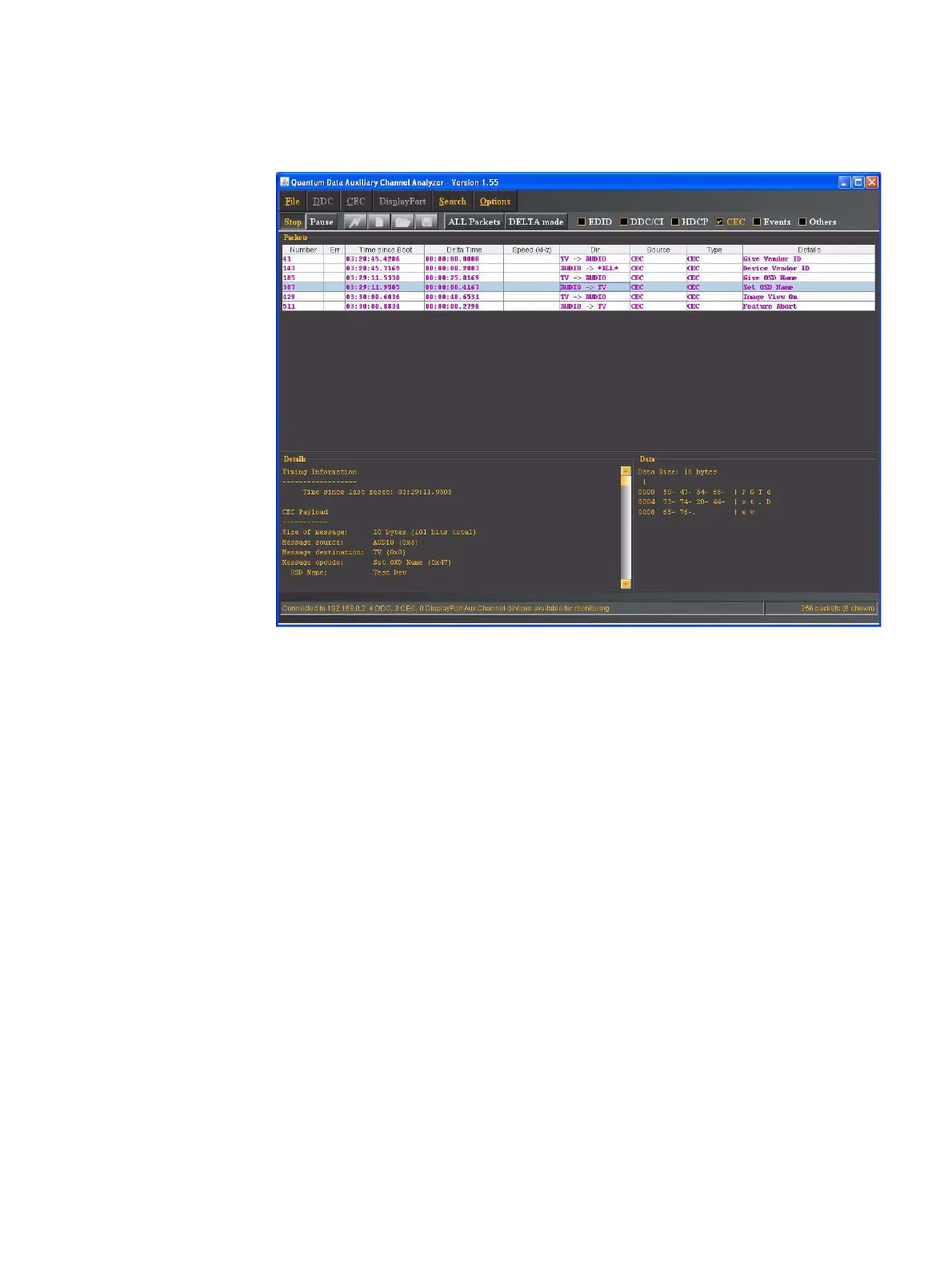

4. Click the Capture activation button to monitor the CEC messages. A sample screen
shot of the ACA logging some CEC messages is shown below.
Stress testing a CEC device
The CEC ITE provides both a command driven interface and a graphical Java-based
application (CEC/CDC Controller) for stress testing CEC devices under test. The features
in the ITE command line or CEC/CDC Controller can be used to verify certain compliance
related tests under various adverse conditions such as boundry testing of timing,
arbitration, corrupt bit timing, and acknowledgement.
Setting up the CEC/CDC Controller
You access the CEC/CDC Controller through the generator’s web home page.
