882 Video Test Instrument User Guide (Rev A.35) 189
Format Editor - New Source Menu
This subsection defines the New Source Menu dialog box. The New Source Menu dialog

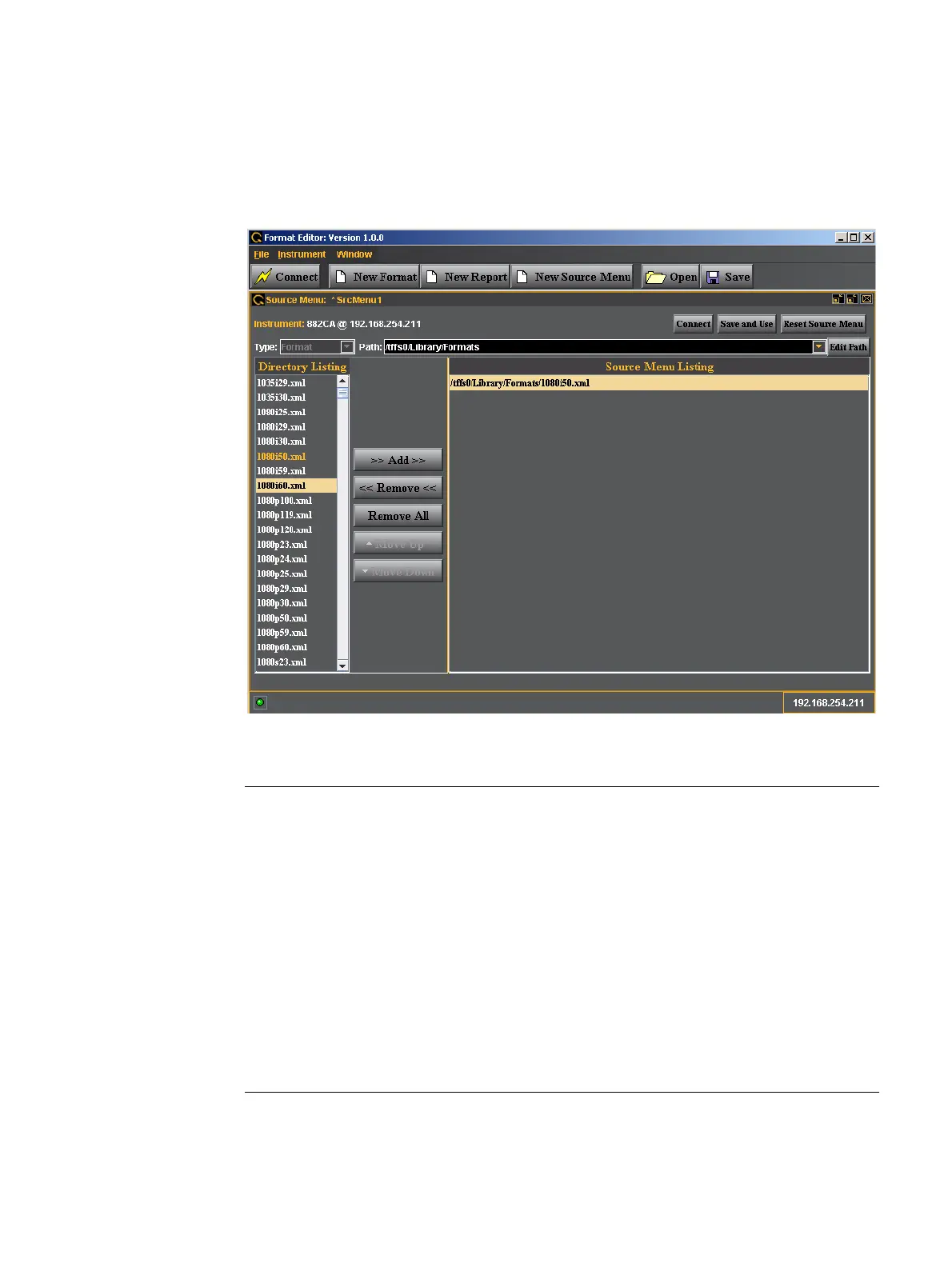

box is shown below:
The table below describes the top panels fields, activation buttons and pull down menus.
Entity Type Description / Function
Instrument
(Connection Status)
Status text field Shows the current connection status.
Connect Activation Button Enables you to connect to an 882 generator. When
clicked a dialog box will pop up enabling you to specify
an IP address to connect to.
Save and Use Activation Button Enables you to save the format source list to the
generator you are connected to and then apply this list
to the current generator configuration.
Reset Source Menu Activation Button
Type Pull-down menu Always set to Format.
Path Entry Field The path to the directory where the list of formats used
to configure a source list.
Edit Path Activation Button Enables you to change the path to a list of formats.
