882 Video Test Instrument User Guide (Rev A.35) 313

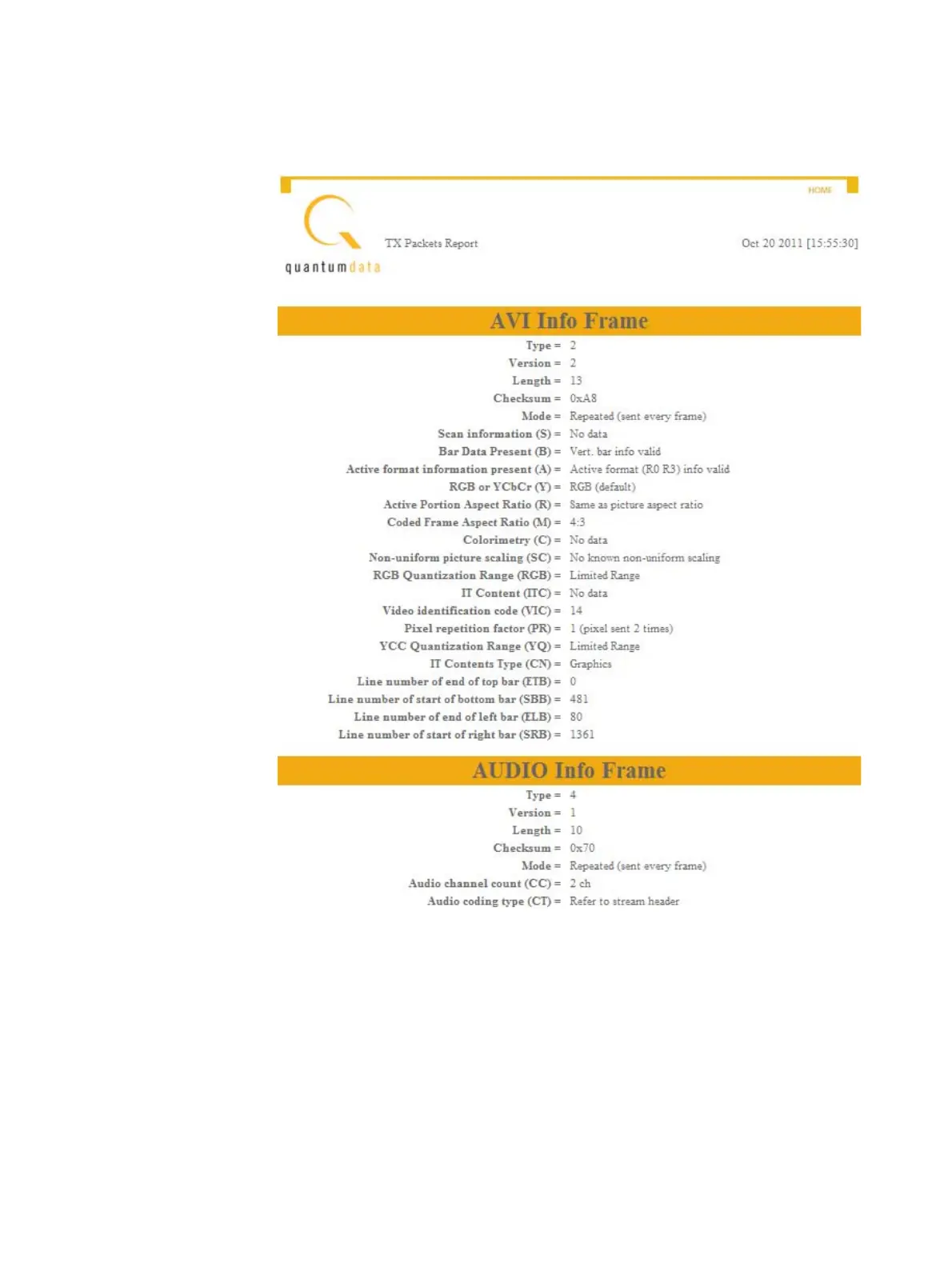

7. Navigate to your PC and double click on the report. A sample of part of the PacketTx
report is shown below.
Testing with Active Format Description (AFD) (882 only)
When transporting HDMI video images from a source to a display, different formats may
be used between the content, transmission signal, and display. To provide compatibility
between the different formats, Active Format Description (AFD) is used.
Note: This feature is not supported on the 881 generator.
