624 Appendix B Image Reference

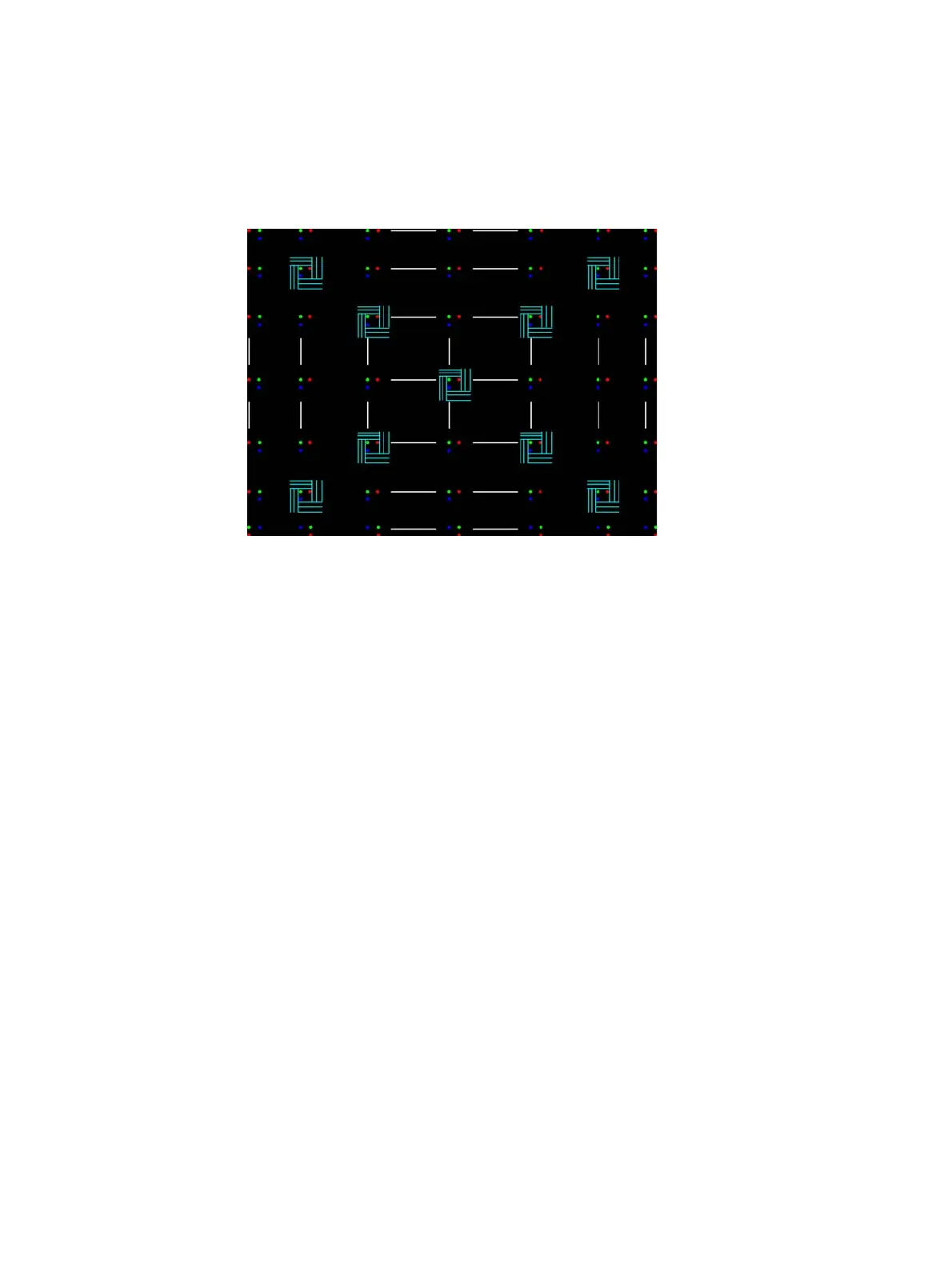

P10
Description Special test image developed per customer specifications. There are four versions of this
image.
After pressing the Contents key and then the Options key you then enable More and use
the +/- increment keys to proceed through the subimages to select up to 4 different
versions of this image.
PacketRx
Description Displays the InfoFrame data received by HDMI receiver. For more information, see
“Testing HDMI transmit device InfoFrame capability” on page 286.
PacketTx
Description Displays the InfoFrame data transmitted from the HDMI transmitter. For more information,
see “Viewing InfoFrame contents (882 only)” on page 308.
