882 Video Test Instrument User Guide (Rev A.35) 627
A fading tail left behind by the faster moving boxes indicates that the display may not be
suitable for viewing animated images.
PgBar64H, PgBar64V

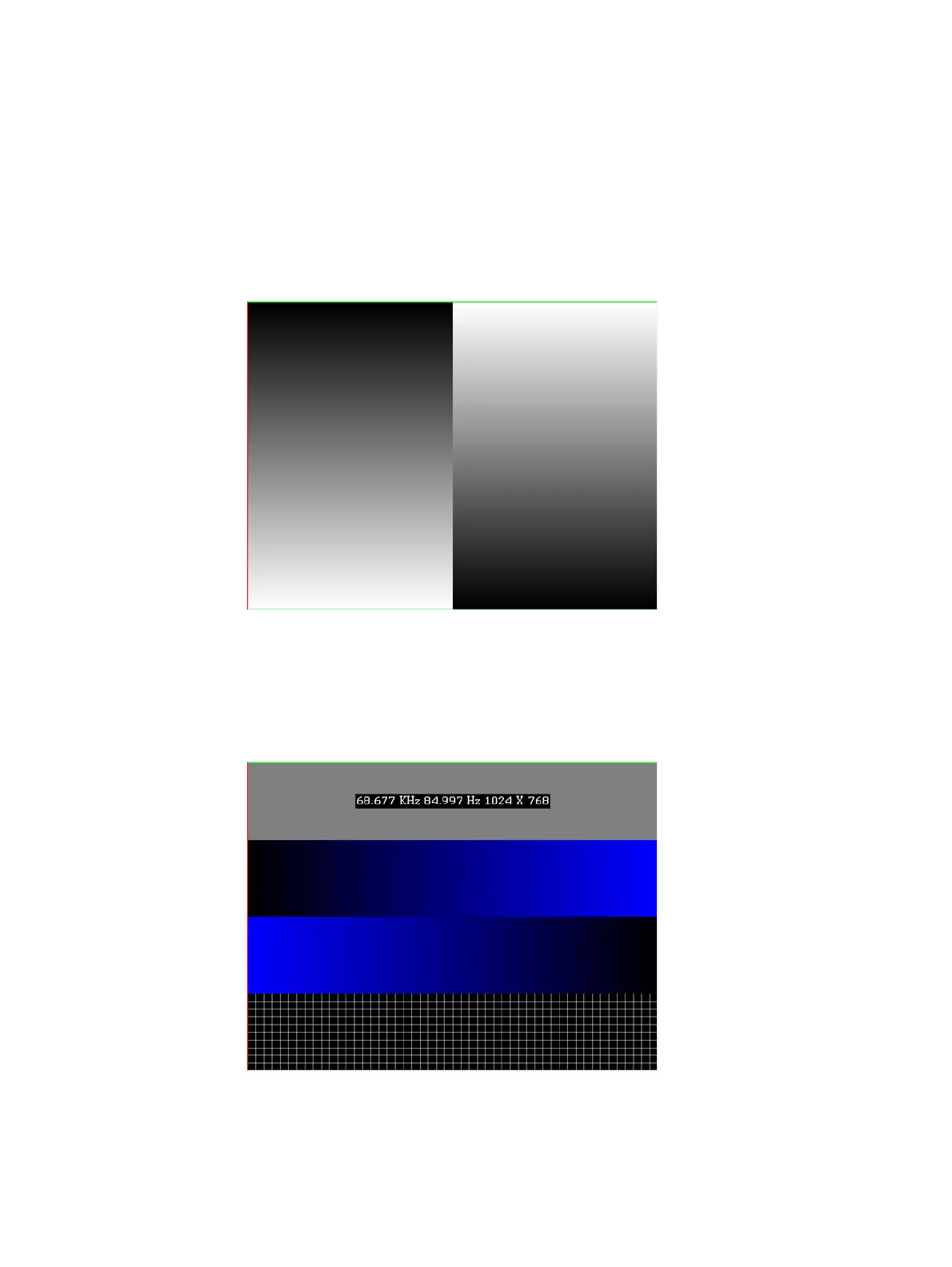

Description Special test image developed per customer specifications. The PgBar64H image is shown
below.
PgCB, PgCG, PgCR, PgCW, PgCWrgb
Description Special test image developed per customer specifications. Primary version of PgCB is
shown below. The secondary versions draw all white over the last bar.
