882 Video Test Instrument User Guide (Rev A.35) 557
TSPG
Tri-level Sync Pulse Gate
Class Format parameter setting - Synchronization

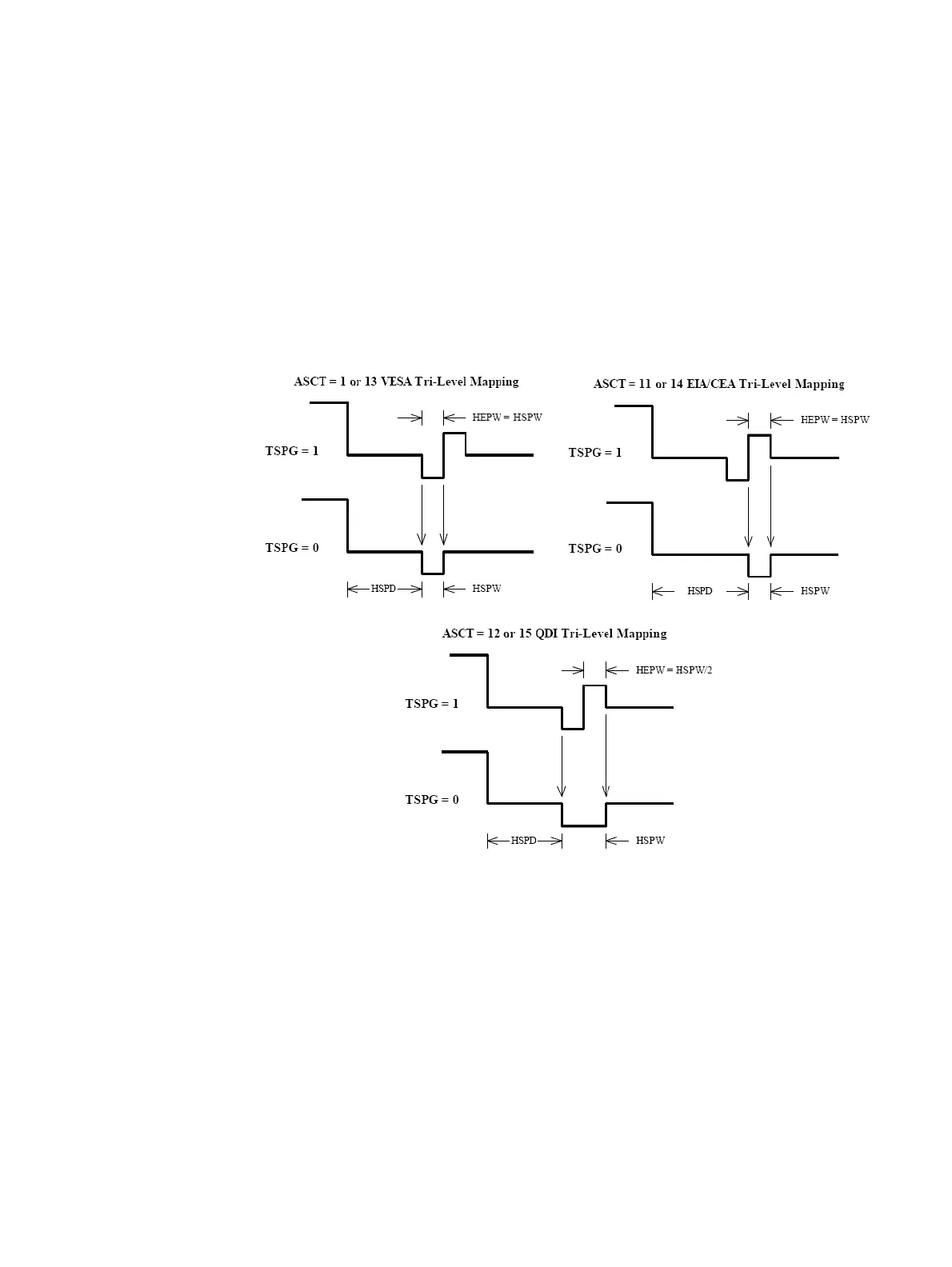

Description Enables and disables the tri-level sync pulse. This command affects only tri-level analog
composite sync types (ASCT = 1, 11, 12, 13, 14, or 15). The exact function of the TSPG
command depends on the analog sync composite type selected, as shown below.
Command syntax TSPG mode
mode
0 = OFF
1 = ON
Query syntax TSPG?
Query response mode
