882 Video Test Instrument User Guide (Rev A.35) 555
Acer3, Acer4, Acer5 and Acer6
Description Special test images developed per customer specifications. Consists of large and small
white circles centered on either a yellow (Acer3), magenta (Acer4), cyan (Acer5), or white

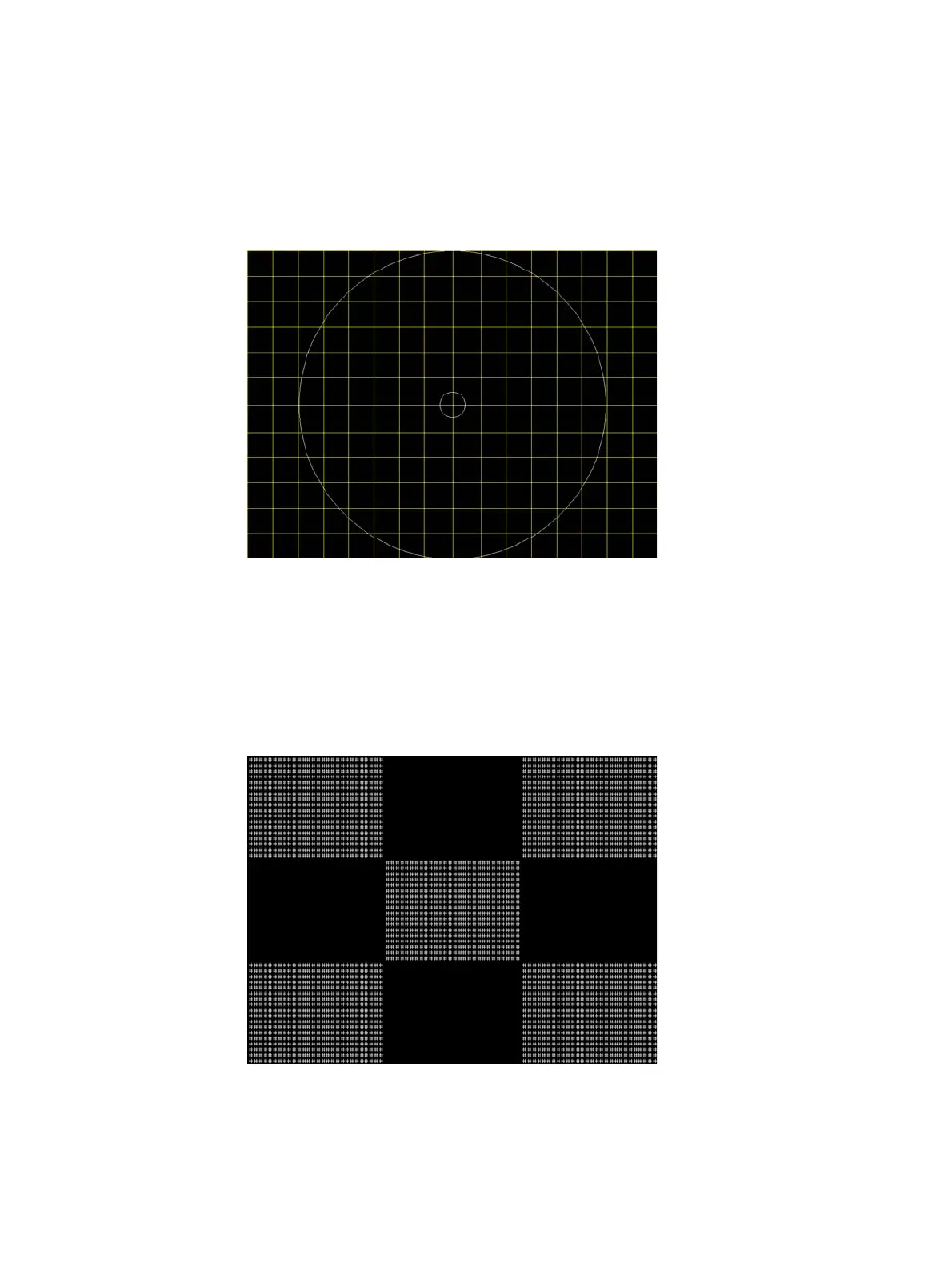

(Acer6) crosshatch on a black background. The Acer3 image is shown below.
Acer7 and Acer8
Description Special test image developed per customer specifications. In the primary version, five
blocks of either white “#” (Acer7) or “H” (Acer8) characters on a black background are
displayed. A secondary version displays black characters on a white background. The
Acer7 image is shown below.
