558 Appendix B Image Reference
Apple1

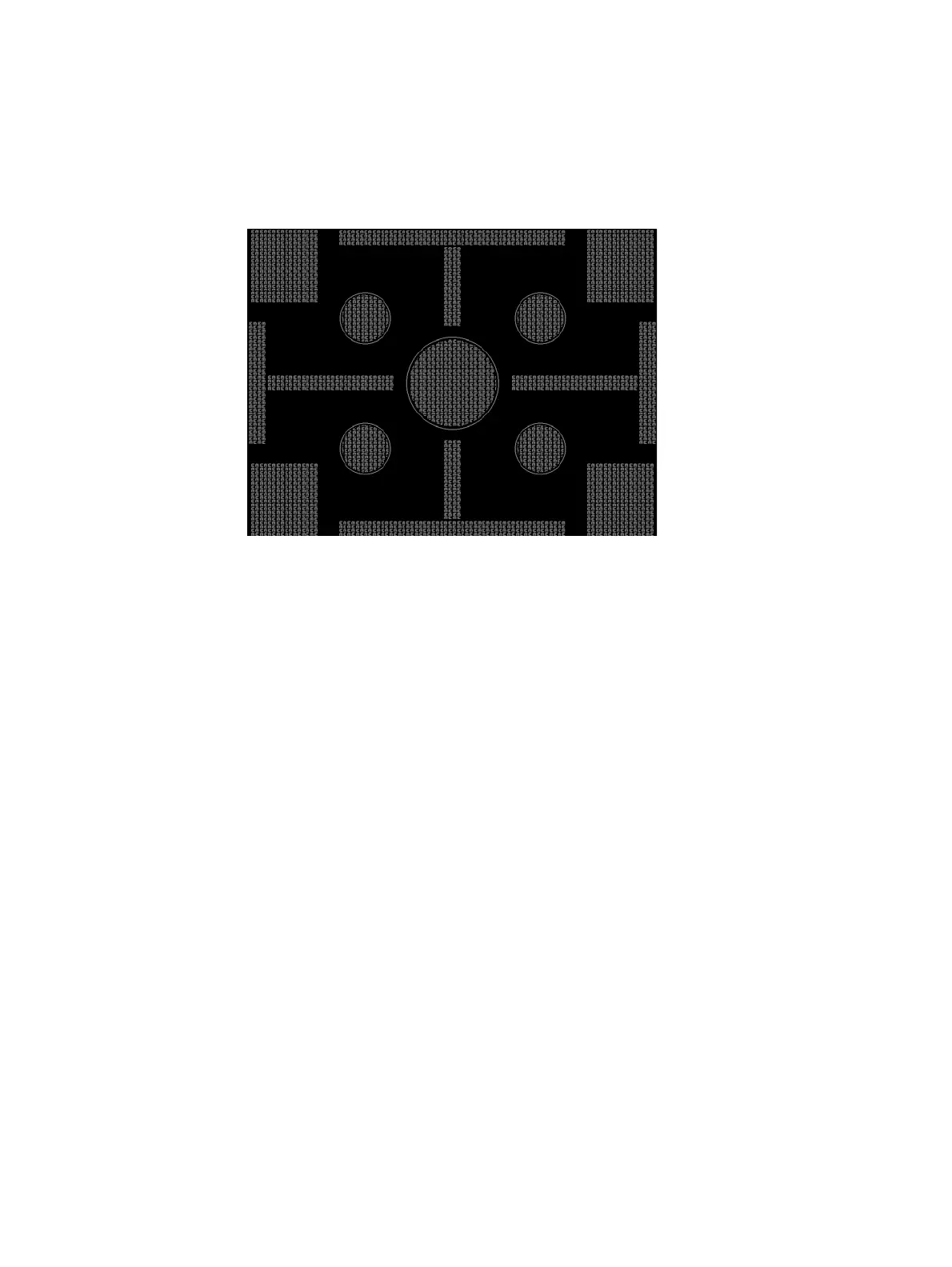

Description Special test image developed per customer specifications. A secondary version shows
reverse (black characters on white background).
Audio LR, AudioLRf, AudioRAT, Audio_L, Audio_Lf, Audio_R, Audio_Rf
Description Used to configure HDMI audio output signal. The AudioLR is shown below. For more
information, see “Testing HDMI audio” on page 295.
BarBlack
Description Special test image developed per customer specifications.
