QUICKIE ELECTRONICS SECTION
( fi g 2.23.14)
If using the Quickie iQ, select Monitor Parameter 10.
followed by selecting Brakes. (fi g 2.23.15)
Operate the wheelchair by moving the joystick slight forward. Observe the Brake Current and Brake Voltage. 11.
Refer to the following notes:
Move the joystick further forward, followed by moving it to the left, then right, then reverse. Refer to the fol-12.
The Rhythm and Groove use 12 VDC park brakes. Typical Brake Voltage is 11 VDC.•
The Brake Current should be approximately 0.5 amps. Typical values are between 0.4 amps and •
0.6 amps.
The Brake Voltage and Brake Current should remain constant. •
An increase in Brake Current or Brake Voltage indicates that the park brake is shorted to the motor •
windings.
lowing notes:

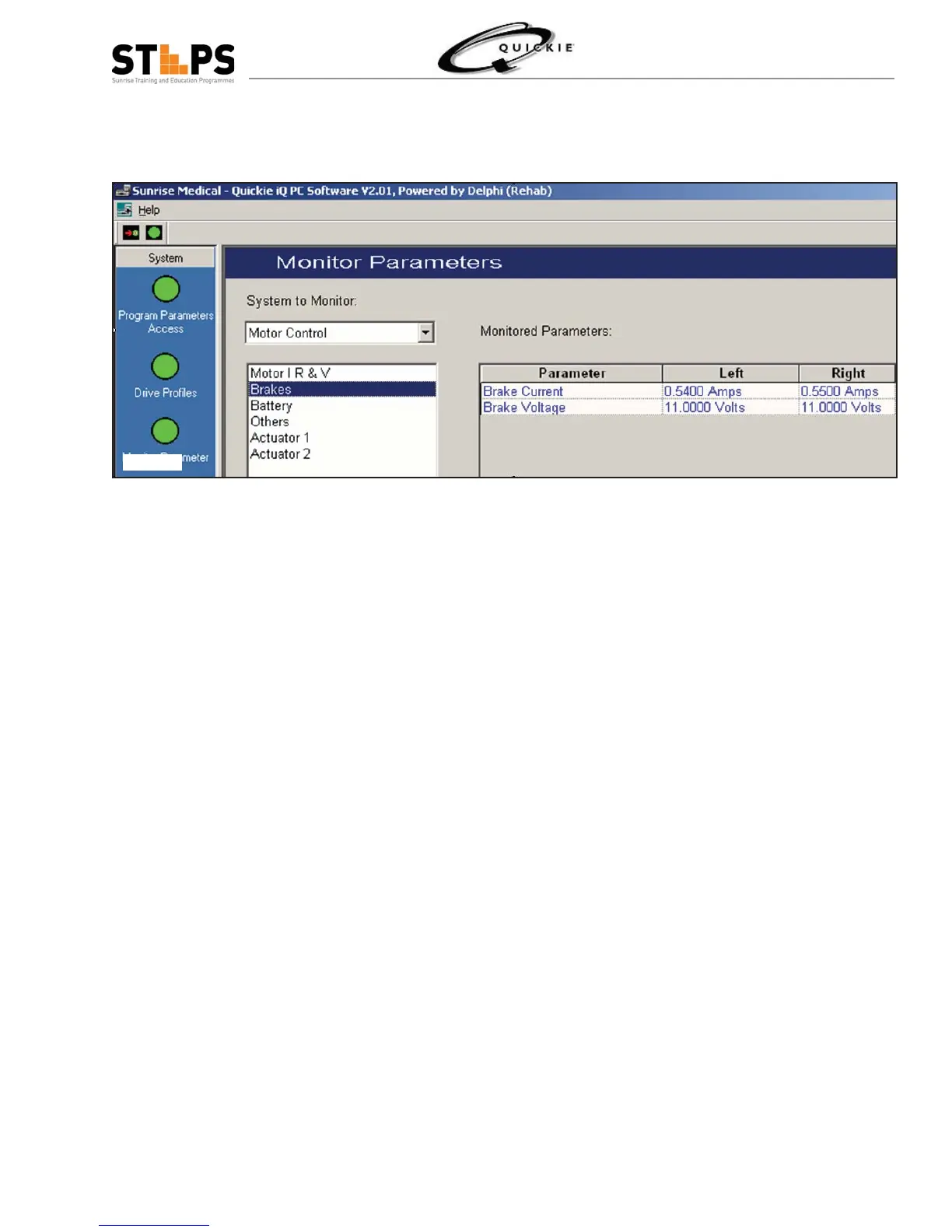

Fig 2.23.15
