Radwin 5000 Installation Guide

RADWIN 5000 Installaon Guide
August 2023
76


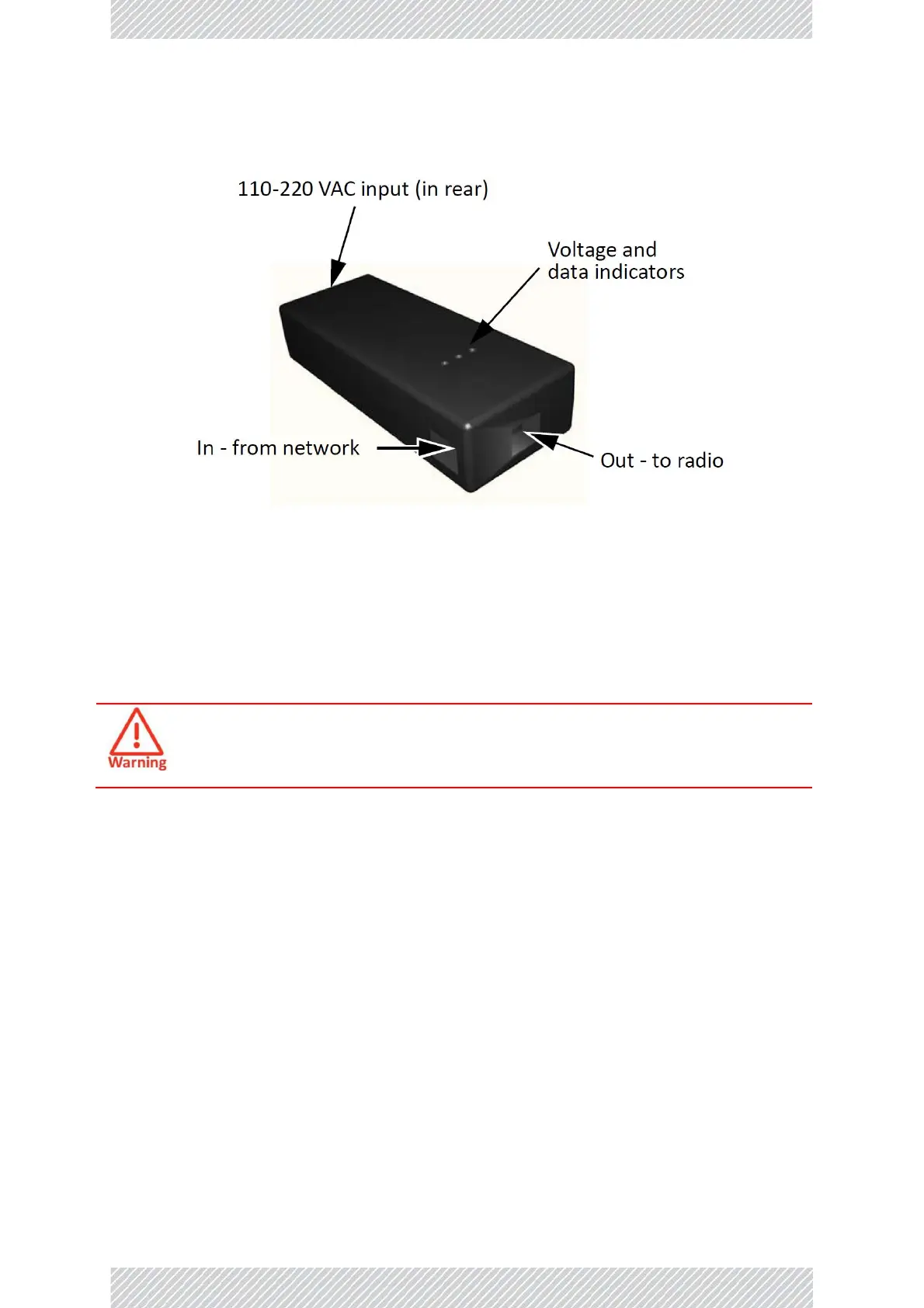

Figure 97: Indoor PoE connecons
1. Connect CAT‐5e cable from lower LPU to “Out” port.
2. Connect LAN cable to “In” port.
3. Connect power cable
Use only a safety approved PoE according to IEC/EN/UL 60950‐1 or 62368‐1 with
rated output voltage of 24‐56VDC and rated current of 1A max.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
