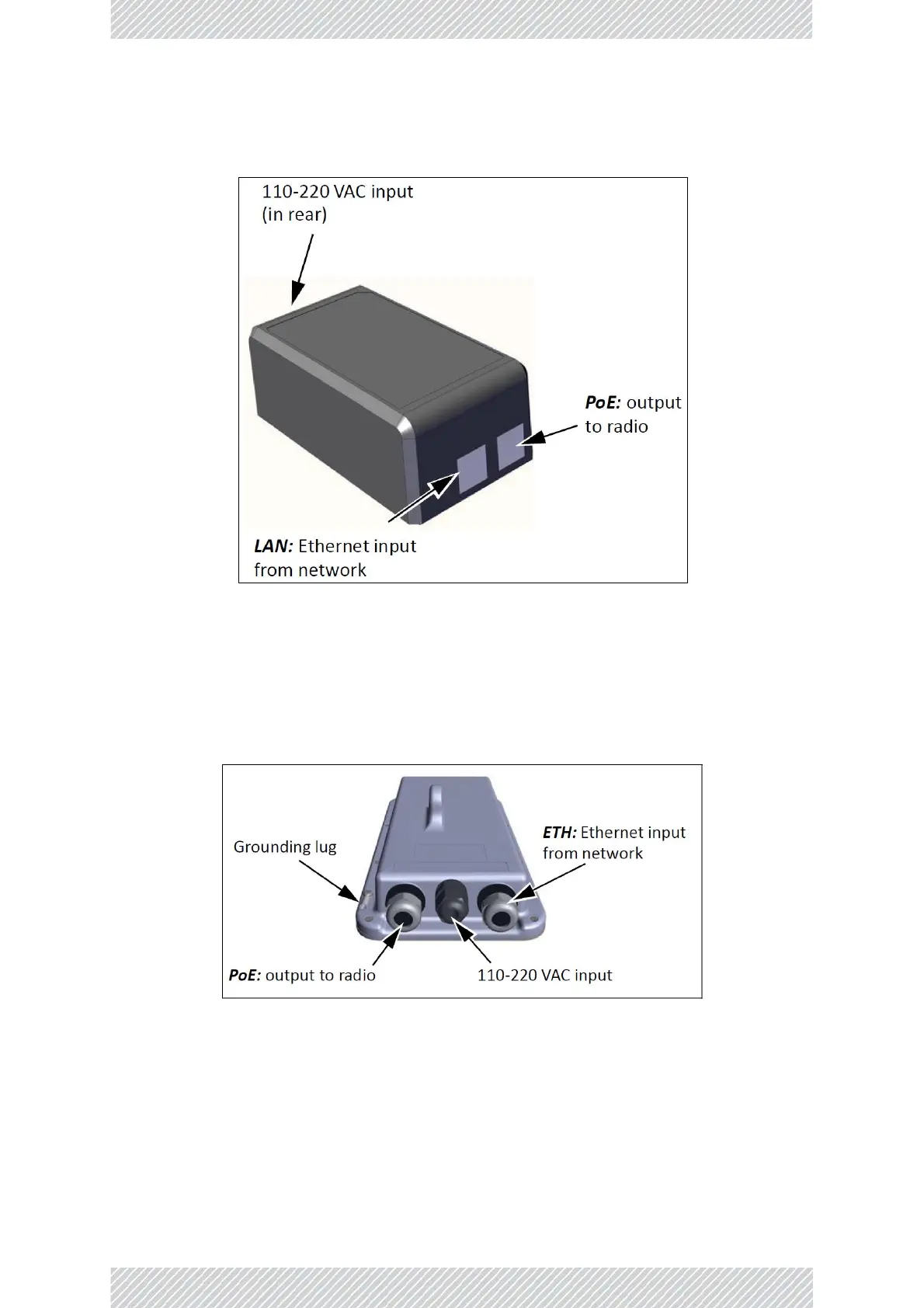

Figure 98: PoE for the SU PRO/AIR EMB
1. Connect CAT‐5e cable from radio via the lower LPU to the “PoE” port.
2. Connect LAN cable to “LAN” port.
3. Connect power cable.
Figure 99: Outdoor PoE
1. Connect ground cable.
2. Connect LAN cable from the network to the “ETH” port, fasten with cable gland, add tape (See
Waterproong on page 80).
