Radwin 5000 User Manual

RADWIN5000ConfigurationGuide Release4.9.17 4‐46
HSUConnectionTable ManagingtheSector
LicenseActivation
YoumayaddadditionalbandsorcapacityusingthelicenseActivationfacility.Additional
bands(ifavailable)areobtainedusingtheChangeBandfunction,describedbelow.Capacity
upgradeisdescribedinChapter11.
Forasingleband,justenterthesuppliedlicenseKeyandclickActivate.Ifyouhavealistof
them(atextfile)youwillneedtousetheLicenseFileoption.
InsomeinstancesitmayinvolvepurchasingtherelevantlicensefromRADWIN.Youshould
contactCustomerServicefordetails.
Youwillfindthetechnicalstepsrequiredtoobtainandinstallextrabandsonpage 4‐68.
4.3HSUConnectionTable

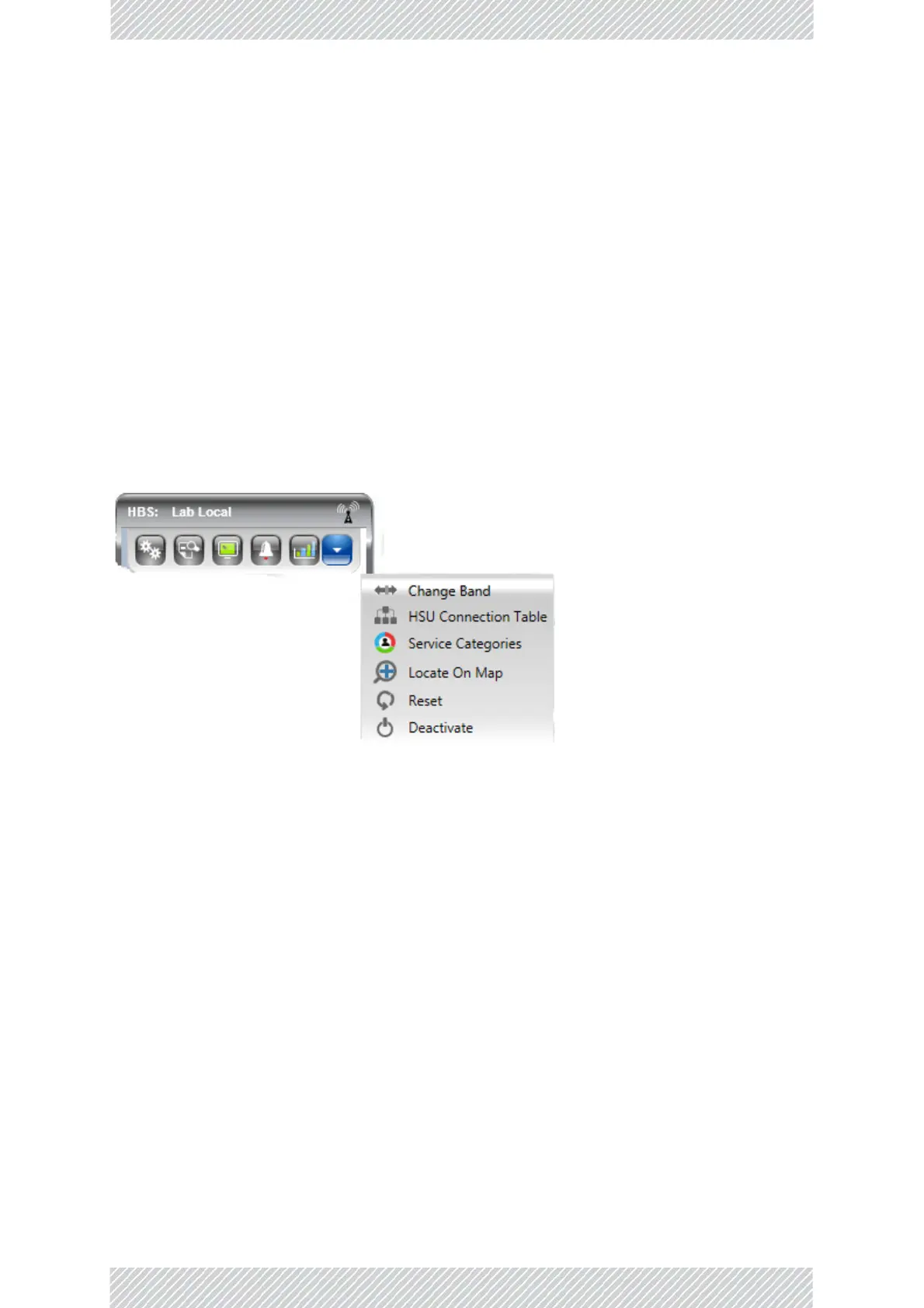

FromtheHBSbuttonbar,clicktherighthandbuttonfollowedbyHSUConnectionTable.
Thefollowingtableisdisplayed:

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
