RADWIN5000ConfigurationGuide Release4.9.17 2‐2
InstallingtheSoftware RADWINManagerOverview
• AnymodernWebbrowsertoviewadditionalmaterial,usetheWebInterfaceorget
helpfromtheRADWINWebsite.
2.2.2InstallingtheSoftware
AnyPCrunningtheRADWINManagerapplicationcanbeusedtoconfigureaRADWIN5000
HPMPsector.
 ToinstalltheRADWINManagerapplication:
• DownloadtheRADWINManagerapplicationfromthewebsite,andfollowthewizard’s
instructionstoinstalltheapplication.
2.3InitialConnectionandLogon
1. Checkthatyouhaveconnectivitytotheradio.Youcandothisbyopeningupa
commandlinesession(Start|Runandthentype,cmd).Atthecommandprompt,
type
ping 10.0.0.120
Youshouldseesomethinglikethis:

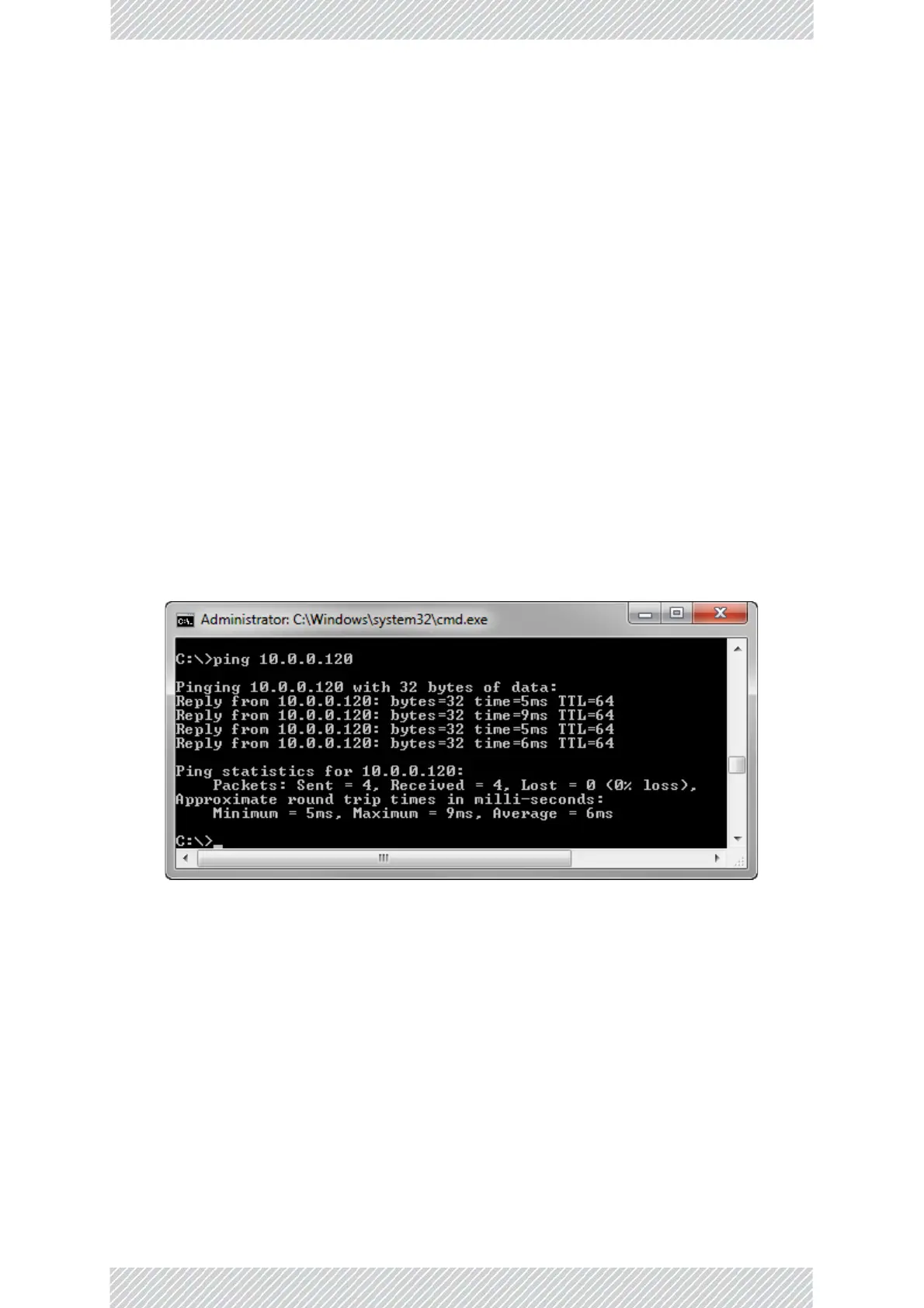

Figure2‐1:Pingingaradiounit
Anyotherresponsefrompingmeansthattheradioisnotconnectedproperly.You
cantr yeachoneofthesesteps,thenpingagain:
•CheckthatyouareusingthecorrectIPaddress
(itmayhavebeenchangedfromthedefaultvalueshownabove
•CheckyourEthernetconnection
•Checkthephysicalconnectionoftheradiointhefield
•Ifyoudonotsucceedusingthesesteps,seekassistancefromRADWINCus‐
tomerService.
2. Dismissthecommandlinesession.
