RADWIN5000ConfigurationGuide Release4.9.17 3‐14
ConfiguringafixedHSUFromtheHBS InstallingaSector

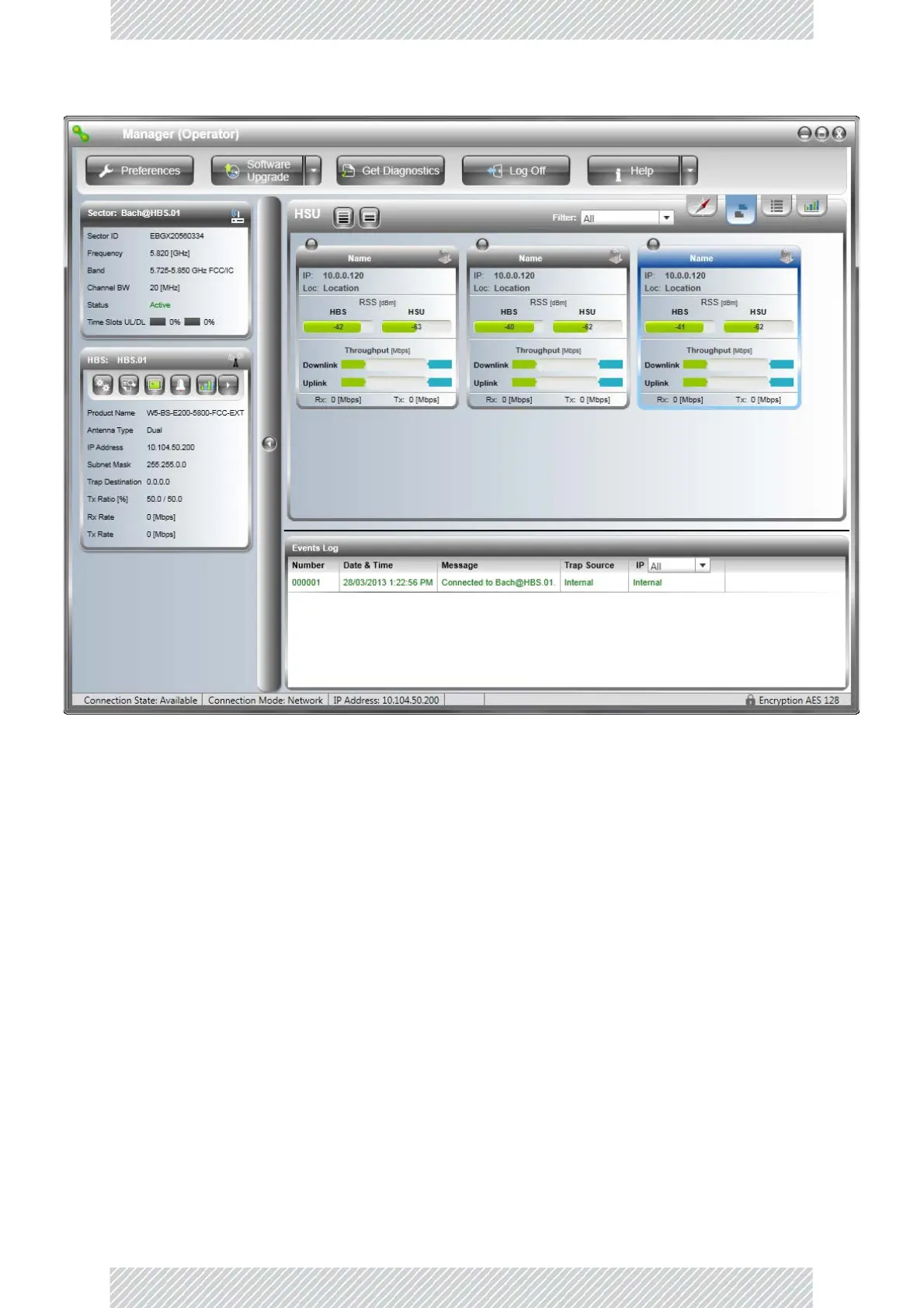

Figure3‐2:ActivatedHBSrecognizinginstalledbutunconfiguredHSUs
IftherearetoomanyHSUsfortheTableview,switchtothescrollableListview.
14. IfyouareusingLocalConnection,logoutandlogbackintotheHBSonitsIP
address.
Atthispoint,youareabletoconfiguretheHSUsforservice.
Youmayhav eobservedthatoperatingfrequency5.735GHzshown,isnotwhatwechose
(5.820GHz).TheHBStriestooptimizethefrequencytominimizeinterferenceeffects.
WenextconfigureandregistertheHSUs.ForfixedHSUsyoucandothisineitherorder.For
nomadicHSUsyoumustdefinetheHSUasNomadicpriortoregistration.Wewillshowthe
methodbelow.OurpreferenceistocarryoutconfigurationfirstforallHSUs.
3.7ConfiguringafixedHSUFromtheHBS
TheHSUactivitiesdescribedinthissection,maybecarriedoutanytime‐regardlessof
whetherornottheHSUisregisteredforserviceornot.Theseactivitiesincludeamongother
things,settingtheLocation,Contact,NameandIPaddress.
TheproceduresinthissectionshouldbecarriedoutforeachfixedHSUinthesector.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
